- Easy Network Expansion with N300 Wi-Fi
Highlights:
Multiple Operating Modes Supported
Supports Access Point, Range Extender, Client and Multi-SSID modes to provide a more dynamic and comprehensive experience for all the users. Multiple operating modes also help you easily build a wireless network for hard-to-wire locations to eliminate wireless dead zone.
Typical Applications
Access Point
Transform your existing wired network into a wireless network
Range Extender
Extend your existing wireless coverage by repeating the wireless signal
Client (Media Adapter)
Acting as a “Wireless Adapter” to connect your wired devices to a wireless network
Reliable Wi-Fi for Home Entertainment
With 2× 2 MIMO technology, TL-WA801N reaches speeds of up to 300 Mbps, the maximum speed available on a single 2.4 GHz band, working smoothly
with bandwidth-intensive tasks including VoIP, HD streaming, or online gaming—without lag. Its wall-mounting design helps you save space on your desk.
Passive PoE for More Flexible Deployment
TL-WA801N can be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP is located, even up to 100 feet away. The AP can be placed anywhere flexibly, making it incredibly easy to find the best location for optimum signal reception.
Features
Ease of Use
Intuitive Web UI – Ensures quick and simple installation without hassle.
Power On/Off – Conveniently power on or off your router as required.
Passive PoE – Supplies power along the Ethernet cable to allow flexible installation without the need of a power outlet.
Reliability
Multi-Mode – Supports Access Point, Range Extender, Client and Multi-SSID (VLAN supported) modes to meet any network need.
MAC Filtering – Enables or disables device access based on MAC address.
Security
Security – Protects your home network with WPA2 encryption.
WPS – Makes secure wireless connection quick and easy with the push of a button.
Throughput Monitor – Displays real-time access to wireless data transmission.
Specifications
Hardware

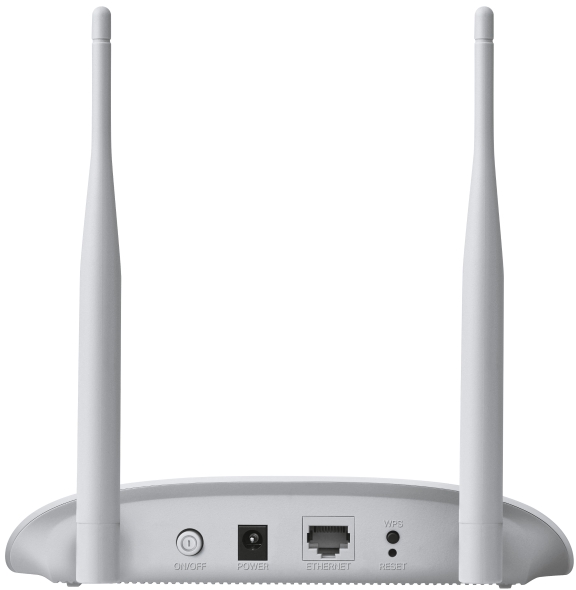

Ethernet Port:
- 1 10/100Mbps Ethernet Port (Supports Passvice PoE)
Buttons:
- Power On/Off Button, WPS Button, RESET Button
Antennas:

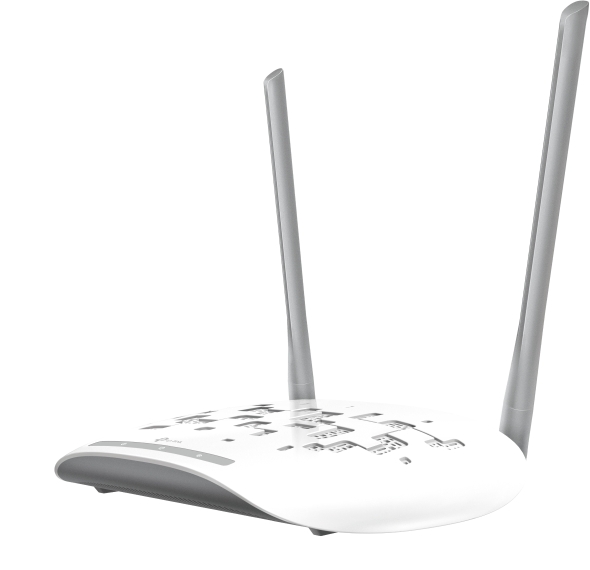

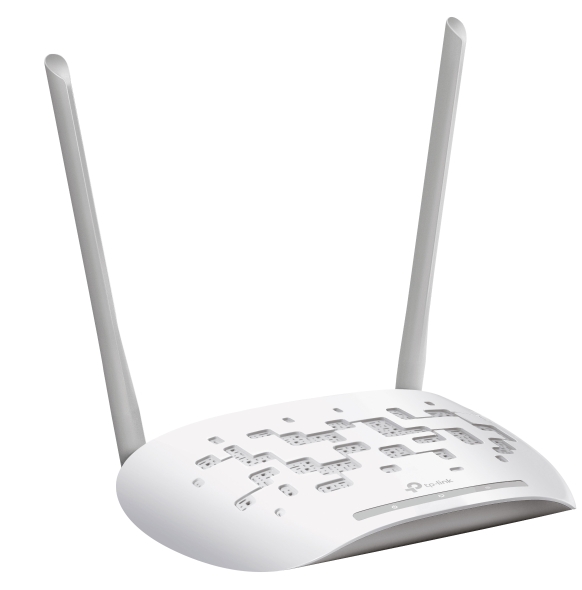

- 2 Fixed Omni-Directional Antennas
External Power Supply:
- 9VDC/0.6A
Dimensions
- (W x D x H): 7.1×5.1×1.4
- in (181.6×129.5×36.2mm)
Wireless
Wireless Standards:
- IEEE 802.11b/g/n
Frequency:
- 2.4GHz
Signal Rate:
- 300Mbps at 2.4GHz
Transmit Power:
- CE: <15dBm; FCC: <20dBm
Reception Sensitivity:
- 11g 6Mbps: -90dBm
- 11g 54Mbps: -77dBm
- 11n HT20 MC7: -73dBm
- 11n HT40 MC7: -70dBm
Wireless Function:
- Enable/Disable Wireless Radio, WMM, Short GI,
- APIsolation, Wireless Statistics, Throughput Monitor
Wireless Security:
- WEP, WPA/WPA2, WPA/WPA2-PSK encryptions
Specifications
Software
Quality of Service:
- WMM
DHCP:
- DHCP Server, DHCP Client List, Address Reservation, Address Lease Time
Wireless Modes:
- Access Point, Range Extender, Client, Multi-SSID
WPS:
- Software WPS Button, Client’s PIN, Router’s PIN
System Tools:
- SNMP, Ping Watch Dog, Time Settings, Diagnostic, Firmware Upgrade, Backup & Restore, System Log
Others
Certification:
- CE, FCC, RoHS
System Requirements:
- Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
- Java-enabled browser
- Cable or DSL Modem
- Subscription with an Internet Service Provider (for Internet access)
Environment:
Operating Temperature:
- 0°C~40°C (32°F ~104°F)
Storage Temperature:
- -40°C~70°C (-40°F ~158°F)
Operating Humidity:
- 10%~90% RH
Storage Humidity:
- 5%~90% RH
Package Contents:
- Wireless Access Point TL-WA801N
- Power Adapter
- Passive PoE Power Injector
- RJ45 Ethernet Cable
- Quick Installation Guide
