Overview

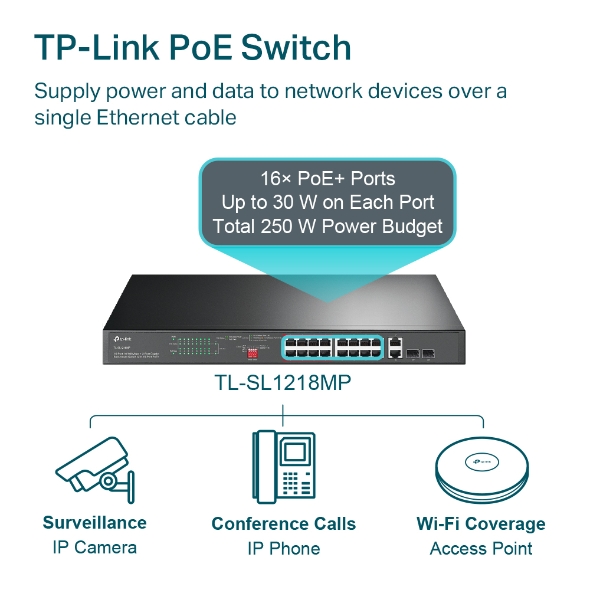

TP-Link’s new PoE/PoE+ switches with all 10/100 Mbps RJ45 ports supporting the PoE+ standard provides a simple way to expand the wired network while transferring power over the same ethernet cable at the same time. With up to 30 W* per port, the switch can power more high-powered devices such as Access Points, IP Cameras, IP Phones and so on. Moreover, with innovative Extend Mode, devices can get PoE power supply and data transmission from a distance of 250 m**. Priority mode ensures high priority for port 1–8, which guarantees the quality of sensitive applications. Moreover, the switch supports Isolation Mode that divides traffic for 10/100 Mbps RJ45 ports for higher security and performance
Power over Ethernet
• (For TL-SL1218P) Features 16 802.3af/at compliant PoE+ ports, with a total PoE power budget of 150 W*
• (For TL-SL1218MP/TL-SL1226P) Features 16/24 802.3af/at compliant PoE+ ports, with a total PoE power budget of 250 W*
• Flexible deployment for PoE supported devices such as wireless access points, IP Phones and IP Cameras
• Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs
Highlight Performance
• Up to 250 m PoE power supply and data transmission under Extend Mode**.
• After turning on the Priority Mode, there will be designated high priority ports for quality-sensitive application like Surveillance Video.
• Isolation Mode easily divides traffic for 10/100 Mbps RJ45 ports to avoid snooping and tampering,
Easy to Use
• Plug & play, no configuration required
• Auto MDI/MDIX eliminates the need for crossover cables
• Auto-negotiation intelligently adjusts for compatibility and optimal performance
Specifications
General Interfaces
- 16 10/100 Mbps RJ45 Ports
- 2 10/100/1000 Mbps RJ45 Ports
- 2 Combo Gigabit SFP Slots
PoE
PoE Standard
- 802.3af/at
PoE Power Budget
- 250 W
Performance
Switching Capacity
- 7.2 Gbps
Packet Forwarding Rate
- 5.36 Mpps
MAC Address Table
- 8 K
Packet butter
- 4.1 Mbit
Jumbo Frame
- 10 KB
Advanced Features
- Extend Mode (Up to 250 m PoE supply and data transimission)
- Priority Mode
- Isolation Mode
Physical &Environment
Power Supply
- 100–240 V AC, 50/60 Hz
Max Power Consumption
- 285.8 W (with 250 W PD Connected)
- 14.97 W (no PD Connected)
Dimensions
- (W × D × H) 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Fan Quantity
- 2
Operating Temperature
- 0 °C–50 °C (32 °F–122 °F)
Storage Temperature
- -40 °C–70 °C (-40 °F–158 °F)
Operating Humidity
- 10%–90%RH non-condensing
Storage Humidity
- 5%–90%RH non-condensing
