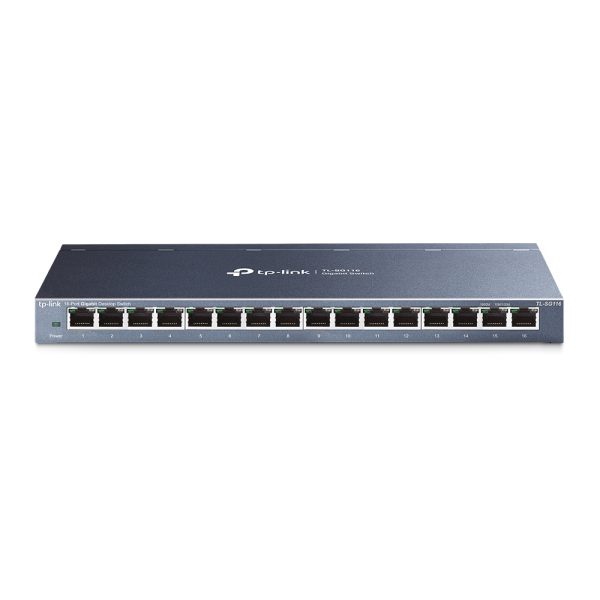

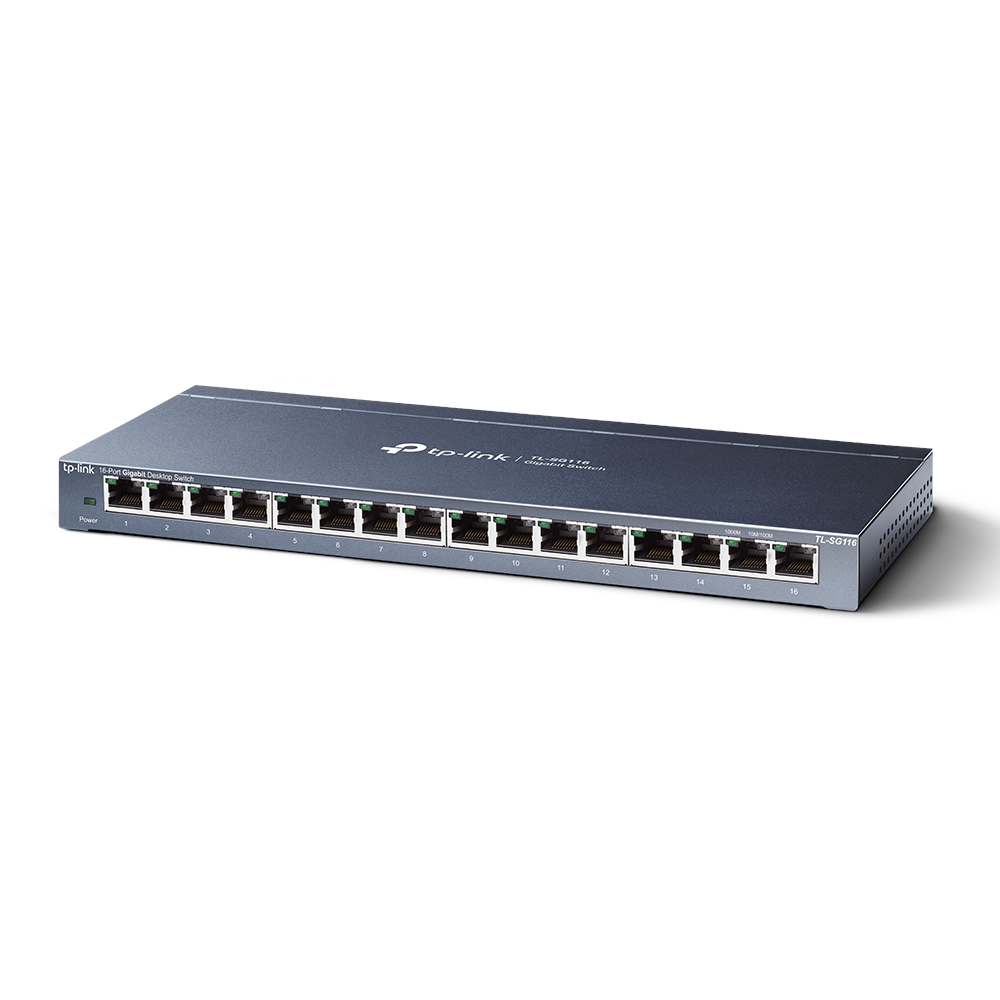

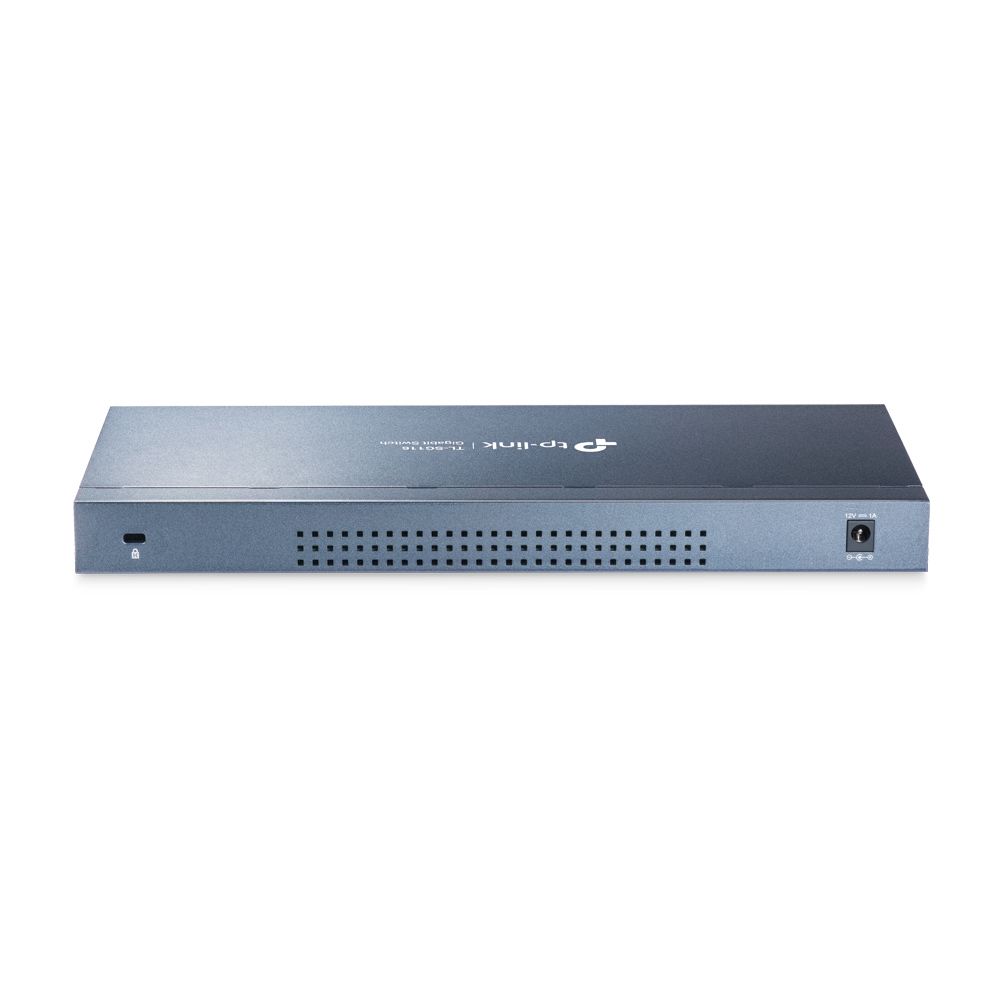

The TL-SG116 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.
Features
Gigabit Switch
- Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
- You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
- 802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
- The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
Technical Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3i
- IEEE802.3u
- IEEE802.3ab
- IEEE802.3x
- IEEE802.1p
Interface
- 16 × 10/100/1000Mbps Ports Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
- Fanless
Physical Security Lock
- Yes
External Power Supply
- External Power Adapter 100VAC ~ 240VAC (Output: 12VDC / 1.0A)
LED Indicator
- System Power
- Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )
- 11.3 × 4.4 × 1.0 in. (286 × 112 × 25 mm)
Max Power Consumption
- 10W
Max Heat Dissipation
- 34.1 BTU/h
Performance
Packet Forwarding Rate
- 23.8Mpps
MAC Address Table
- 8K
Jumbo Frame
- 10KB
Packet Buffer Memory
- 4.1Mb
Software Features
Advanced Features
- Green Technology
- 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
Transfer Method
- Store-and-Forward
Others
Certification
- FCC
- RoHs

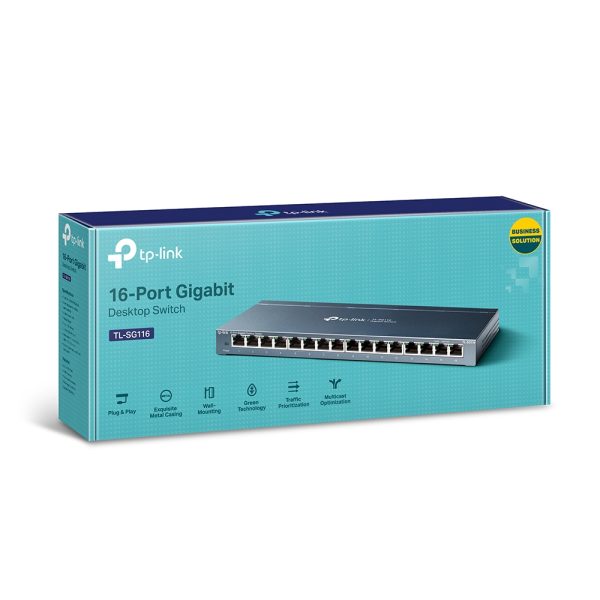

Package Contents
- 16-Port 10/100/1000Mbps Desktop Switch
- Power Adapter
- Installation Guide
- Rubber Feet
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90%, non-condensing
- Storage Humidity: 5%~90% non-condensing
