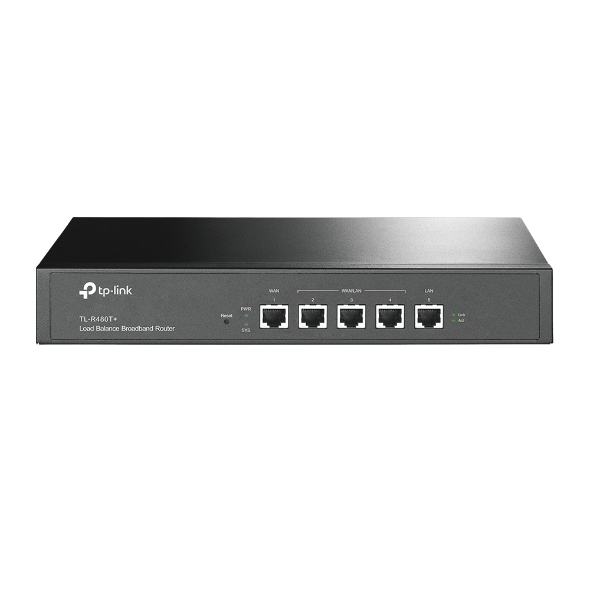

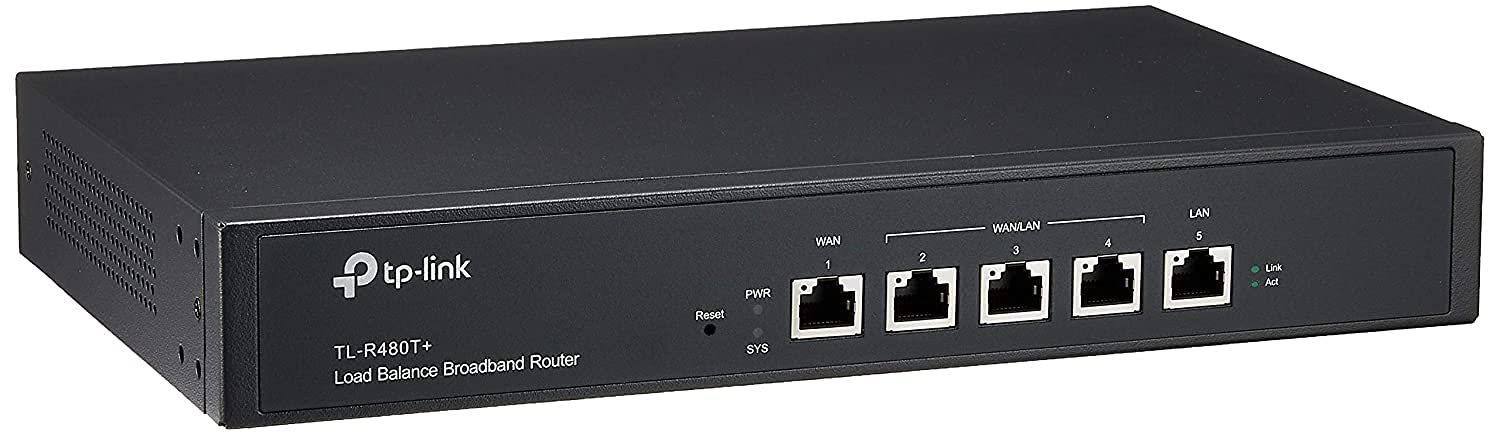

The TL-R480T+ load balance broadband router is a wise choice for small business. It brings you high return on investment with low overhead. Featured with three changeable WAN/LAN ports, TL-R480T+ supports up to 4 WAN ports, which can satisfy various Internet access requirements through one device. TL-R480T+ integrates multiple load balancing strategies, advanced QoS and strong firewall provide you with consistent network uptime and reliable Internet connectivity. Moreover, it is easy to manage the TL-R480T+ via a web browser, which makes building and managing your network more convenient.
Features
Three Changeable WAN/LAN Ports
- The TL-R480T+ features three changeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.
Abundant Security Features
- For defense against external threats, TL-R480T+ can automatically detect and block Denial of services (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death and other related threats. Moreover, this router provides IP/MAC/URL/Web filtering functions, which forcefully prevent attacks from intruders and viruses. For better management of the internal network, TL-R480T+ allows administrators to set rules to block specific web sites and IM/P2P applications with just one click, and restrict staff to use specific services such as FTP, HTTP, and SMTP.
Efficient Access Management
- Web portal authentication inspects and allows all connecting sessions whether from wire or wireless. When the access control works together with IP-based bandwidth control, you can configure the dedicated bandwidth for certain account.
Safety Minded Enterprise Investments
- Professional lightning protection technology2 is designed to prevent electrical surges from penetrating the interior of the device, to be discharged harmlessly into the Earth. This router is designed to prevent lightning damage of up to 4KV in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of Mother Nature’s more violent elements.
Technical Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS
Interface
- 1 Fixed 10/100 Ethernet WAN Port
- 1 Fixed 10/100 Ethernet LAN Port
- 3 Changeable 10/100 Ethernet WAN/LAN Ports
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100m)
Button
- Reset Button
Power Supply
- Internal Universal Power Supply
- AC100-240V~50/60Hz input
Flash
- 16MB
DRAM
- 128MB
LED
- PWR
- SYS
- WAN
- LAN
- WAN/LAN
Dimensions ( W x D x H )
- 11.6 x 7.1 x 1.7in.(294 x 180 x 44mm)
- 13-inch / 19-inch Standard Rack-Mount Width, 1U Height
Performance
Concurrent Session
- 30K
Basic Functions
WAN Connection Type
- Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable
MAC Clone
- Modify WAN/LAN MAC Address
DHCP
- DHCP Server/Client, DHCP Address Reservation
Switch Setting
- Port Mirror, Rate Control, Port Configuration, Port VLAN
Advanced Fucntions
ACL
- IP/MAC/URL/WEB Filtering
IGMP
- IGMP Proxy/IGMP Snooping
Forwarding
- Virtual Server, Port Triggering, DMZ
Load Balance
- Policy Routing
- Link Backup
NAT
- One-to-One NAT, Multi-Nets NAT
Routing
- Static Routing
Security
- FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death
- Traffic Control Bandwidth Control, Session Limit
Management
Service
- Dynamic DNS, UPnP
Maintenance
- System Time Setting
- Daylight Saving Time
- SNMP
- Diagnostics
- Firmware Upgrade
- Factory Defaults/Reboot
- Backup/Restore
- System Log
- Remote Management
Statistics
Others
Certification
- FCC
- RoHS
Package Contents
- TL-R480T+
- Power Cord
- RJ-45 Ethernet Cable
- Installation Guide
- Rack-mount Kit
Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
