TL-MR3020 delivers speeds of up to 300Mbps, meeting high-demand networking needs such as HD streaming, online gaming, and downloading large files. This super-compact device delivers reliable Wi-Fi connections for up to 32 wireless devices-like tablets, laptops, and phones- simultaneously, perfectly meeting needs of internet sharing in a business conference or parties at home. A minuscule bank card-size design fits in your pocket deliver high-speed internet access during family vacations, long road trips, or when traveling for work. TL-MR3020 is field-tested to be compatible with 120+ LTE/HSPA+/HSPA/UMTS/EVDO 3G/4G USB modems, ensuring fast and stable internet connections wherever you are.
Features
- Travel router with 34/4G function
- Travel-sized design
- Connect up tp 32 devices simultaneously
- Flexible power supply
Technical Specifications
HARDWARE FEATURES
Interface

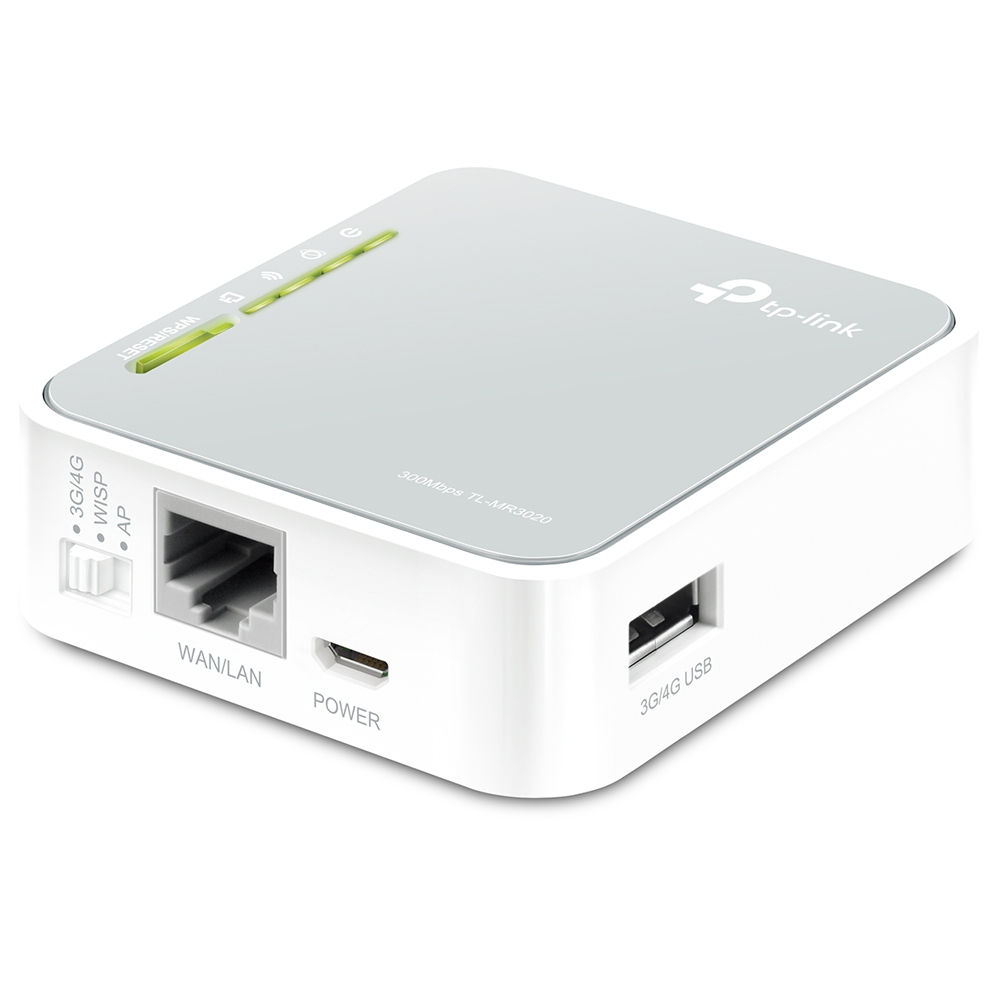

- 1 10/100Mbps WAN/LAN Port, USB 2.0 Port for 3G/4G modem, a micro
- USB Port for power supply.
Button
- Reset Button, Mode Switch
Dimensions ( W x D x H )
- 2.9 x 2.6 x 0.9 in. (74 x 67 x22 mm)
Antenna Type
- Internal Antenna
WIRELESS FEATURES
Wireless Standards
- IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
- 2.4-2.4835GHz
Transmit Power
- <20dBm
Wireless Modes
- 3G Router, Travel Router (AP), WISP Client Router
Wireless Security
- Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering
SOFTWARE FEATURES
Security
- Firewall, MAC filtering, Denial of Service (DoS)
DHCP
- Server, DHCP Client List, Address Reservation
Port Forwarding
- Virtual Server, Port Triggering, DMZ, UPnP
Access Control
- Parental Control, Host List, Access Schedule, Rule Management
OTHERS
Certification
- CE, FCC, RoHS
Package Contents
- TL-MR3020 router
- QIG
- USB Cable
- Ethernet Cable
System Requirements
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, 10, MAC® OS, NetWare®, UNIX® or Linux.
Environment
- Operating temperature:-10℃~60℃
- Storage Temperature: -40℃~80℃
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
