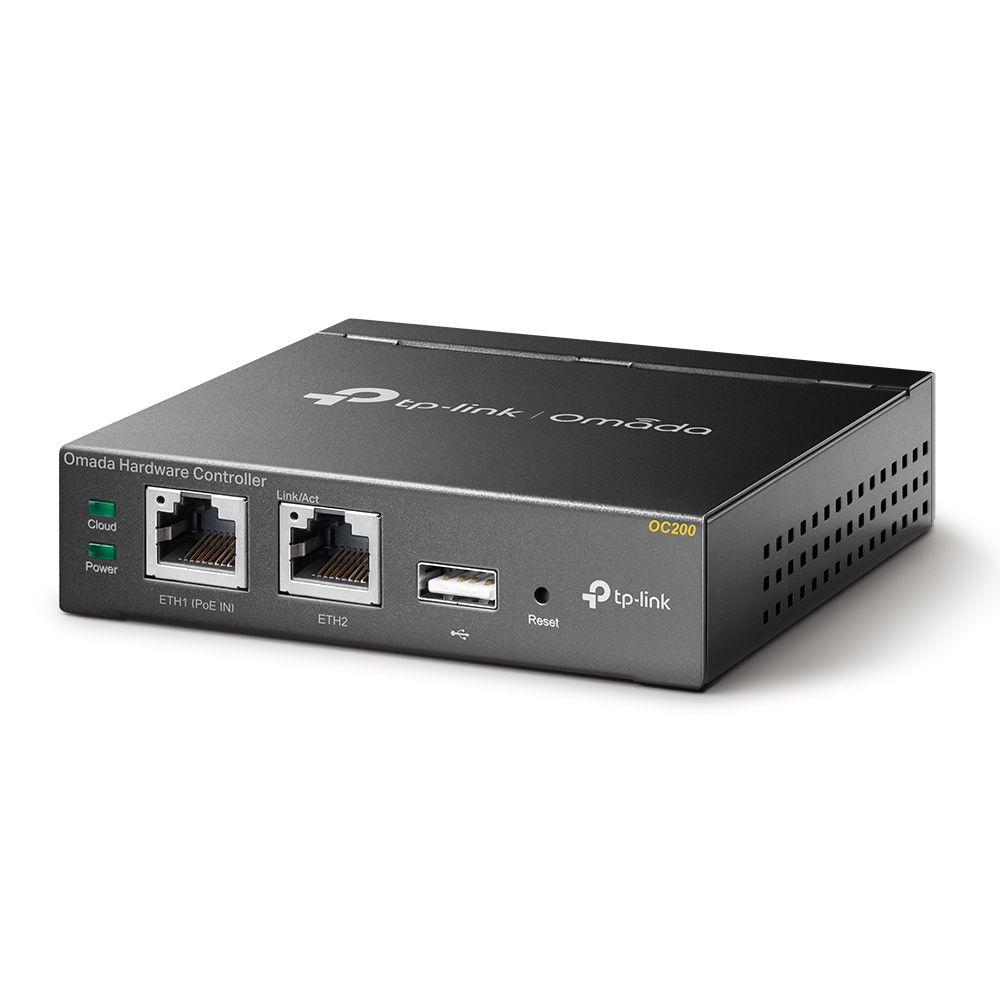

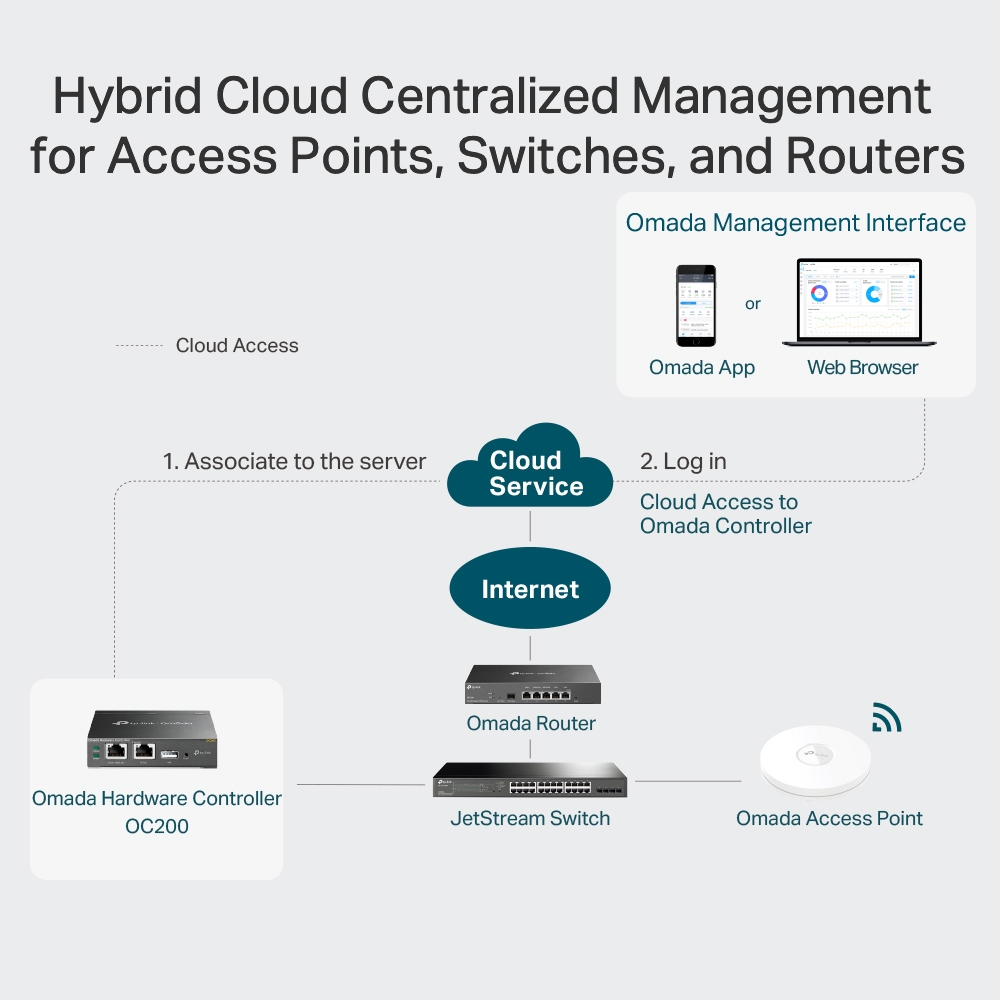

OC200, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, JetStream switches, and Omada routers—all controlled from a single interface. The Omada Hardware Controller OC200 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.
Features
Main design
Processor
- Dual-Core A53 @ 1.2 GHz
Memory Information
- 1 GB DDR3
Storage
- 1MB Nor Flash; 4 GB eMMC
RJ45 Port
- 2 10/100 Mbps Ethernet Ports
USB Port
- 1 USB 2.0 Port;
- 1 Micro-USB Port
Maximum Power Consumption
- 11.3 W (powered by a PoE device, with USB 2.0 connected)
- 4.3 W (powered via Micro-USB port, no USB 2.0 connected)
Maximum Number of Sites
- 100
Maximum Number of Accounts
- 1000
Maximum Number Of Local Accounts
- 500
Maximum Number of Cloud Accounts
- 500
Maximum Number of Vouchers
- 50.00
Maximum Number of Local Users
- 50.00
Maximum Number of WLAN Groups
- 500
Maximum Number of SSIDs
16 in each site
Maximum Number of Free Authentication
- 32 in each site
Maximum Number of Pre-Authentication Access
- 32 in each site
Maximum Number of Authentication Free Policy
- 96 in each site
Maximum Number of Reboot Schedule
- 8 in each site
Maximum Number of PoE Schedule
- 8 in each site
Maximum Number of MAC Filter Groups
- 8 in each site
Maximum Number of MAC Addresses in Each MAC Filter Group
- 500 (4,000 in total per controller)
Maximum Number of VPN
- 64 in each site
Maximum Number of Static Routing
- 64 in each site
Maximum Number of Policy Routing
- 64 in each sit

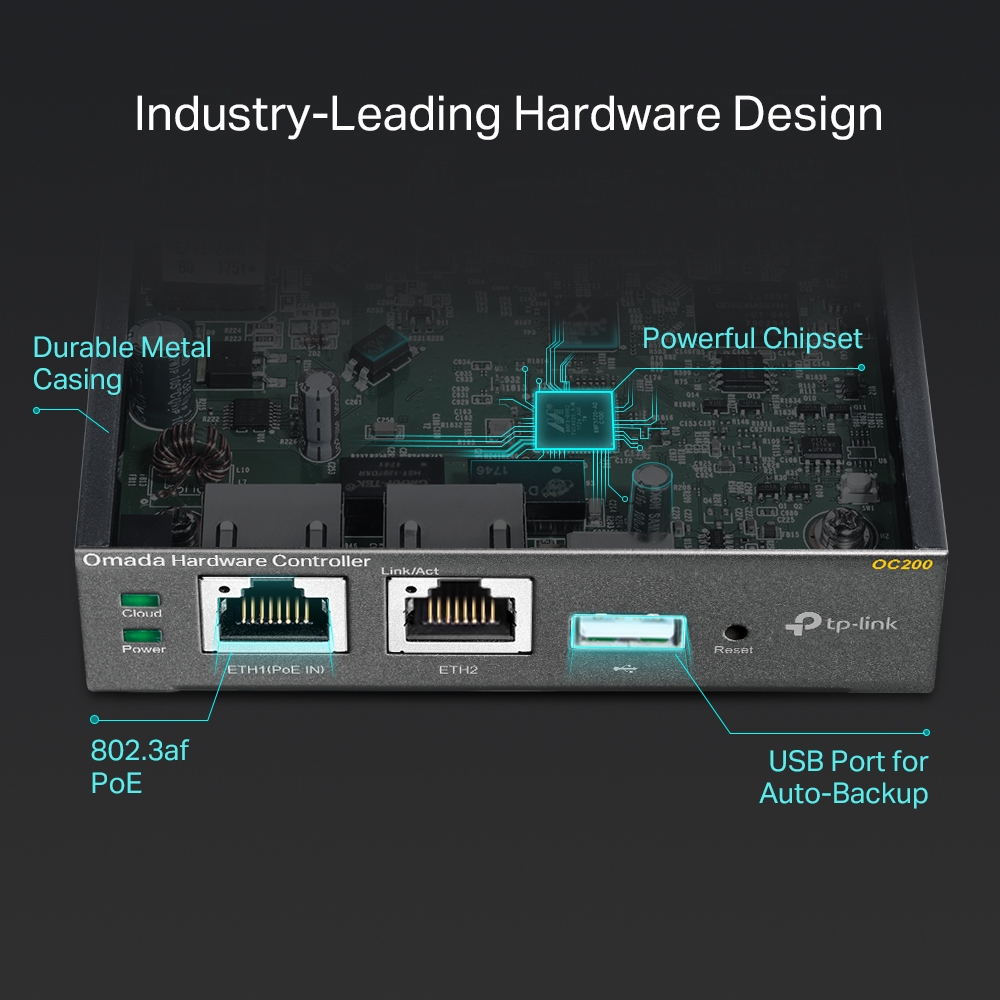

Hardware Features

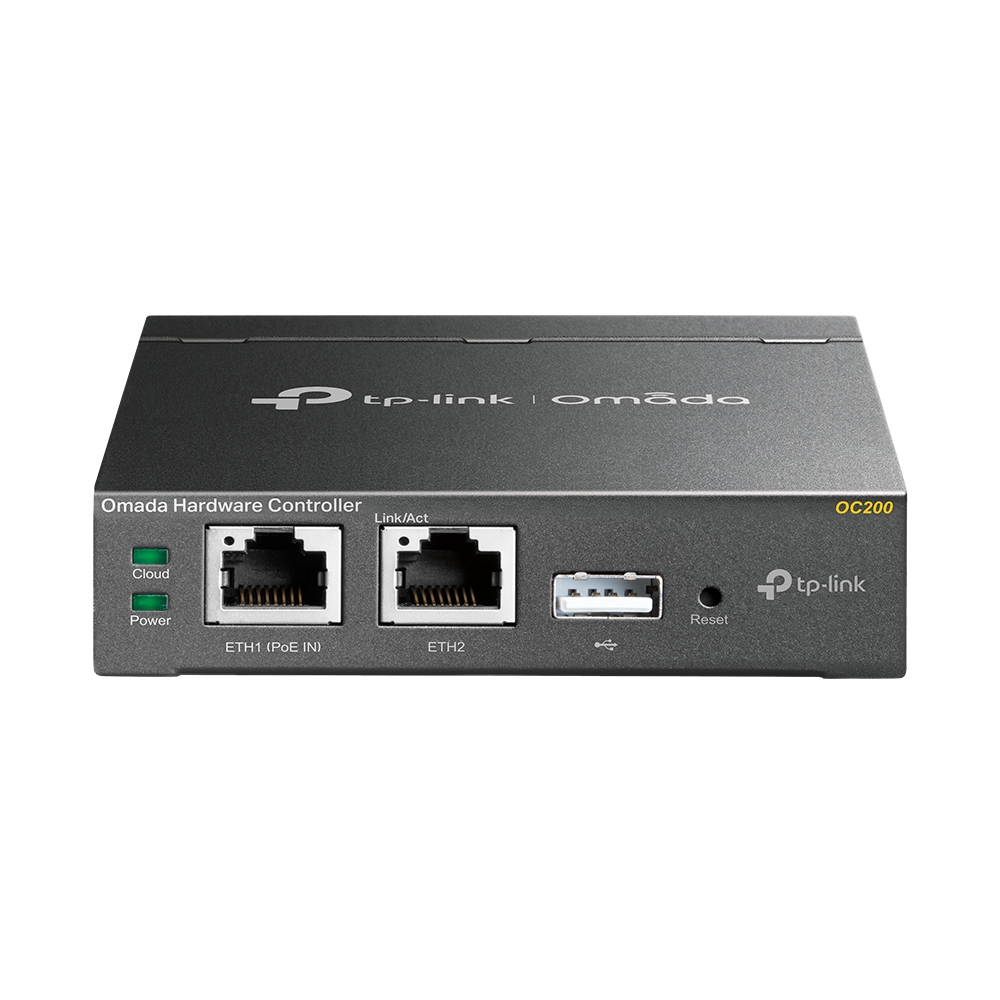

Interface
- 2 × 10/100Mbps Ethernet Port
- 1 × USB 2.0 Port for configuration backup

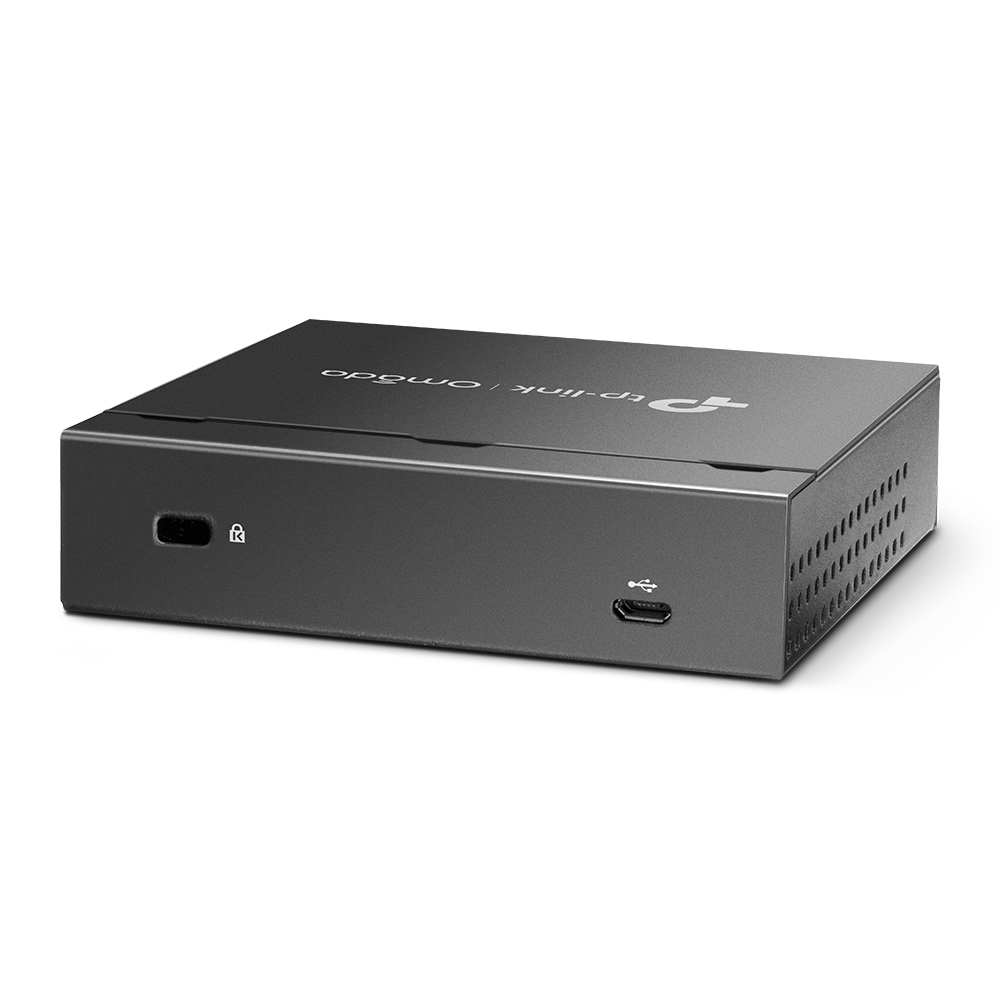

- 1 × Micro USB Port for power
Power Supply
- 802.3af/at PoE or Micro USB（DC 5V/1A）
Dimensions
- 3.9 × 3.9 × 1.0in. (100 × 98 × 25mm)
MANAGEMENT
Omada App
- Yes
Centralized Management
- Up to 100 Omada access points, switches, and routers
Cloud Access
- Yes
L3 Management
- Yes
Multi-site Management
- Yes
Management Features
- Automatic device discovery
- Batch configuration
- Batch firmware upgrading
- Intelligent network monitoring
- Event logs and notifications
- Unified configuration
- Reboot schedule
- Captive portal authentication
OTHERS
Certification
- FCC, RoHS
Package Contents
- Omada Hardware Controller OC200
- Quick Installation Guide
- Ethernet Cable
System Requirements
- Internet
Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
