FEATURES

• Six Port RJ45 modules applied.
• ID stripes for identifying port allocations.
• IDC: suitable for 22-26 AWG stranded and solid wire.
• Compatible with both 110& Krone punch down tools.
• Improved Cable Management with optional cable management bar.

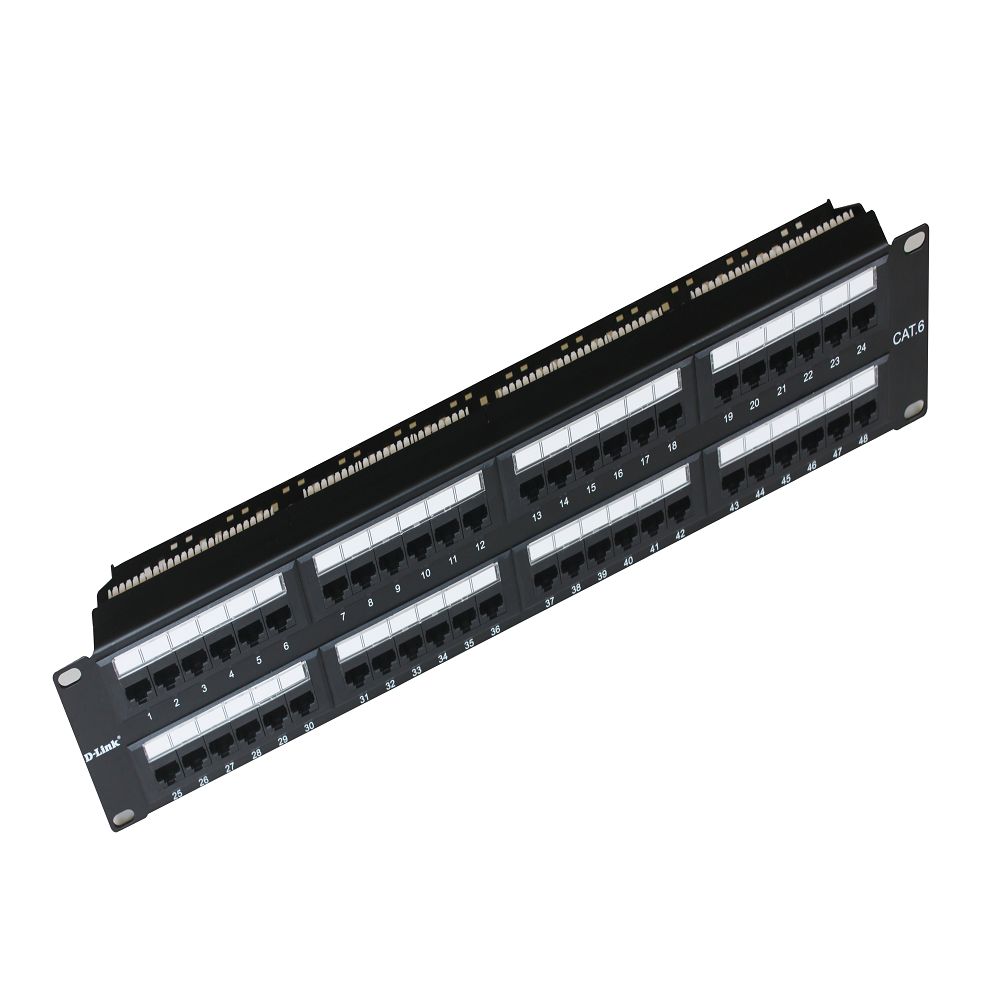

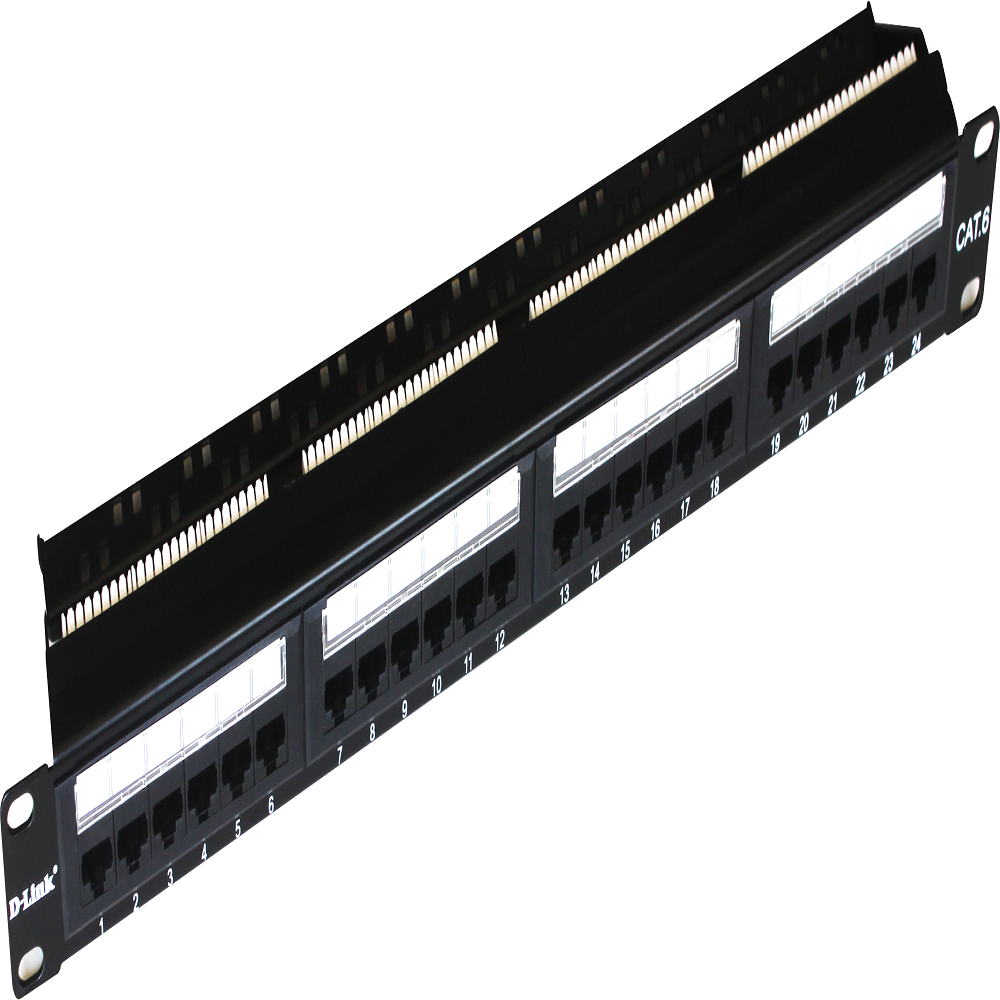

• Available in 1U and 2U.

SPECIFICATIONS

• Identification: ID plate, PVC, Transparent color with paper.
• Panel: SPCC, 1.5mm thickness with Black (RAL 9005) color painted.
• RJ45 Jack:
  • Housing: ABS, UL 94V-0.
  • Contact Brackets: PC, UL 94V-2, Transparent color.
• RJ45 Jack Contact:
  • Material: Phosphor Bronze with Nickel Plated.
  • Finish: 50 micro-inches Gold plated on plug contact area.
• IDC:
  • Housing: PC+ Glass Fiber, UL 94V-2.
  • Terminal: phosphor Bronze with Tin plated.
• Jack Bracket Set: ABS, UL 94V-0.
• Support Bar: SPCC, 1.5 mm thickness with Black (RAL 9005) color painted.
• PCB: FR4, UL 94V-0.

PERFORMANCE

• T568A & T568B wiring scheme
• Insertion force:
  • 20N max. (IEC 60603-7-4)
• Retention strength:
  • 7.7 kg between jack and plug
• Operating temperature:
  • -10oC to 60oC (ISO/IEC 11801, ANSI/TIA/EIA 568B.2)
• Life (mating cycles):
• Jack:
  • 750 cycle’s min (ISO/IEC 11801, IEC 60603-7-4)
• IDC:
  • suitable for 22-26 AWG stranded and solid wire,compatible with both 110& Krone punch down tools.
• The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568B.2 -1 standard.
• Six port modules applied.
