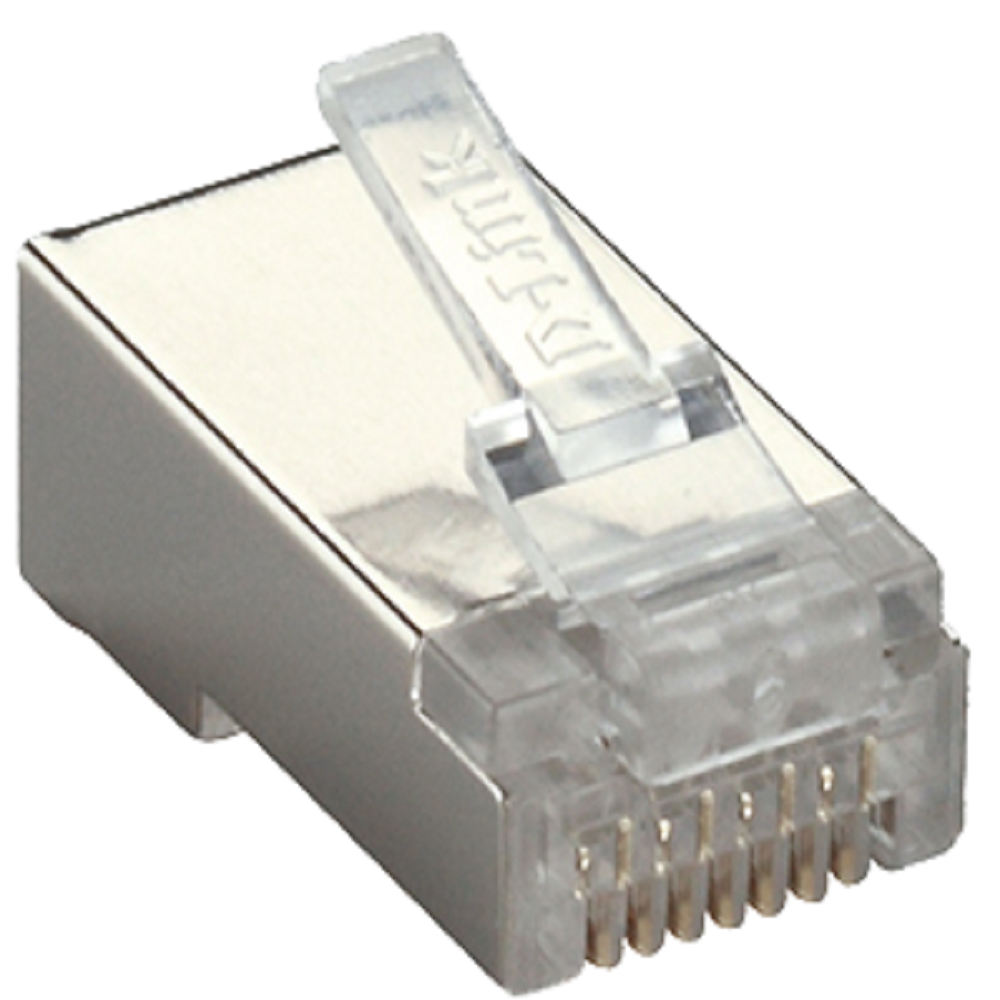

The NPG-C61MET502-100 CAT6 FTP Modular Plug is a universal network jack with high conductivity, for all your network cabling requirements.

Modular Plugs
D-Link Category 6 Modular Plugs are suitable for both 24-26 AWG stranded and solid cables. This modular design means they can be used for a wide range of networking needs that span across a whole business system, eliminating the need to constantly switch between plugs when cabling. Compatible with standard RJ45 Wire network crimping tools, D-Link CAT 6 modular plugs fit seamlessly into any well-established standard operating procedure, making cable assembly easy.

High Conductivity
The RJ45 jack contact terminals are finished with 50 micro-inch thick gold plating, not only increasing conductivity but also the connector’s lifespan, this results in more reliable and fast data transfers.

Universal Standards
Supporting the IEC60603-7-4 and complying with ANSI/TIA/EIA-568-C.2 standards, the D-Link CAT 6 modular plugs easily integrate into any established network cabling system.

Features
Modular design

• Fits 24-26 AWG.

Standards

• IEC60603-7-4.
• ANSI/TIA/EIA-568-C.2.

Reliable and fast connection

• 50 micro-inch thick gold plating.
• Polycarbonate housing.
• Nickel plated bronze shield.

Technical Specifications
General Specifications
RJ45 Jack Housing & Insert

• Polycarbonate.
• UL94-2.

RJ45 Jack Shield

• Bronze with Nickel plating.

RJ45 Jack Contact Terminal Material

• Phosphor bronze with 100 micro-inch nickel plating on contact area.

RJ45 Jack Contact Terminal Finish

• 50 micro-inch gold plating.

Insertion Cycles

• 2000 times.

Operating Temperature

• -40 °C to 125°C.

Electrical Specifications
Current Rating (MAX)

• 2A.

AC Input

• 250V AC.

Insulation Resistance

• ﹥ 500 Megaohms,1000V DC/min.

Contact Resistance

• <20 Milliohms.
