FEATURES

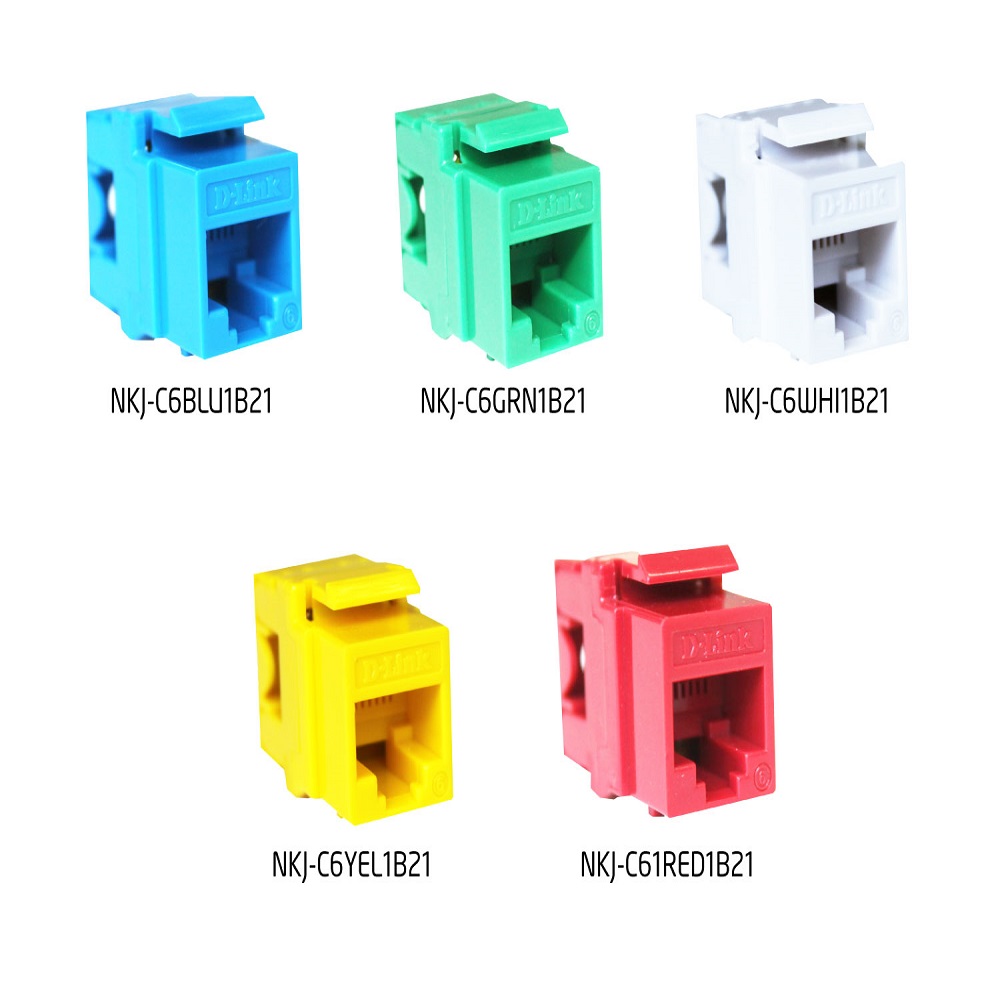

• RJ45 8P 8C 180˚C 50u Punch Down Jack.
• Terminating 4 pairs, 22-26 AWG Cable.
• Universal labels color coded for T568A  and T568B wiring schemes.
• Fitting high density keystone panel.
• UL, ETL, RoHS certified.

SPECIFICATIONS

• RJ45 Jack:
  • Housing: PC, UL94V-0 with Option Color
  • Contact Bracket: PC, UL94V-0 Transparent Colour
• RJ45 Jack Contact:
  • Material: Phosphor Bronze with Nickel Plated
  • Finish: 50 micro-inch Gold plated on Plug Contact area
• IDC:
  • Housing: PC,UL94V-0
  • Terminal: Phosphor Bronze with Tin plated
• IDC CAP: PC, UL94V-0.
• PCB : FR4, UL 94V-0.

PERFORMANCE

• T568A & T568B wiring sticker.
• Insertion force:
  • 20N max (IEC 60603-7-4).
• Retention strength:
  • 7.7 kg between jack and plug.
• Operation temperature:
  • -10˚C to 60̊C (ISO/IEC 11801, ANSI/TIA/EIA 568 C.2).
• Life ( Mating Cycles):
  • Jack: 750 cycle min (ISO/IEC 11801, IEC 60603-7-4).
• IDC:
  • suitable for 22-26 AWG stranded and solid wire, compatible with both 110 & Krone punch down tools.
• The Cat6 transmission performance is in compliance with the ANSI/TIA/EIA 568 C.2 standard.
