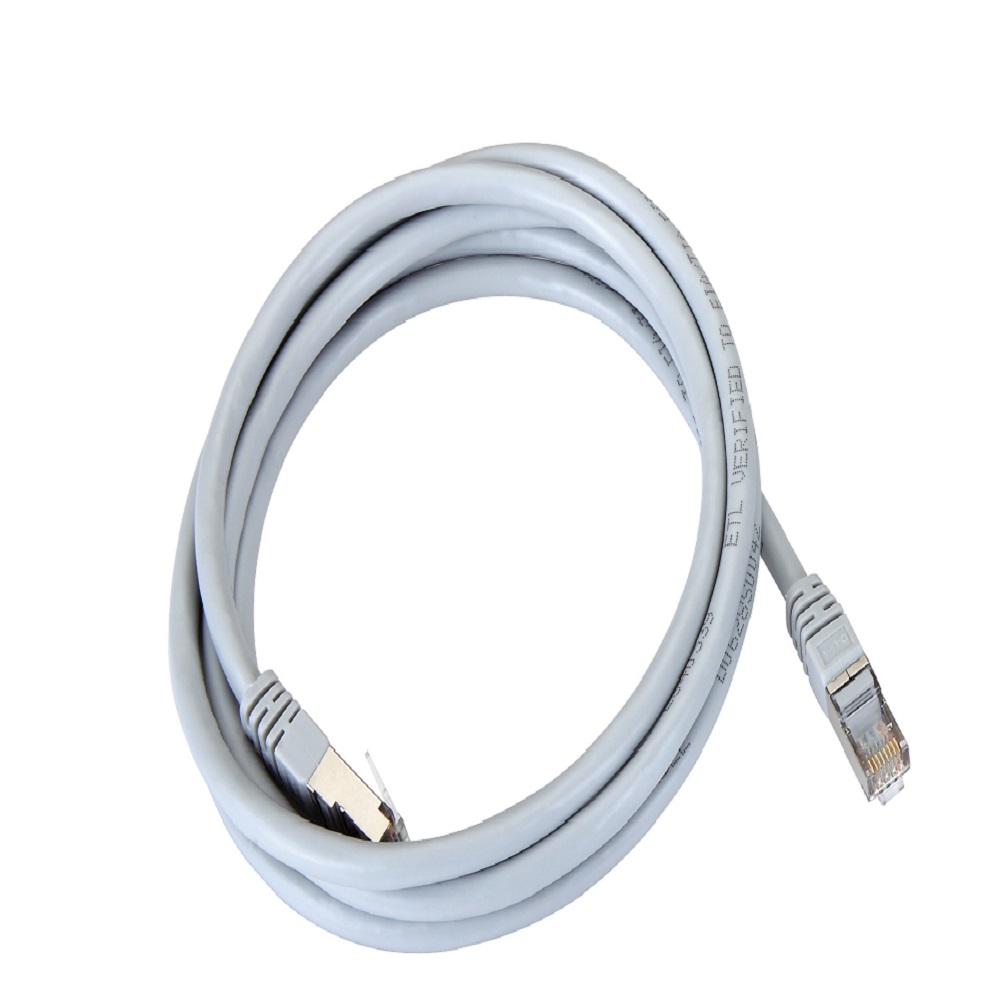

D-Link solid cables are the best twisted-pair cables in the market for transmitting data over local area Networks (LANs). These cables exceed performance requirements specified by the TIA/EIA-568B.2 / TIA/EIA-568C.2 and IEC 60603-7-4 standards.
As streaming video and multimedia over LAN are gaining popularity, users demand faster data transmission and reduced waiting time. D-Link cables are ideal for simple, cost-effective and high-speed transmission performance. They support a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.
SPECIFICATIONS
- 4 Pairs Shielded Twisted Pair (STP) Cable.
- Conductor Metal: Bare Copper.
- Color Code: Gray.
- Conductor: 24 AWG.
- Insulation Material: HD-PE.
- Outside – Tape Metal: MYLAR.
- Overlap Rate: 25%.
- Jacket Material: PVC UL94V-0.
- Heat-resistant: 60oC minimum (Temperature limited).
- Flame property: The purpose of the vertical flame test is to screen out flammable wires. It follows the VW-1 (UL) and FT-1 (CSA) standards.
MODULAR CONNECTOR/PLUG
- RJ-45 8P for Transparence color.
- Gold plated: 30U”.
- Contact blade: Phosphor Bronze.
- Temperature range: -10 ~ 80 C.
- Dielectric withstanding voltage: 500V AC.
- Insulation resistance: 35M Ohm (max.).
- Durability: 750 matching cycles.
- Cable-to-plug tensile strength: 20lbs (89N) (min.).
- UL applications: 250V AC, 2A (max.).
- Polycarbonate (PC) UL94-V-0.
APPLICATION
- 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3).
- 100VG-AnyLAN (IEEE802.12).
- 550 MHz Broadband Video.
- Voice, T1, ISDN.
- 155/ 622 Mbps ATM.
- Power over Ethernet (POE).
APPROVAL / CERTIFICATION
- UL 444 (for Copper conductor).
- UL 758/ Style 2835.
- UL 1581 (Test standard).
- Verified compliant with TIA/EIA-568C.2 standards by ETL.
- D-Link Product Hazardous Substance Management.
- CUL listed.
- RoHs.
