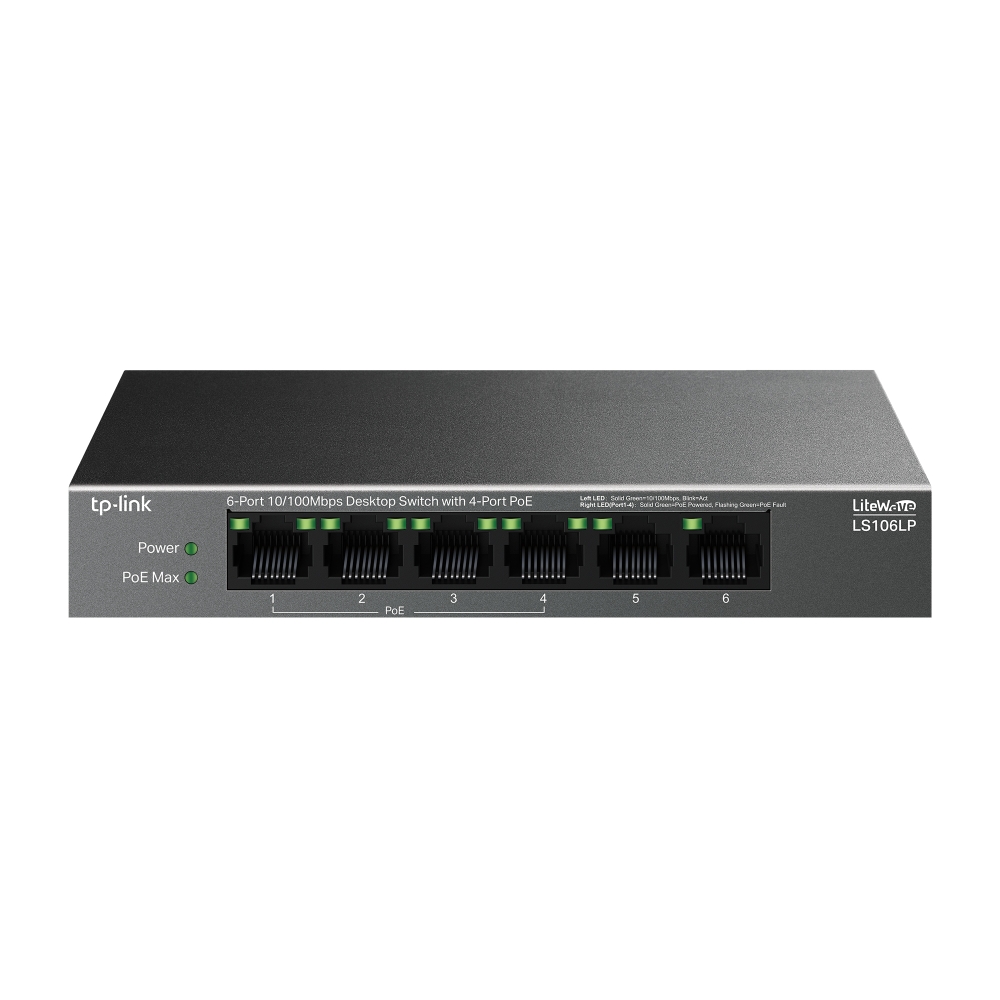

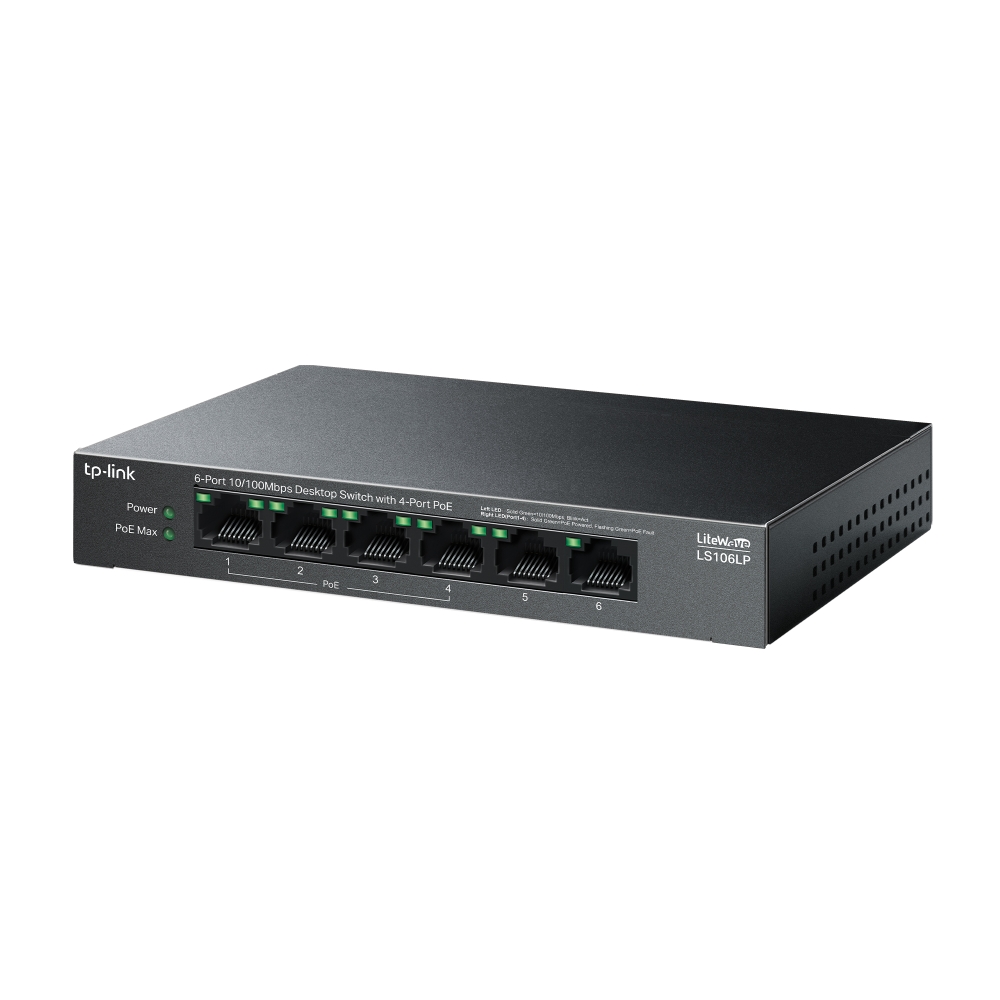

LS106LP/V1 TP-Link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE

Overview

• The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Technical Specifications

Standards

• IEEE802.3i, IEEE802.3u, IEEE802.3x,IEEE802.3af

Interface

• 6 10/100 Mbps RJ45 Ports

Network Media (Cable)

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m)

PoE
PoE Standard

• PoE Standard: IEEE 802.3af

PoE Port

• Port 1–4, up to 15.4 W per port  Port 1–4, up to 30 W per port

PoE Power Budget

• 41 W

Auto Negotiation

• Yes

Auto MDI/MDIX

• Yes

Max Power Consumption

• 2.53 W (220 V/50 Hz no PD connected)
• 47.76 W (220 V/50 Hz with 41 W PD connected)

Max Heat Dissipation

• 8.61 BTU/h (220 V/50 Hz no PD connected)
• 162.38 BTU/h (220 V/50 Hz with 41 W PD connected)

Forwarding Mode

• Store and Forward

Switch Capacity

• 1.2 Gbps

MAC Address Table

• 2k, Auto-learning, Auto-aging

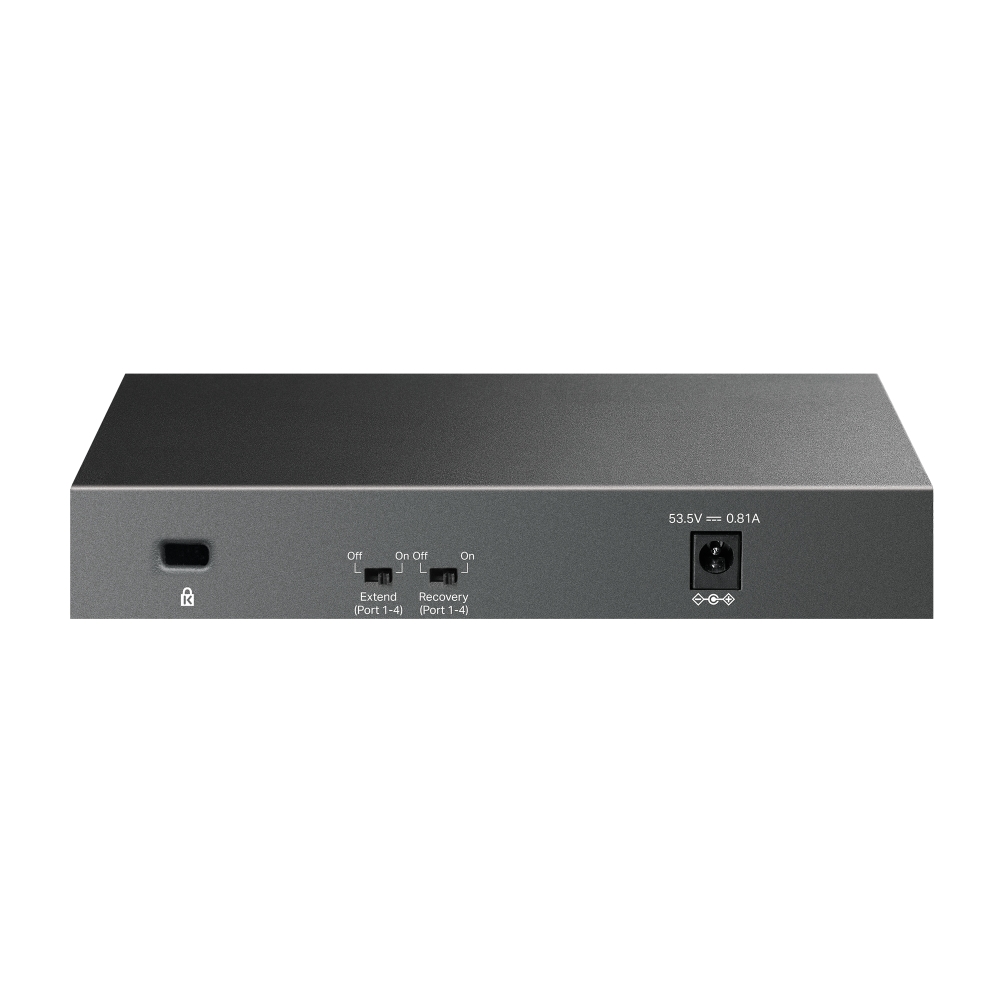

Extend Mode

• YES (Ports 1-4)

Solation Mode

• No

PoE Auto Recover

• YES (Ports 1-4)

Flow Control

• Yes

Fan Quantity

• 0

LED

• Power, Link/Act, PoE Status, PoE MAX

Dimensions

• 6.2*4.0*1.0 in.(158 x 101 x 25 mm)

Certifications

• CE, FCC, RoHS
