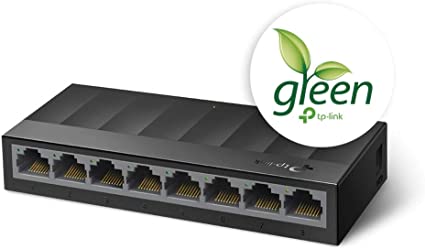

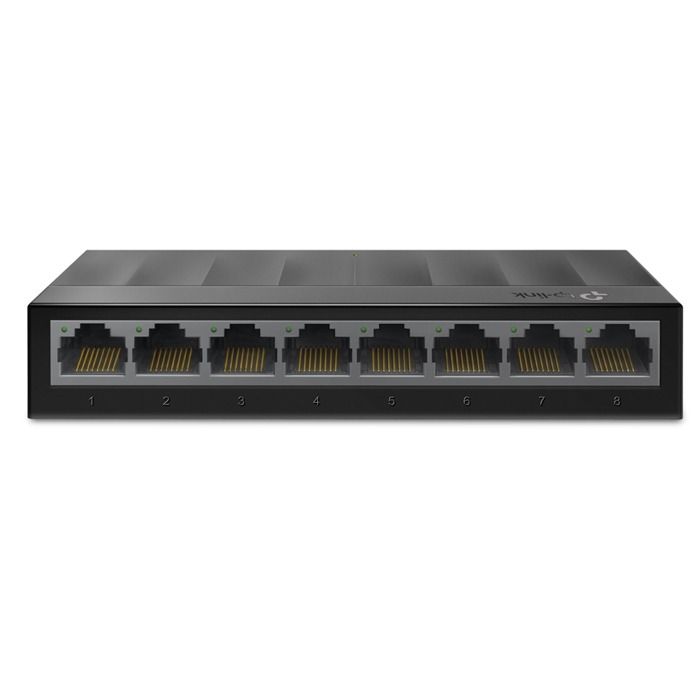

The TP-Link LiteWave Series Unmanaged Switches provide simplest and most affordable way to expand your wired network. They are reliable and easy to use. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use. Moreover The LiteWave Series also supports energy-efficient technology, helping you save power and money. The LS1008G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
Features
- Increase Your Network Speed and Save Energy
- Expand network connections to multiple devices
- Wall-mounting design
Technical Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface

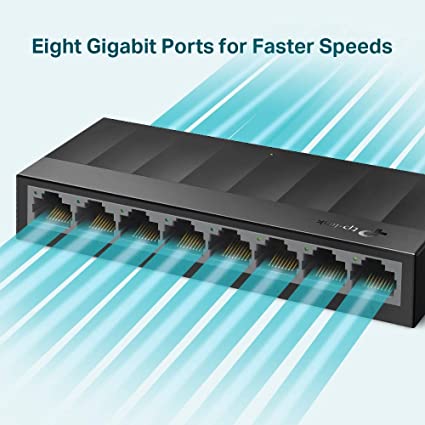

- 8× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
- Fanless
External Power Supply
- External Power Adapter (Output: 5VDC / 0.6A)
Dimensions ( W x D x H )
- 5.0 × 2.6 × 0.9 in. (127 × 66.5 × 23 mm)
Max Power Consumption
- 2.7W
Max Heat Dissipation
- 13.3 BTU/h
PERFORMANCE
Switching Capacity
- 16 Gbps
Packet Forwarding Rate
- 11.9 Mpps
MAC Address Table
- 4K
Packet Buffer Memory
- 1.5 Mb
Jumbo Frame
- 16 KB
SOFTWARE FEATURES
Advanced Features
- Green Technology
- 802.3X Flow Control
- Back Pressure
Transfer Method
- Store and Forward
OTHERS
Certification
- CE
- FCC
- RoHS
Package Contents

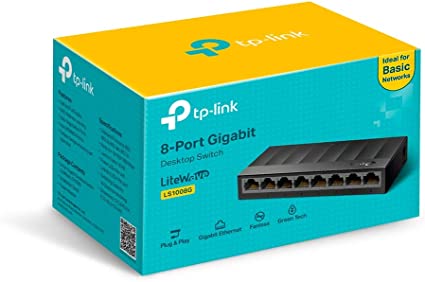

- 8-Port 10/100/1000Mbps Desktop Switch
- Power Adapter
- Installation Guide
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40℃~60℃ (-40℉~140℉)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5%~90% non-condensing
