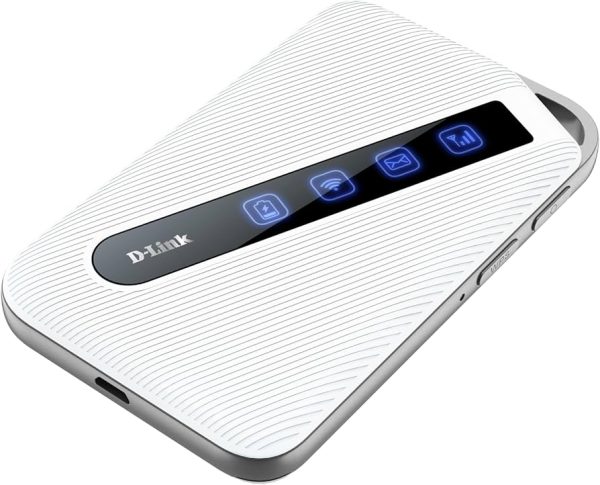

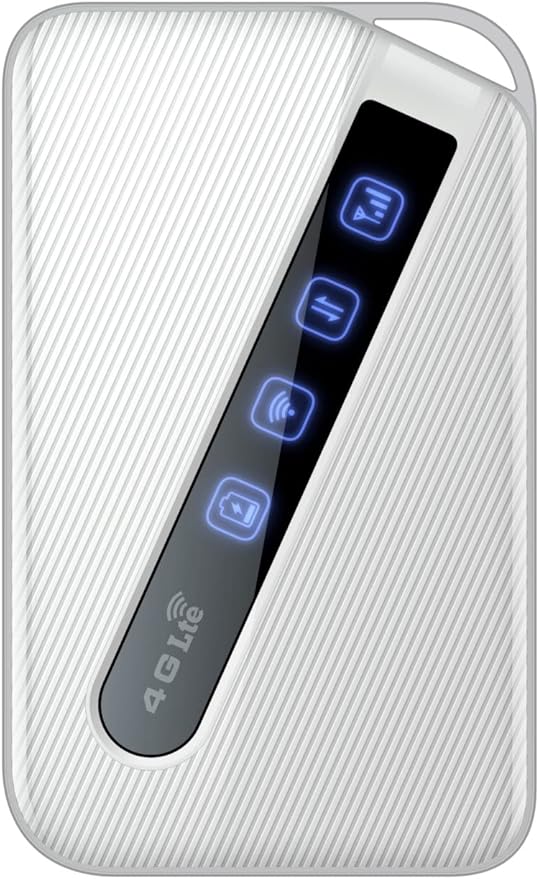

The DWR-930M 4G/LTE Mobile Router is a 4G LTE Cat4 high-speed broadband wireless WAN(WWAN) to Wi-Fi mobile hotspot that supports internet speed up to 150Mbps downlink and 50Mbps uplink. The DWR-930M uses a 4G Internet connection to give you an easy-to-set-up Wi-Fi network anywhere you need one. The DWR932-C allows you to create a Wi-Fi hotspot to share your connection with up to 12 Wi-Fi devices. The convenient size means you can share your connection anywhere; use it in a cafe to send e-mail while your friend reads the news, or at the airport so you and your coworkers can work while waiting for your plane.

Connect Anywhere

• Simply insert your data-enabled SIM card to set up your very own mobile Wi-Fi network. The DWR-930M is perfect for when you need to quickly set up an impromptu network; it’s ideal for business trips when you need to share an Internet connection with everybody during a meeting, or use it for travel, allowing you to provide all your travel companions with Internet access

Charge Your Smart Devices On The Go

• With a powerful 3000mAh battery you can surf the internet up to 12 hours in one charge and you can recharge your smart devices using the provided OTG cable.

Features

Connectivity

• Uses a USIM card to connect to the Internet

• Compatible with 802.11n/g/b wireless devices

•  Frequancy Range: 2.4GHz – 2.4835GHz
• EIRP: 18.4 dBm

• Micro-USB port for easy charging

Portability

• Connect up to 8 Wi-Fi devices
• Charge your smart devices thanks to power bank feature using OTG cable
• Up to twelve hours of battery in one charge so you stay connected longer
•  Small size lets you drop it in a purse or pocket and take it wherever you go

Security

• WPA/WPA2 Wi-Fi security protocols for industry-standard encryption connections out
• built-in firewall helps keep unwanted connections out
• Wi-Fi Protected Setup (WPS) for one-touch setup

Technical specifications:

Frequency Support1

• FDD-LTE: Band 1/3/7/8/20
• TDD-LTE: Band 38/40
• UMTS/HSDPA/HSUPA: B1/B8
• GSM/GPRS/EDGE: B3/B8

Data Throughput2

• Downlink up to 150 Mbps
• Uplink up to 50 Mbps

Security

• WPA/WPA2 PSK Auto (TKIP/AES)
•  WPS Push-Button Connection

Advanced Functions

• Built-in rewall
• Built-in NAT
• UPnP

Physical

Interfaces

• 802.11n/g/b wireless LAN
• Single Micro SIM + eSIM (Optional)
• Micro-USB port

Antenna

• Internal LTE antenna

1×2 MIMO (UL/DL)

• 2 x internal Wi-Fi antennas

LED

• Power Status
• SMS Status
• Wi-Fi Status
• Network Type
• Cellular Signal Strength
• Battery Indicator

Power

• DC 5 V/1 A ± 5%
• 3000mAh Poly Li-ion

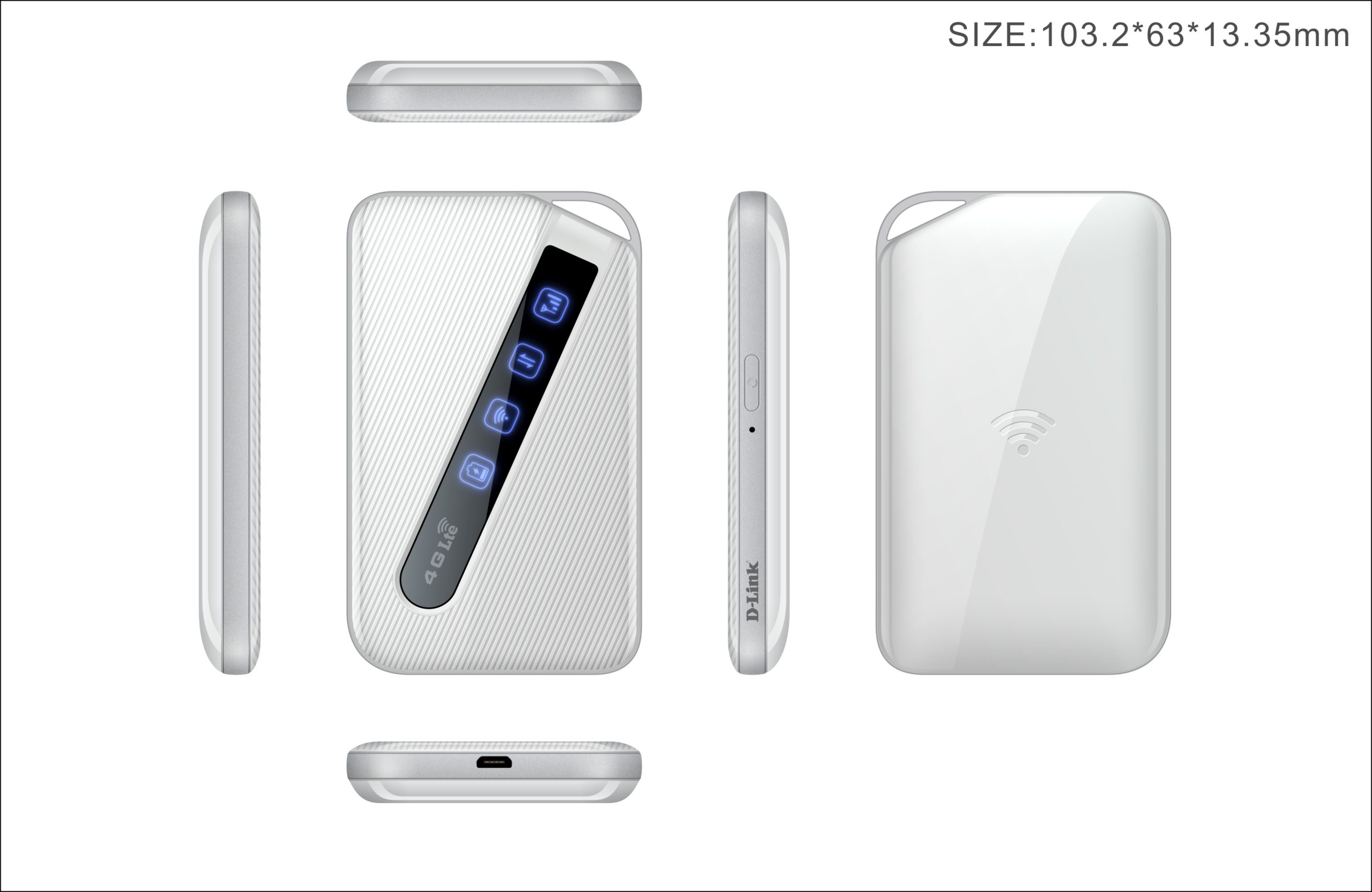

Dimensions

• 103 x 63 x 13.35mm

Weight

• 80g

Operating Temperature

• 0 to 40 ˚C (32 to 104 ˚F)

Storage Temperature

• -20 to 70 ˚C (-4 to 158 ˚F)

Operating Humidity

• 10% to 90% (non-condensing)

Certifications

• CE
• RoHS
