The D-Link DWR-910 4G LTE USB Router lets you share a fast mobile Internet connection with multiple PCs and mobile devices wherever you go. It offers 4G LTE compatibility for fast downlink and uplink data rates, so you get the fastest mobile connectivity available, even when you’re on-the-go. You’ll have access to smooth online video, lag-free online gaming, and highspeed surfing on any device, from anywhere.
Breakthrough Speeds with 4G LTE Technology
The DWR-910 4G LTE USB Router gives you fast access to the Internet wherever you are and lets you share it on-the-go. Using powerful new 4G LTE technology, you can achieve download speeds of up to 150 Mbps and upload speeds of up to 50 Mbps1. You’ll get a blazing fast Internet connection with two internal LTE antennas that give you a more reliable connection with faster speeds. You can connect and share the Internet with speeds fast enough to allow demanding tasks that were once difficult when using a mobile connection, such as streaming HD video to multiple devices.
Mobile Internet for All of Your Devices
The 4G LTE USB Router lets you share your fast mobile connection over Wi-Fi from a device small enough to fit in your pocket. With the DWR-910, you can get online with your notebook, smartphone, tablet, and any other wireless device by sharing a single 4G LTE connection. The DWR-910 will provide high-speed Wireless N Internet access for everybody – whether you are with colleagues on a business trip, or when you are travelling with friends and family.
Built-in Software for Instant Access Anywhere
The DWR-910 is truly plug-and-play with drivers built right into the router so you can connect without the need to install anything. Open a browser, connect the router, and you can set up your network right from a web interface. Notebooks and netbooks without a CD-ROM drive can connect and get up and running in no time. You can even plug the DWR-910 into any powered USB port and provide wireless connectivity to your mobile devices without a PC.

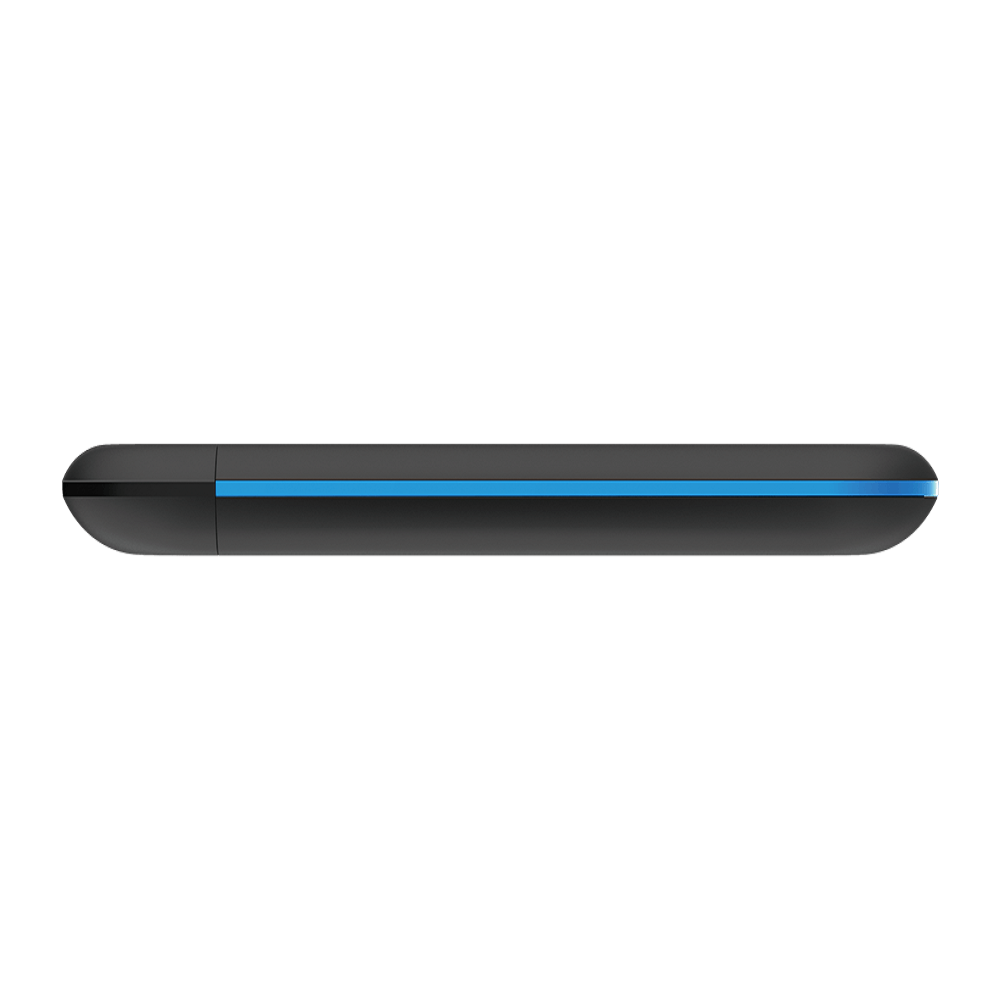

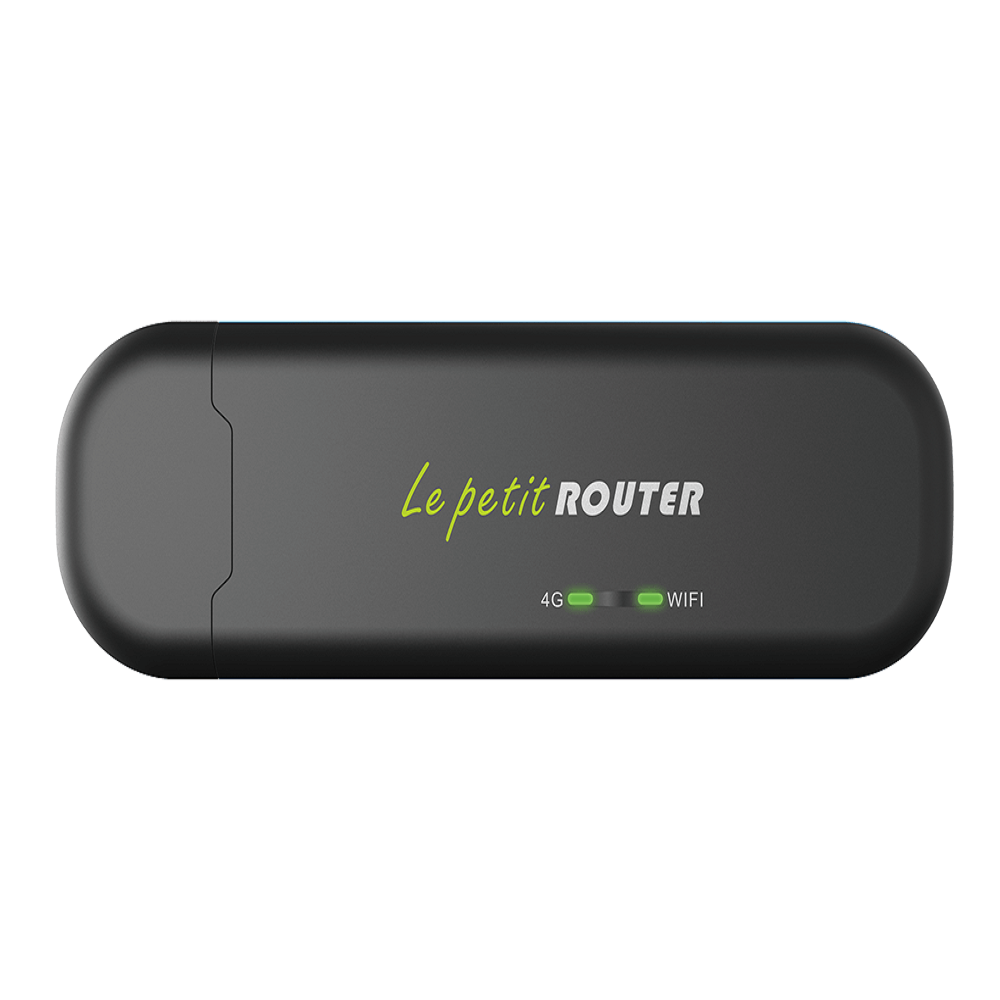

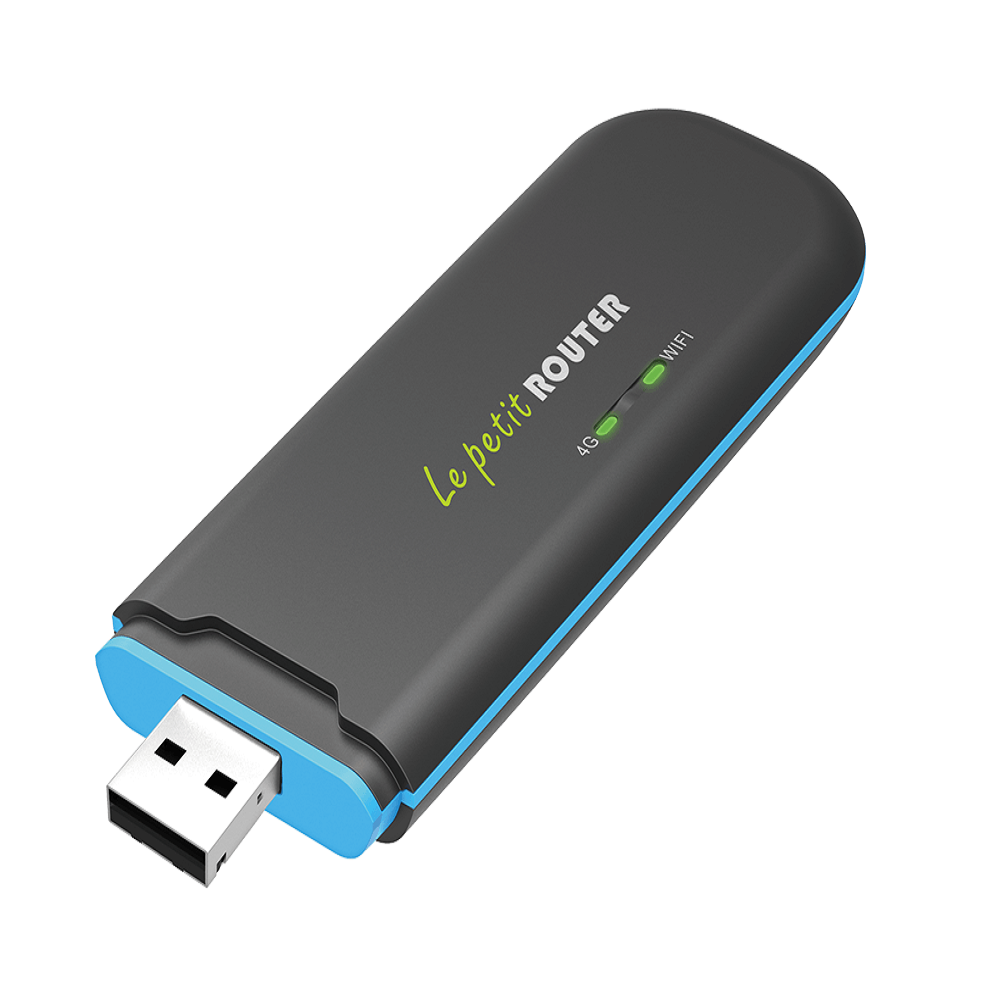

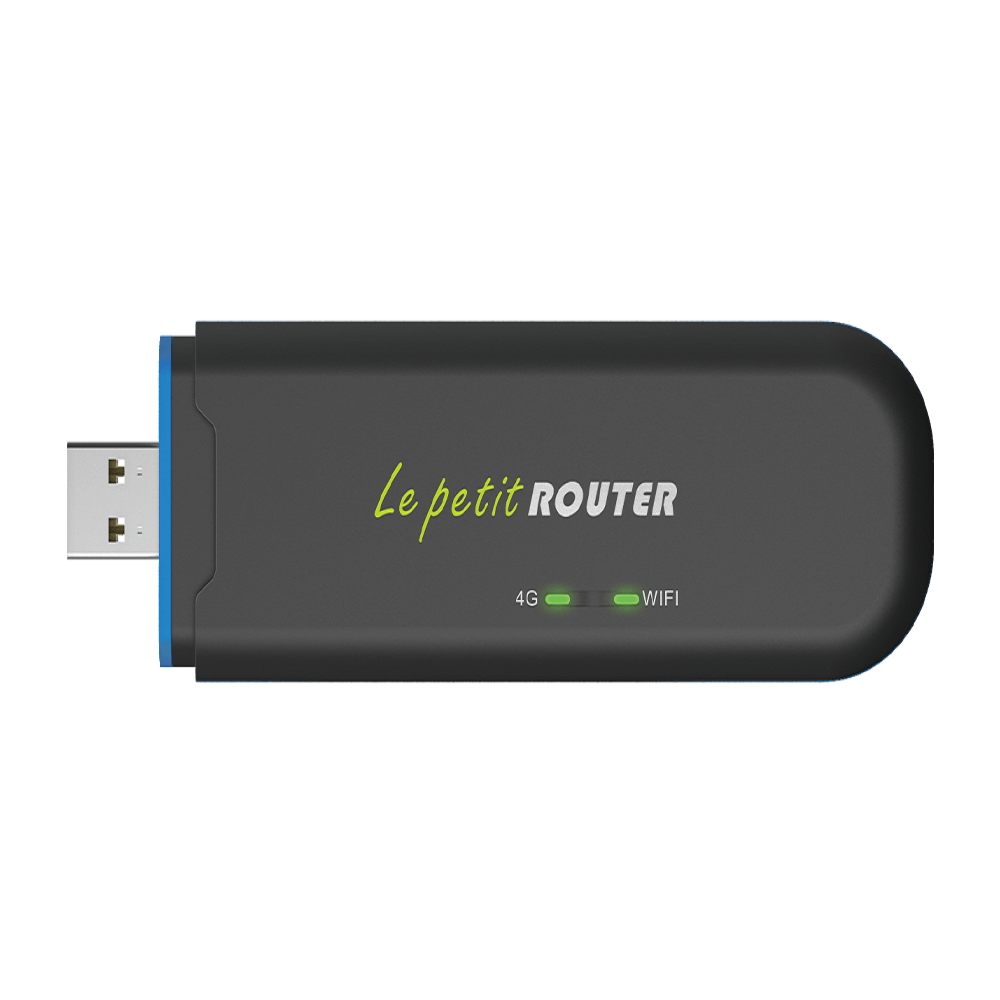

Designed for True Portability
The DWR-910 4G LTE USB Router is small and slim enough to carry around
in your purse or pocket so that you can take advantage of your fast 4G LTE
connection wherever you are. Furthermore, the 4G LTE USB Router directly
plugs in to your desktop or laptop computer’s USB port, eliminating the need
for cables so you can reduce clutter.
Features:
Connectivity
- USB 2.0 plug connects to any PC or laptop computer
- SIM slot (6-pin) allows you to access the Internet using your mobile service
- Wireless 802.11b/g/n to create high-speed wireless networks
- microSD card reader allows you to connect portable storage
Mobile Connections
- Data rates of up to 150 Mbps download and 50 Mbps upload1
- LTE/DC-HSPA+/HSPA/WCDMA support for the latest in mobile network technology.
- GSM/GPRS/EDGE support for legacy mobile plans and fallback in the absence of 4G LTE.
Portability
- Small enough to slip right in your pocket
- Internal Wi-Fi and LTE antennas keep it compact
Easy to Set Up, Easy to Use
- Access your SIM card’s phonebook and SMS messaging right from your web browser.
- Built-in drivers and software mean that no CD-ROM drive is required
- LED indicators let you know the status of your connection instantly
Technical Specifications:
General:
Device Interfaces
- USB 2.0
- microSD card slot (up to 32 GB)
- SIM slot (6-pin)
Radio Frequency Bands
- LTE-FDD B5 / B7 / B28
- (850 / 2600 / 700 MHz)
- Power Class 3 (+23 dBm)
- LTE-FDD B3 / B7 / B20 (available upon request)
- (1800 / 2600 / 800 MHz)
- Power Class 3 (+23 dBm)
- UMTS / HSDPA / HSUPA / HSPA+ B1 / B8 (available upon request)
- (900 / 2100 MHz)
- UMTS / HSDPA / HSUPA / HSPA+ B1 / B5
- (850 / 2100 MHz)
- Power Class 3 (+24 dBm) Quadband GSM / GPRS / EDGE
- (850 / 900 / 1800 / 1900 MHz)
- Power Class 4 (850 / 900 MHz)
- Power Class 1 (1800 / 1900 MHz)
Cellular Access
- LTE: 3GPP Rel-9 FDD-LTE Cat.4
- Downlink: 150 Mbps
- Uplink: 50 Mbps
- LTE Bandwidth
- 1.4, 3, 5, 10, 15, 20 MHz
- DC-HSPA+:
- Downlink: 42 Mbps
- Uplink: 11 Mbps
Wi-Fi Access Point
- 802.11n (75 Mbps)
- 802.11g (54 Mbps)
- 802.11b (11 Mbps)
Wireless Security
- WPA2-PSK Auto (TKIP / AES)
- WPA-PSK Auto (TKIP / AES)
- WEP (64 / 128-bit)
- MAC filter
Connection Manager Software Requirements
- Windows 8 / 7 / Vista / XP, Mac OS X 10.5 or higher, or Ubuntu Linux 10.04 or higher2
- 128 MB RAM or greater
- 50 MB available disk space
Functionality:
Antenna
- Internal LTE main antenna
- Internal LTE diversity antenna
- Internal Wi-Fi antenna
LED Indicators
- LTE
• Green (blinking): Connected to LTE network
• Blue (blinking): Connected to 3G network
• Purple (blinking): Connected to 2G network
• Red (blinking): No service/device error - Wi-Fi
• Green (solid): Connected
Plug and Play
- Built-in drivers and software; no CD-ROM required
Connection Software Features
- Web GUI
- Phonebook
- SMS
- Wizard
- APN
- Traffic display and statistics
Wi-Fi Features
- Auto channel selection
- Wi-Fi Protected Setup (WPS)
- Up to 10 connected clients
Advanced Features
- 3G fallback
- Supports IPv6
Physical:
Dimensions (L x W x D)
- 113 mm x 37 mm x 11.5 mm (4.45 x 1.46 x 0.45 inches)
Weight
- 40.5 grams (1.43 ounces)
Operating Temperature
- 0 to 45 °C (32 to 113 °F)
Certifications
- WHQL
