OverView

Plug-and-play Wi-Fi 6 dongle,for connectivity on-the-go.

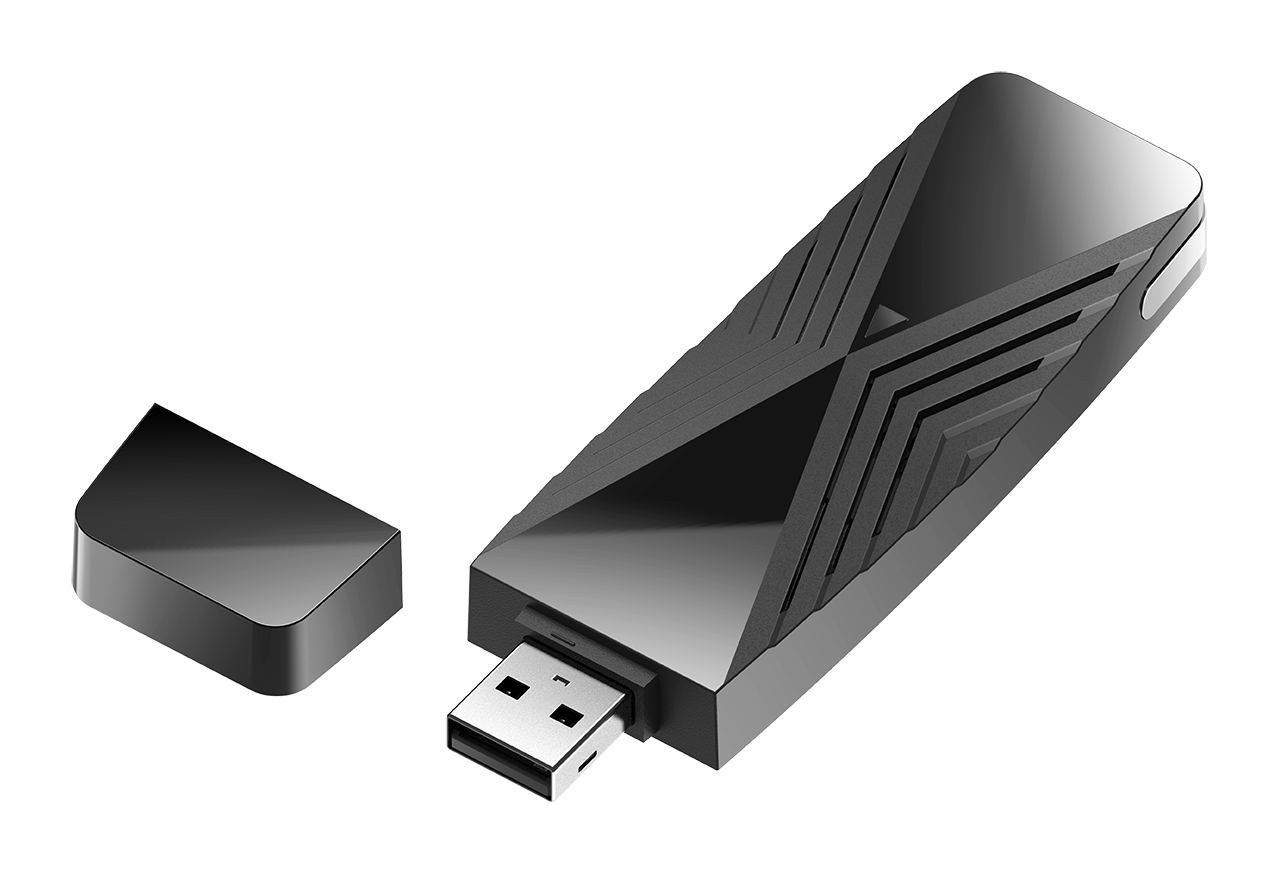

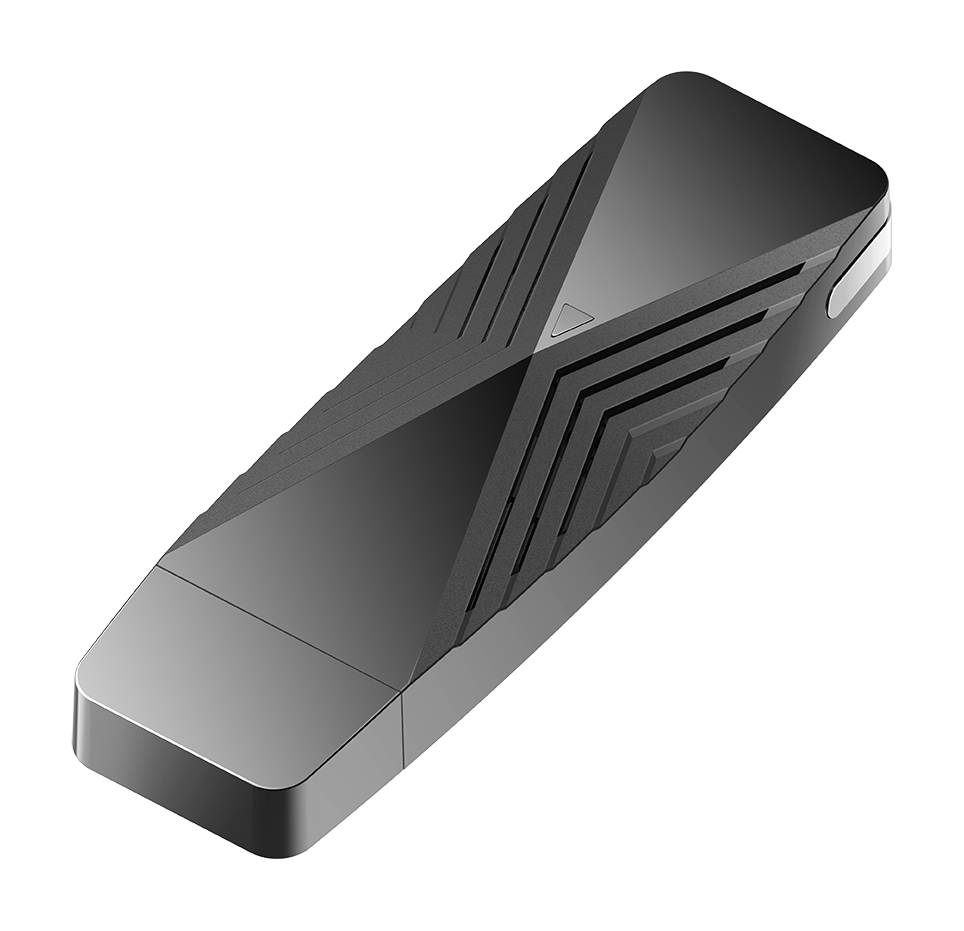

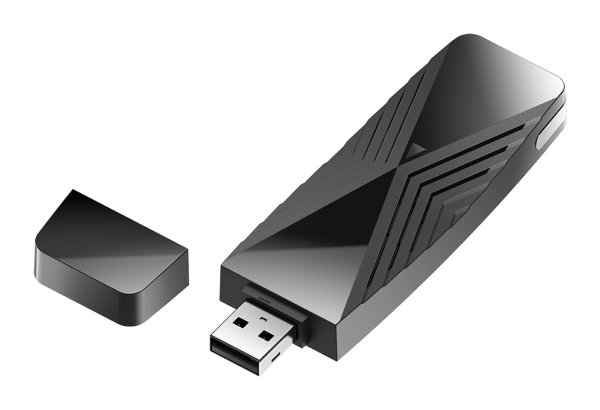

The AX1800 Wi-Fi 6 USB Adapter is a slim and compact wireless adapter that plugs into any USB port and provides instant connectivity to your laptop or PC.

High-speed Wi-Fi 6
Perfect for uninterrupted 4K streaming, VR gaming, and video calling, with speeds of up to 574Mbps (2.4GHz)
and 1200Mbps (5GHz)1

Efficient and stable connectivity with OFDMA
Small data packets destined for multiple devices are transmitted together and never have to queue up again.

High-bandwidth MU-MIMO
Allows simultaneous communication between multiple devices, distributing your Wi-Fi traffic more efficiently.

Designed for portability
Small, portable Wi-Fi 6 dongle, designed for travel convenience.

USB 3.0
USB 3.2 Gen 1 (USB 3.0)2 support provides the maximum throughput to your PC.

Backwards compatible
Backwards compatible with older generation wireless routers.

Enhanced Wireless Security
Connect to wireless networks securely using the latest WPA3™ 128-bit encryption.

Plug and play
Comes with preloaded Windows 10 drivers for a simple installation – simply plug it in, and you’re connected.

Next-Gen Wi-Fi 6 Performance
The DWA-X1850 features the latest 802.11ax Wi-Fi 6 technology, offering incredible wireless speeds with optimised network efficiency and performance, allowing you to get the most from your network.

• Enjoy 4K movies without stutter, download huge files immediately, play intense multiplayer games without lag, and have video calls without interruption – making it the perfect companion whether at home or away.
• Eliminate buffering & cut down on loading times
  The DWA-X1850’s MU-MIMO & OFDMA technologies ensure that multiple devices receive high-bandwidth Wi-Fi at the same time to distribute data more efficiently, providing you with faster Wi-Fi 6 speeds.

Maximum Data Transfer Speeds
The dongle also supports high-speed USB 3.2 Gen 1 (USB 3.0), allowing you to maximise throughput to your computer and utilise the full potential of Wi-Fi 6

Easy Installation and Portable
With software already preloaded on the adapter, installation takes just one click. The slim and compact design means the dongle can easily be carried around when out and about.

• Maximum wireless signal rate derived from IEEE standard 802.11ax/ac/n/g/b specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
• Using a USB 1.1 or USB 2.0 port will affect device performance. USB 3.2 Gen 1 (USB 3.0) port or higher recommended.

Technical Specifications

Order Information

Part Number
DWA-X1850

Description
AX1800 Wi-Fi 6 USB Adapter

General

Wireless Encryption
WPA2™, and WPA3™ (Wi-Fi Protected Access)

Standards
IEEE 802.11ax
IEEE 802.11n
IEEE 802.11a
IEEE 802.11ac

Antenna Type
Integrated antenna

Requirements

Operating System
Windows 10 32 & 64-bit driver support

Interface
Available USB port Supports USB 3.2 Gen 1 (USB 3.0) standard

Physical

Dimensions
(L x W x H) 95.5 x 30 x 12.7 mm

Weight
23.6 g

Power
Power consumption:
Standby mode – 154 mA
Operating mode – 464 mA
Operating voltage: 5.0 V DC ± 10%

Temperature
Operating: 0 to 40° C (32 to 104° F) Storage: -20 to 75˚ C (-4 to 167° F)

Humidity
Operating: 10% to 90% (non-condensing) Storage: 5% to 95% (non-condensing)

Certifications
FCC Class B
CE
IC
