MAKE WORLDWIDE PHONE CALLS
Call virtually anywhere through the Internet. Easy installation and configuration through web-based GUI

SUPERIOR SOUND
Speakerphone IP phone with Echo Cancellation, CNG, VAD and Dynamic Jitter Buffer features for excellent sound quality

COMPLETE PHONE FEATURES
Extensive phone functions: Call Transfer, Forward and Hold, 3-Way Conference,
Speed Dial/Phone Book, Caller ID

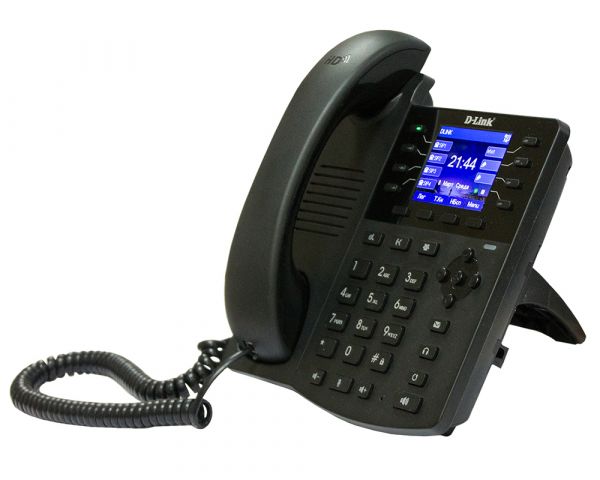

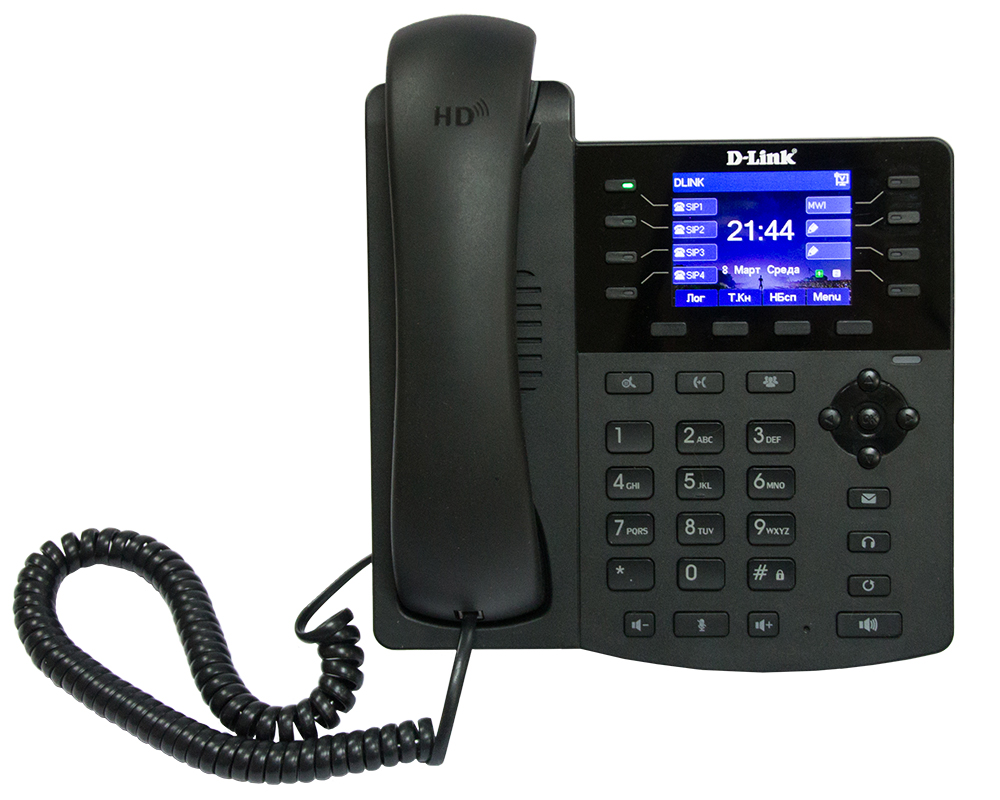

• DPH-150SE/F5 IP Phones are mainly designed for general office users (from VSE, SOHO to SMB) in VoIP communication. With sophisticated and elegant design, this platform has high performance and can offer versatile features and specifications to meet different environment requirements. It can be installed on LAN /DSL/Cable network environment and registered to SIP registrar Server(s), soft switch(es), IP-PBX(s), or IMS-based system and let SIP-enabled terminals to communicate with. Beyond this, user’s PC can be connected to this phone instead of LAN directly. The phone comes with a plastic Housing and some accessories, including handset, handset cord, keypad, keys and wall-mounting kit. A TFT color LCD display on the panel provides direct visual interface with user. User can use keypad/LCD or Web browser to configure this phone.

WHAT THIS PRODUCT DOES

• Connect the DPH-150SE Broadband Internet IP Phone to your DSL/cable modem or router, and you can make phone calls anywhere in the world using the Internet. This IP phone gives you the advantages of VoIP, while retaining the same look and feel of a traditional advanced desktop telephone. It also provides two Ethernet ports with NAT and DHCP server support, so you can log your PC onto the Internet and surf the web while talking over your Internet phone.

KEYPAD FEATURES

• 4 Soft keys for doing more functions
• 8 DSS keys
• 4 Navigator Keys & 1 ok key for navigating in configuration
• Hold
• Call forward
• Three-party conference
• MWI
• Headset
• Redial
• Speaker
• 12 numeric keys with star & pound key
• Mute
• Vol – / Vol +

TECHNICAL SPECIFICATIONS

NETWORK INTERFACE AND I/O PORTS

• WAN Port: to connect to 10/100 Mbps Ethernet
• LAN Port: to connect to 10/100 Mbps Ethernet
• 5V DC IN Jack: to connect to local power with a switching power adaptor
• Handset Hook switch: for hang on/off control on handset cradle
• Handset Jack: to connect with a handset
• Headset Jack: to connect with a headset
• External console Jack: to connect with expansion module

VOICE CODEC

• G.711a/u (64k bps)
• G.729A/B (8k bps)
• G.723.1 high/low
• G.726-32
• G.722

ADVANCE VOICE QUALITY FEATURE

• Silence Suppression
•  Acoustic Echo Cancellation (G.167)
• Voice Active Detection (VAD)
• Comfort Noise Generation
• Jitter Buffer
• DTMF Transmitter (SIP info, Transparent, RFC 2833)
• Packet Lost Concealment (PLC)
• HD Voice handset

SIGNAL, MEDIA & NETWORK PROTOCOLS

• SIP RFC 3261 & the related RFC standard in Appendix A
• SDP RFC 2327
• RTP RFC 1889
• IP assignment: Static IP, DHCP and PPPoE
• STUN, static port mapping (for NAT traversal)
• SNTP
• DNS & DNS SRV
• TFTP/FTP/HTTP/HTTPS for Auto Provision
• IP/TCP/UDP/ARP/ICMP
• Route and Bridge mode

SUPPLEMENTARY CALL FEATURE

• Call Hold Resume
• Call Mute
• Call Waiting
• Call waiting Indication
• Three Way Conference
• Anonymous Call/Rejection
• Message Waiting Indication
• Auto Answer
• Black list
• Limit list
• Auto hangup
• Auto Redial
• Ban outgoing
• Hotline
• BLF/Presence
• Action url/Active uri

NETWORK CAPABILITY

• QoS: IEEE 802.1Q & IEEE 802.1p Compliant
• Diffserv (DSCP)/ToS
• Full range VLAN ID Support
• Class of Service Support by VLAN Tag
• LLDP
• L2TP VPN/OpenVpn

USER INTERFACE AND NETWORK MANAGEMENT

• LCD/Keypad UI in English & other Languages
• HTTP(WEB) UI in English version & other Languages
• FTP/TFTP/HTTP for Firmware remote update
• Auto-provisioning (APS) for firmware and profile upgrade
• Emergence upgrade if firmware corrupted

CPU

• BCM 1190
• 2.8 inch Color LCD
• Resolution: 320×240,TFT color LCD

WAN

• 1×10BaseT/100 BaseTX ports RJ45
• Compliant to following standards:
• IEEE 802.3/802.3u
• Support Full-Duplex operations

LAN

• 1×10/100 Base T ports
• Compliant to following standards:
• IEEE 802.3
• Support Full-Duplex operations

Net Weight

• 0.51kg

Power Adaptor

• AC-DC Switching Power switching
• Wall-Mount type
• Input: 100~120, 220~240VAC
• Output: DC 5V / 1000mA
• Max. Watt: 5 Watt.
• IEEE802.3af POE Class 1

Dimension

• 195 × 188 × 51 mm

Power Consumption

• Typical: 1.3 Watt (Standby) Max.: 4.3 Watt (Talking)Temperature
• Operating: 0˚C to 40˚C Storage: -20˚C to 60˚C

Related Humidity

• Operating: 10% to 65 % (no-condensing)
• Storage: 15% to 85% (non-condensing)
