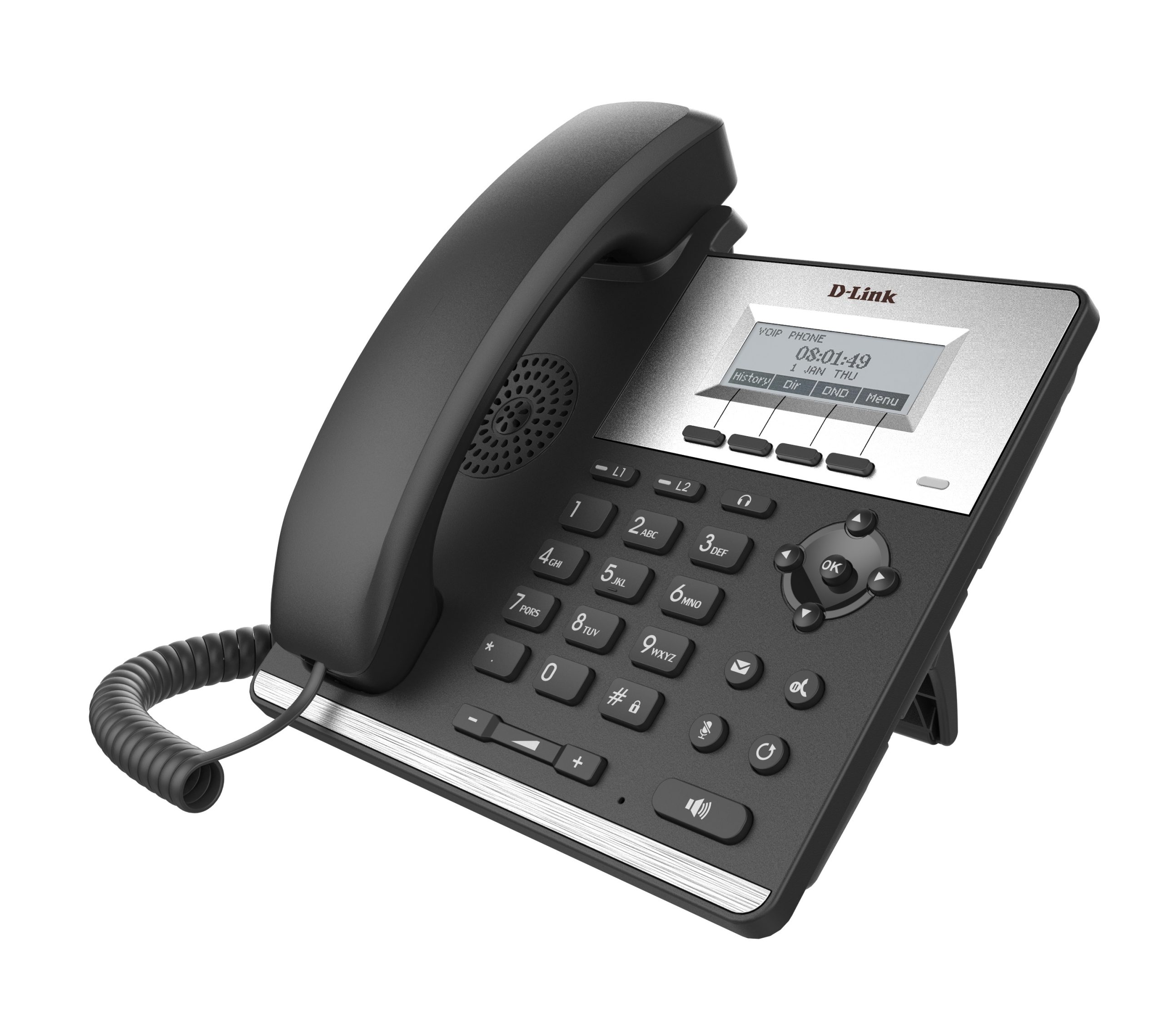

DPH-120SE/F2A

DPH-120SE/F2 IP Phones are mainly designed for general office users (from VSE, SOHO to SMB) in VoIP communication. With sophisticated and elegant design, this platform has high performance and can offer versatile features and specifications to meet different environment requirements. It can be installed on LAN /DSL/Cable network environment and registered to SIP registrar Server(s), soft switch(es), IP-PBX(s), or IMS-based system and let SIP-enabled terminals to communicate with. Beyond this, user’s PC can be connected to this phone instead of LAN directly. The phone comes with a plastic Housing and some accessories, including handset, handset cord, keypad, keys and wall-mounting kit. LCD display on the panel provides direct visual interface with user. User can use keypad/LCD or Web browser to configure this phone.

INTERNET PHONE MADE FOR HOME & OFFICE
The DPH-120SE/F2 Broadband Internet IP Phone allows you to take advantage of your DSL/cable modem connection to make inexpensive Internet phone calls. It combines the industry’s latest Voice over the IP network (VoIP) technology with advanced communication features, and is compatible with industry- wide phone services. This sleek designed IP phone gives you the advantages of VoIP, while retaining the same look and feel of a traditional desktop telephone.

SUPERIOR VOICE QUALITY
DPH-120SE/F2 IP phone incorporates Quality of Service (QoS) to ensure that voice received through the Internet is the same as or even surpasses that received on the ordinary phone. It supports many useful functions such as call transfer, caller ID display, 3-way conference and speed dialing to make it convenient to dial out or answer phone calls.

SURF INTERNET WHILE MAKING INTERNET PHONE CALLS
The DPH-120SE/F2 comes with two Ethernet ports, one to connect to a DSL or cable modem, or to your broadband router. Once connected and logged onto the Internet, you are ready to make and receive calls. In addition, this IP phone provides another Ethernet port for connection to your PC, so you can talk on the IP telephone while browsing web sites, send e-mail, transfer les and do other network tasks on your PC.

QUALITY OF SERVICE AND SECURITY
The DPH-120SE/F2 supports voice VLAN to isolate your voice communication so it cannot be tapped over the network. It provides priority queues to streamline traffic so web browsing and Internet download will not interfere with voice traffic and degrade Internet phone quality.

WHAT THIS PRODUCT DOES
You can dial and receive calls through two different SIP lines which greatly enhance your efficiency and flexibility. 3-Way conference enables you to have a teleconference with two other parties, delivering more powerful and flexible session management. 10/100 Mbps with PoE Integrated, free of power cables reduce number of wires on your desk and enabled you to install the IP phone with ease.

EFFORTLESS CONFIGURATION
The Ip phone features web-based configuration via phone and computer, bringing additional convenience and increasing productivity

SUPERIOR SOUND
Speakerphone IP phone with Echo Cancellation, CNG, VAD and Dynamic Jitter Buffer features for excellent sound quality

COMPLETE PHONE FEATURES
Extensive phone functions: Call Transfer, Forward and Hold, 3-Way Conference, Speed Dial/Phone Book, Caller ID

KEYPAD FEATURES

+ 4 Soft keys for doing more functions
+ 7 Function keys
+ 4 Navigator Keys & 1 ok key for navigating in configuration
+ Hold
+ Call forward
+ Three-party conference
+ MWI
+ Headset
+ Redial
+ Speaker
+ 12 numeric keys with star & pound key
+ Mute
+ Vol – / Vol +

PHONE FEATURES
+ Multi-user (2 SIP accounts)
+ Caller ID display
+ Call History: 300 Calls
+ Phone book (up to 500 contact names & phone numbers)
+ Day/Time display
+ Call/Time display
+ 9 Selective Ring tones
+ 9 Speed dial number
+ Incoming call indicator
+ Flexible dial map
+ Password control for Configuration
+ Pre-dial before sending
+ Connect with expansion module
+ Memo
+ MWI
+ SMS
+ Keypad lock
+ Emergency call
+ Customize DSS key/ softkey

TECHNICAL SPECIFICATIONS

NETWORK INTERFACE AND I/O PORTS
+ WAN Port: to connect to 10/100 Mbps Ethernet
+ LAN Port: to connect to 10/100 Mbps Ethernet
+ 5V DC IN Jack: to connect to local power with a switching power adaptor
+ Handset Hook switch: for hang on/off control on handset cradle
+ Headset Jack: to connect with a headset
+ External console Jack: to connect with expansion module

VOICE CODEC
+ G.711a/u (64k bps)
+ G.729A/B (8k bps)
+ G.723.1 high/low
+ G.726-32
+ G.722

ADVANCE VOICE QUALITY FEATURE
HARDWARE & PHYSICAL SPECIFICATIONS
Model

Key components
CPU: Broadcom
Screen: Resolution: 128×48 dot-matrix (including backlight

WAN :1×10BaseT/100 BaseTX ports RJ45 Compliant to following standards: IEEE 802.3/802.3u Support Full-Duplex operations

LAN: 1×10/100 Base T ports Compliant to following standards: IEEE 802.3 Support Full-Duplex operations

Dimension :195 × 188 × 51 mm

Net Weight: 0.51kg

Power Adaptor: AC-DC Switching Power switching : Wall-Mount type Input: 100~120, 220~240VAC Output: DC 5V / 1000mA Max. Watt: 5 Watt. IEEE802.3af POE Class 1

Power Consumption: Typical: 1.3 Watt (Standby) Max.: 4.3 Watt (Talking)

Temperature: Operating: 0˚C to 40˚C Storage: -20˚C to 60˚C

Related Humidity
Operating: 10% to 65 % (no-condensing)
Storage: 15% to 85% (non-condensing)

Software Requirement:

Browser for Web of Phone: Microsoft Windows IE, or PC-based general web browser

Auto Provisioning Server: General compatible TFTP, FTP , HTTP & HTTPs Server Software

ADVANCE VOICE QUALITY FEATURE

+ Silence Suppression
+ Acoustic Echo Cancellation (G.167)
+ Voice Active Detection (VAD)
+ Comfort Noise Generation
+ Jitter Buffer
+ DTMF Transmitter (SIP info, Transparent, RFC 2833)
+ Packet Lost Concealment (PLC)
+ HD Voice handset

SIGNAL, MEDIA & NETWORK PROTOCOLS
+ SIP RFC 3261 & the related RFC standard in Appendix A
+ SDP RFC 2327
+ RTP RFC 1889
+ IP assignment: Static IP, DHCP and PPPoE
+ STUN, static port mapping (for NAT traversal)
+ SNTP
+ DNS & DNS SRV
+ TFTP/FTP/HTTP/HTTPS for Auto Provision
+ IP/TCP/UDP/ARP/ICMP
+ Route and Bridge mode

SUPPLEMENTARY CALL FEATURE
+ Call Hold Resume
+ Call Mute
+ Call Waiting
+ Call waiting Indication
+ Three Way Conference
+ Anonymous Call/Rejection
+ Message Waiting Indication
+ Auto Answer
+ Black list
+ Limit list
+ Auto hang-up
+ Auto Redial
+ Ban outgoing
+ Hotline
+ BLF/Presence
+ Action url/Active uri

NETWORK CAPABILITY

+ QoS: IEEE 802.1Q & IEEE 802.1p Compliant
+ Diffserv (DSCP)/ToS
+ Full range VLAN ID Support
+ Class of Service Support by VLAN Tag
+ LLDP
+ L2TP VPN/OpenVPN

USER INTERFACE AND NETWORK MANAGEMENT
+ LCD/Keypad UI in English & other Languages
+ HTTP(WEB) UI in English version & other Languages
+ FTP/TFTP/HTTP for Firmware remote update
+ Auto-provisioning (APS) for firmware and profile upgrade
+ Emergence upgrade if firmware corrupted
