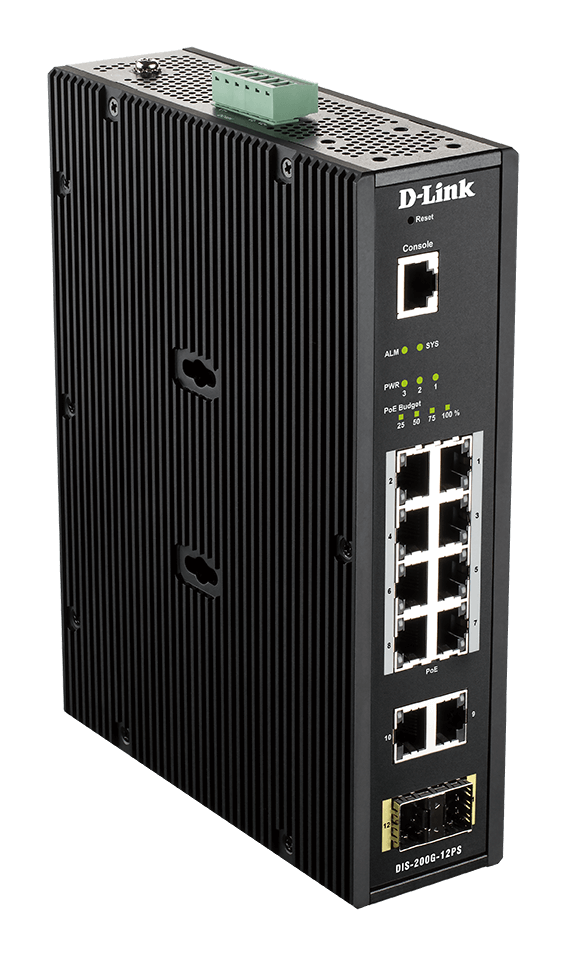

DIS-200G-12PS D-Link 8 10 10/100/1000Mbps PoE ports + 2 10/100/1000Mbps ports with 2 SFP ports L2 Managed Outdoor switch

Features

Flexible Availability

• Available in PoE and non-PoE models
• Industrial model variations with wider operating temperature ranges

Robust and High-Redundancy Design
• Fanless, passive cooling design
• High EMC endurance
• 6 kV surge protection on copper ports
• Ethernet Ring Protection Switching (ERPS)
• Dual power input for redundant power supplies

Layer 2 Features

• IEEE 802.1Q and port-based VLAN
• IEEE 802.1p Quality of Service (QoS)
• STP/RSTP/MSTP
• Port mirroring
• Link aggregation
• Bandwidth control
• Broadcast storm control
• IGMP/MLD Snooping

Advanced Features

• Auto Surveillance VLAN 2.0 (ASV 2.0)

• The DIS-200G-12PS Layer 2 Industrial Managed Switch is equipped with 8 PoE-capable 10/100/1000BASE-T ports, 2 10/100/1000BASE-T ports, and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G-12PS furthermore integrates advanced management and security functions to provide a complete solution.

• The DIS-200G-12PS switch is housed in a highly resistant IP30-rated metal casing to protect the switch from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects DIS-200G-12PS from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-200G-12PS while also being able to operate in a wider temperature range of up to 65 °C. For increased flexibility, the DIS-200G-12PS switch can also be mounted on a DIN rail, wall mounted, or be installed in an equipment rack.

• Additionally, the DIS-200G-12PS switch features 6 kV surge protection on all copper ports to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes. The in-built surge protection of up to 6 kV can mitigate the damage to the switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting the amount of power through required for the switch to operate normally. This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.

• The DIS-200G-12PS switch supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.

• The DIS-200G-12PS switch supports the Auto Surveillance VLAN feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting their traffic from the rest of the network. This provides increased security of surveillance data, and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware while simultaneously reducing maintenance costs.

• The DIS-200G-12PS switch features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

• The DIS-200G-12PS is PoE-ready switch with a total PoE budget of 130 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations

• DIS-200G-12PS

Hardware Version

• A1

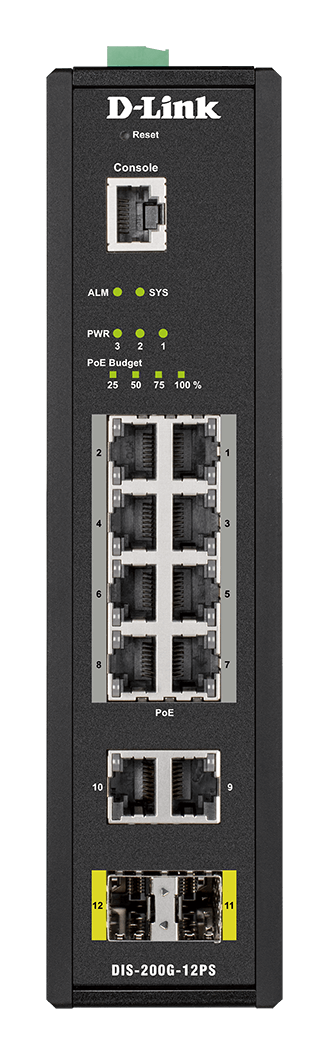

Number of Ports

• 8 x 10/100/1000BASE-T PoE ports
• 2 x 10/100/1000BASE-T ports
• 2 x SFP ports
• 1 x RJ-45 Console port

Port Functions

• IEEE 802.3 for Ethernet
• IEEE 802.3u for Fast Ethernet
• IEEE 802.3ab for Gigabit Ethernet
• IEEE 802.3z for Gigabit fiber
• IEEE 802.3af/at Power over Ethernet (DIS-200G-12PS/DIS-200G-12PSW)
• IEEE 802.3az-compliant

Media Interface Exchange

• Auto-MDI/MDIX adjustment for all twisted pair ports

Performance

Switching Capacity

• 24 Gbps

Maximum Forwarding Rate

• 17.85 Mpps

MAC Address Table Size

• Up to 8K entries

Transmission Method

• Store-and-forward

PoE

PoE Standard

• IEEE 802.3af/at

PoE Capable Ports

• Ports 1 to 8

PoE Power Budget

• Max 240W

Physical

Diagnostic LEDs

• SYS
• ALM
• PWR1/2/3
• Link/Activity/Speed
• PoE status
• PoE budget

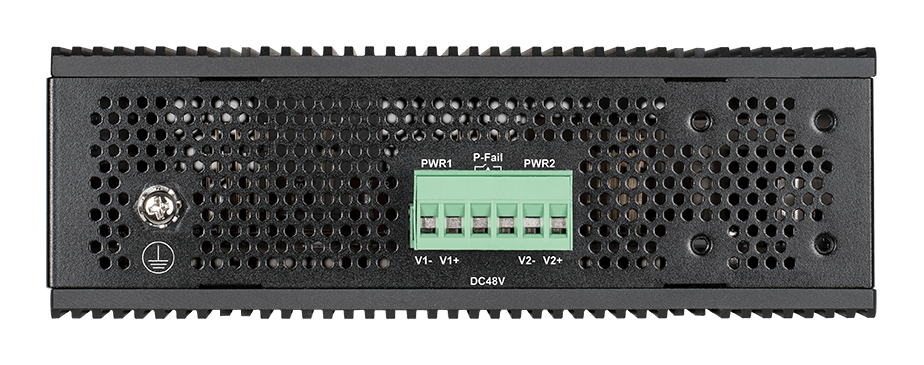

Power Input

• 48 V DC terminal block dual input

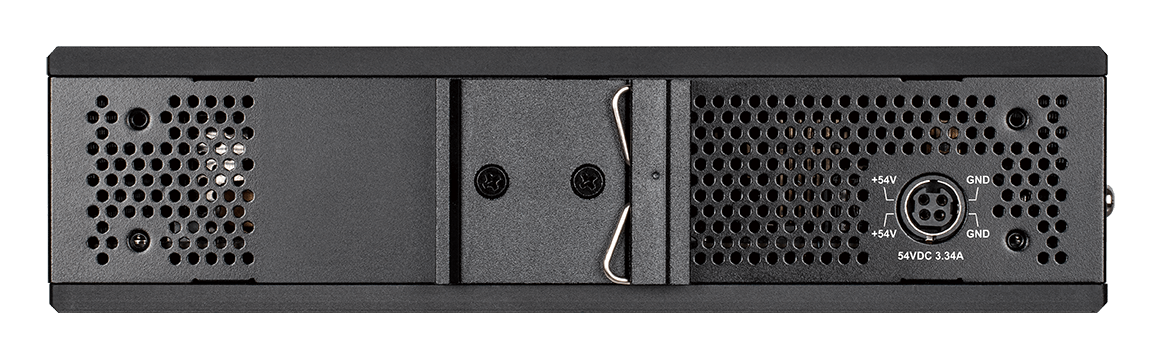

• 54 V DC 4-pin DIN single power input

Alarm Relay

• 1 A at 24 V

Dimensions

• 210 x 171.2 x 48 mm (8.27 x 6.74 x 1.89 inches)

Ventilation

• Fanless

Operating Temperature

• -40 to 65 °C (-40 to 149 °F)

Storage Temperature

• -40 to 85 °C (-40 to 185 °F)

Operating Humidity

• 0% to 95% RH, non-condensing

Storage Humidity

• 0% to 95% RH, non-condensing

Material

• IP30-rated metal casing

Installation

• DIN rail/wall/rack mountable

Certifications

• CE, FCC, BSMI

Safety

• UL60950-1

EMI

• CISPR 22, FCC Part 15B Class A

EMS

• EN 61000-4-2 ESD
• EN 61000-4-3 RS
• EN 61000-4-4 EFT
• EN 61000-4-5
• EN 61000-4-6 CS
• EN 61000-4-8

IEC Standards

• IEC 60068-2-27 Shock
• IEC 60068-2-32 Freefall
• IEC 60068-2-6 Vibration
