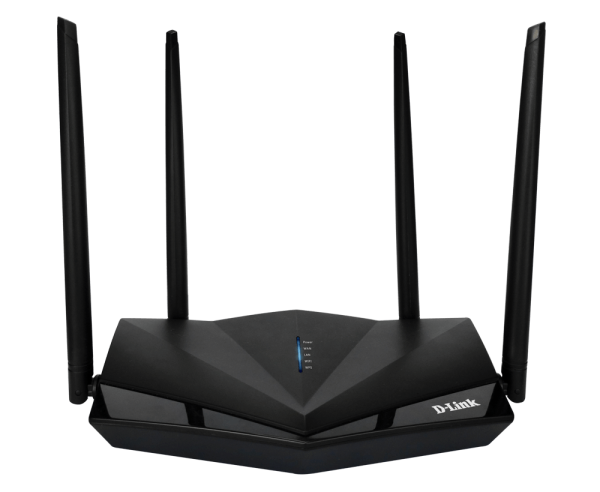

The DIR-650IN Wireless N300 Router is an attractive, high-performance router that makes it to share your broadband Internet connection with all your devices. Simply connect it to your broadband modem, then use the web-based Setup Wizard that guides you step by step through the configuration process. Whether you’re surfing the web on your desktop or relaxing on the couch with your laptop, the DIR-650IN keeps you connected wherever you are in your home.
A Fast and Reliable Home Network
The DIR-650IN creates a high-speed home network with wireless speeds of up to 300 Mbps for 1fast file transfers, seamless web surfing, and smooth video streaming. The external antennas increase your wireless network’s coverage so you can avoid “dead spots” and get a reliable connection in more places throughout your home. The DIR-650IN also has Repeater Mode, which allows you to extend the range of your existing wireless network, allowing you to reach the farthest corners of your home or small office.
Flexible Connectivity for Your Devices
The DIR-650IN keeps you connected, no matter whether you’re using a desktop or laptop PC, a smartphone, or a tablet. Three 10/100 Fast Ethernet ports provide fast and reliable connectivity for your wired devices, while Wireless N300 lets you connect all your wireless devices across your home. Get some work done on your desktop or check out online videos on your smartphone – the Wireless N300 Router lets you access the Internet with all your devices.
Easy to Set Up, Easy to Secure
Sharing your Internet connection doesn’t have to be a complicated process – open a web browser to access the Setup Wizard and follow the easy step-by-step instructions to get started. Create a secure network in seconds using Wi-Fi Protected Setup, which instantly creates a secure connection to a new device without the need to enter settings or create passwords.
Security Features to Keep Your Network Safe
Features:
Connectivity
- 10/100 Internet port to connect to broadband Internet with high transfer speeds
- Three 10/100 LAN ports to connect wired devices for high-speed online activities
- Latest Wireless N technology for increased speed and range
- Multiple Operating Modes:
Router | AP | Repeater | Client | WISP client/Repeater
Security
- NAT Firewall to control traffic and prevent exploits and intrusions
- Wi-Fi Protected Setup (WPS) to quickly and securely add devices to your network
- WPA/WPA2 encryption to secure your wireless traffic
Ease of Use
- Web browser-based setup and configuration
Setup wizard to guide you through the configuration process
Technical Specifications:
Hardware
Device Interfaces
- IEEE 802.11b/g/n
- 3 X 10/100 LAN ports
- 1 X 10/100 WAN (Internet) port Antenna
- 4 X 5dBi External Antenna
Standards
- IEEE 802.11n/g/b
- IEEE 802.3
- IEEE 802.3u
LEDs
- Power
- LAN
- WPS
- Internet
- Wi-Fi
Buttons - Power
- WPS/Reset
Minimum System Requirements
- Windows/Mac/Linux PC
- Microsoft Internet Explorer 6 or higher, Firefox 1.5 or higher, or other Java-enabled browser
- Network Interface Card Wired OR Wireless
- Cable or DSL Modem
- Subscription with an Internet Service Provider
Functionality:
Security
- WPA & WPA2 (Wi-Fi Protected Access)
- WEP 64/128 bit data encryption
- Wi-Fi Protected Setup (WPS)
Advanced Features
- Web Setup Wizard
- UPnP support
- Network Address Translation (NAT)
- Stateful Packet Inspection (SPI)
- MAC Address filtering
- QOS (bandwidth limitation)
- Port forwarding & DMZ
- Routing: Static, Dynamic (RIP1 / RIP2)
- Wireless Guest zone
- Multiple operating mode:
Router | AP | Repeater | Client | WISP client/Repeater - VPN Pass-through
- Internet Block / IP filter
- IPv6 support
- TR-069
- Wireless scheduling (Green AP)
- VLAN
Others:
Dimensions (LxWxH)
- 255.9 x 168 x 41.2 mm
Weight
- 294 grams
Power
- Input: 100 to 240 V AC, 50/60 Hz
- Consumption: 5 V / 1 A
Temperature
- Operating: 0 to 40 °C
- Storage: -40 to 70 °C
Humidity - Operating: 10% to 90% non-condensing
- Storage: 5% to 90% non-condensing
