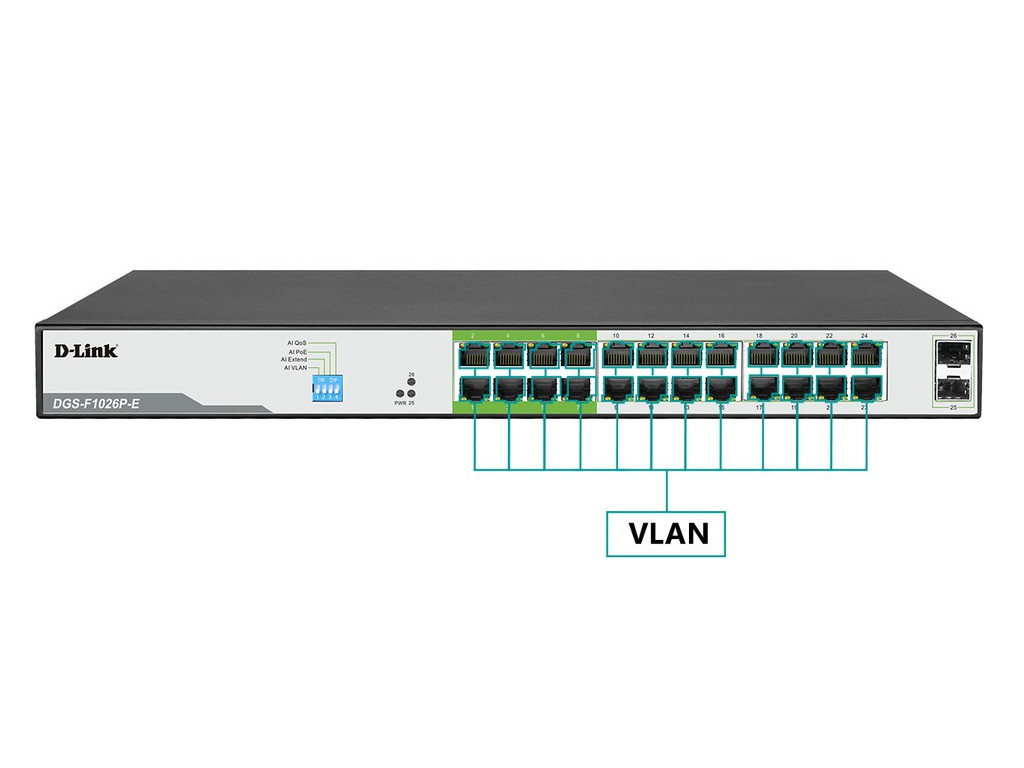

The D-Link DGS-F1026P-E Gigabit PoE Switch comes with 24 10/100/1000 Mbps PoE ports & 2 Gigabit SFP uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.
Power Over Ethernet
The DGS-F1026P-E supports both IEEE 802.3at and IEEE 802.3af PoE protocol. With a total PoE budget of 250 watts ,allowing users to attach an IEEE 802.3af-compliant device to the DGS-F1026P-E without requiring additional power. PoE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves.
Superior connectivity
- 24 10/100/1000Mbps ports
- 2 Gigabit SFP uplink ports
- 250 watts available for PoE
- Flow control for protection against data loss
- Maximum distance of 250m
Standards
- IEEE 802.3 1 0BASE-T Ethernet (twist-pair copper)
- IEEE 802.3u 1 00BASE-TX Fast Ethernet (twisted pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
- IEEE 802.3z 1000 BASE-X (fiber-optic)
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet
Easy to Use
- Plug-and-play installation
- IEEE 802.3x Flow Control
- Auto MDI I MDIX crossover for all ports
- Fanless device
Technical Specifications:
General
Network Interface
- 24 10/100/1000Mbps PoE RJ45 port (port 1 ~port 24)
- 2 Gigabit SFP Ports
Transmission Rate
- 10/100/1000Mbps Each port supports MDI / MDIX auto-flip auto-negotiation
- Network interface: 10BASE-T or 100BASE-TX, 1000 BASE-T Ethernet RJ-45 port
Protocol and Standards
- IEEE802.3 1 0BASE-T
- IEEE 802.3u lO0BASE-TX
- ANSI/IEEE 802.3 NWay auto-negotiation
Functionality:
Switching Capacity
• 52 Gbps
Packet Forwarding
- 38.688Mpps
LED’s Indicator PoE
- Power
- LINK/ACT, PoE
Budget
- 250W
Power
- 100-240VAC, 50-60Hz
Lightning Protection
- 6KV
Physical:
Physical Characteristics
- Dimensions (LxWxH): : 440 x 180 x 44mm
- Weight: 3kg
Environmental Parameter
- Operating Temperature: O to 40 °C (32 to 104 °F)
- Operating Humidity: 10% to 90% non-condensing
