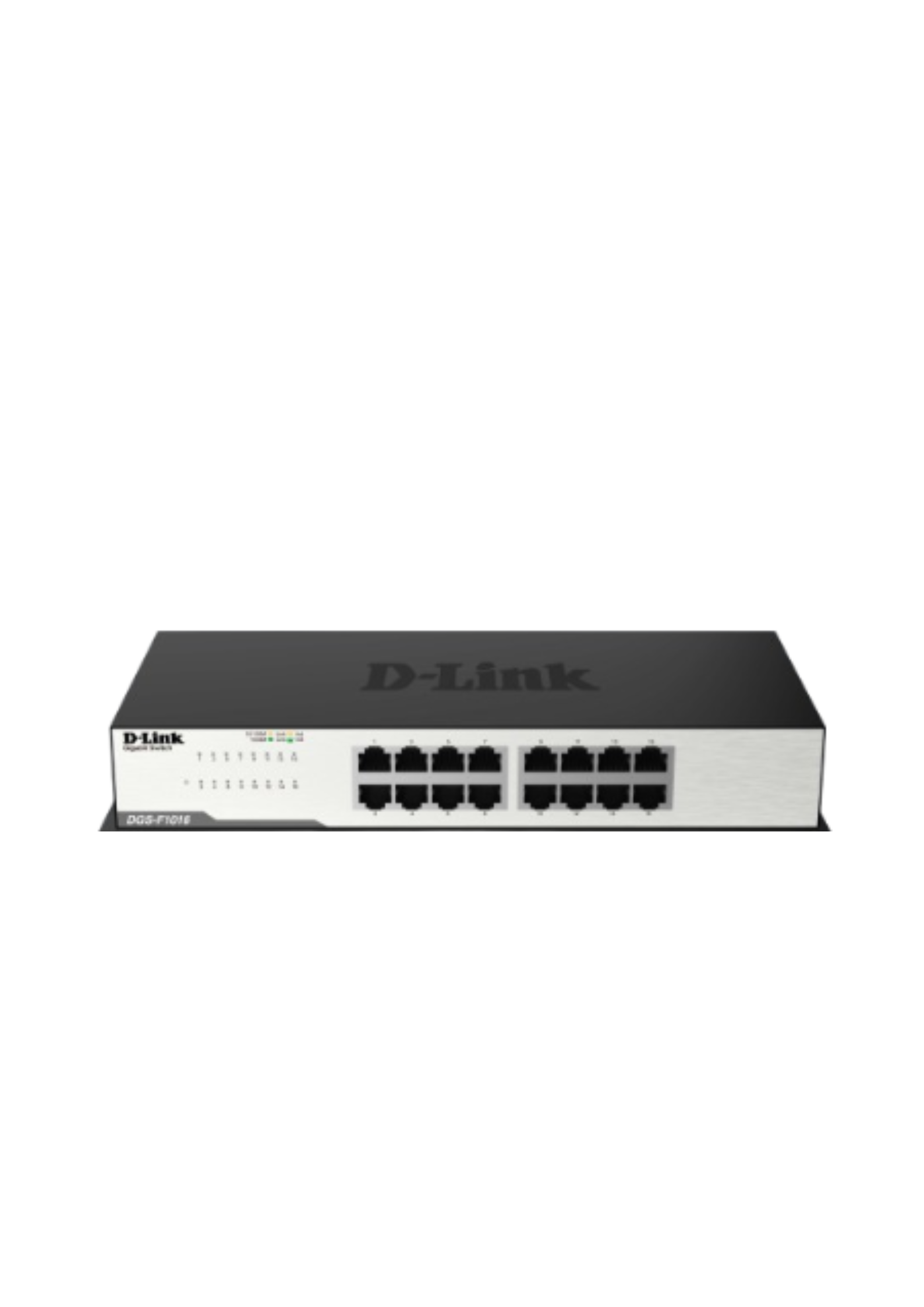

The DGS-F1016 10/100/1000 Mbps unmanaged switche is economical, plug-and-play networking switch solutions for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 10/100/1000 Mbps ports that enables you to easily expand your network and provides a quick way to upgrade your network to fast connectivity.
Features
Fast Connectivity
- Sixteen (DGS-F1016) Gigabit LAN ports for high-speed wired connections
- Plug-and-play installation for convenience
Energy-Efficient and Eco-Friendly
- Reduces power to a port when there is no traffic
- Optimizes power usage for a port for the length of cable connected to it
- Energy-efficient design reduces heat generated and allows switch to run silently
Upgrade to Gigabit Networking
- With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you’re ready to go.
Conserve Energy
- The DGS-F1016 supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
- The DGS-F1016 is plug-and-play devices that require no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Smooth Streaming
- The switch supports QoS, which prioritizes network traffic so that time sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.
Technical Specifications
General
Device Interface
- 16 x 10/100/1000 Mbps LAN ports
Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3x Flow Control
- IEEE 802.1p QoS
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
Functionality
Switching Capacity
- 32 Gbps
Advanced Features
- Auto-MDI/MDIX crossover for all ports
- Secure store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- Supports 9,216 bytes jumbo frames
- Back pressure at half-duplex operation
- Wire-speed reception and transmission
- Auto-negotiation for each port
- Quality of Service (8 queues, strict mode)
Data Transfer Rate
Ethernet
• 10 Mbps (half-duplex)
• 20 Mbps (full-duplex)
Fast Ethernet
• 100 Mbps (half-duplex)
• 200 Mbps (full-duplex)
• Gigabit Ethernet
• 2000 Mbps (full-duplex)
Transmission Method
- Store-and-forward
MAC Address Table Size
- 8,000 entries
Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
- 512 KB per device
Physical
LED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
Media Interface Exchange
- Auto-MDI/MDIX adjustment for all ports
Dimensions
- 280 x 126 x 44 mm (11.02 x 4.96 x 1.73 in)
Weight
- 0.87Kg
Power Input
- 12 V / 1 A
Power Consumption
- Standby: 3.7W
- Maximum: 9.5W
Temperature
- Operating: 0 to 40 °C (32 to 104 °F)
- Storage: -40 to 70 °C (-40 to 158 °F)
Humidity
- Operating: 10% to 90% non-condensing
- Storage: 5% to 95% non-condensing
Emissions (EMI)
- CE Class A
- FCC Class A
- VCCI Class A
- BSMI
- CCC
Safety
- UL
- CB
- LVD
- BSMI
- CCC
