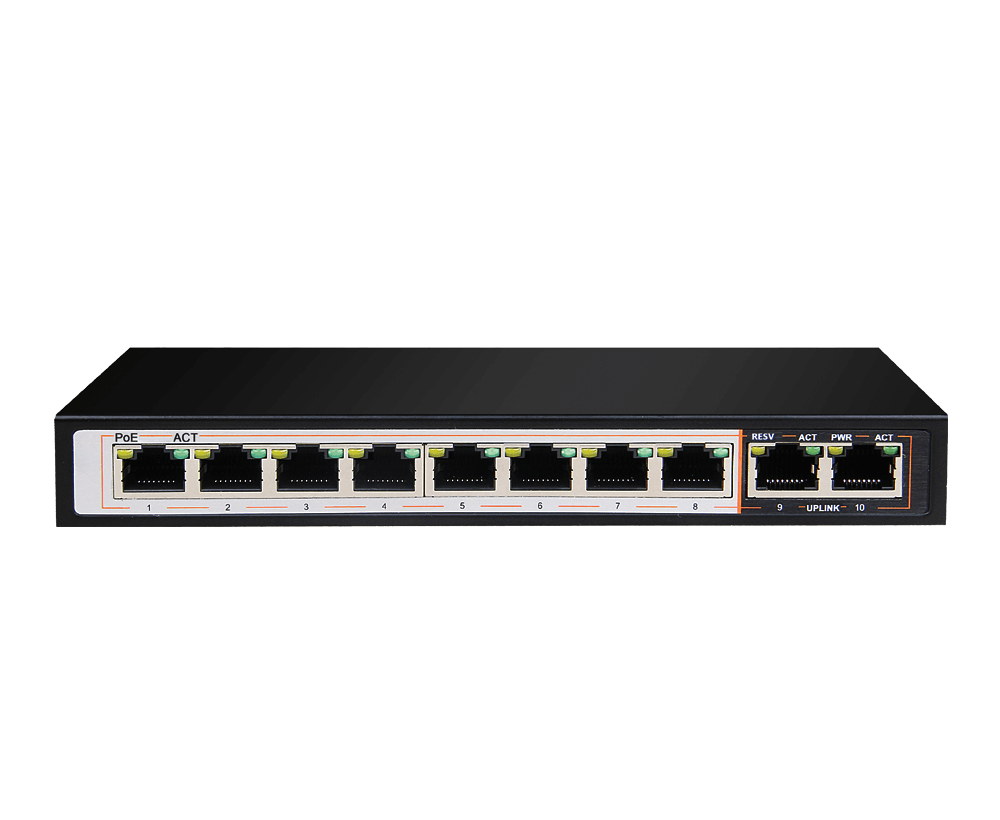

The D-Link DGS-F1010P-E is a 10 port Gigabit Switch with 8 Gigabit PoE ports, 2 Gigabit uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.
Features:
Superior connectivity
- 8 Gigabit PoE ports
- 2 Gigabit uplink port
- 96 watts available for PoE
- Flow control for protection against data loss
- Maximum distance of 250m
Standards
- IEEE 802.3 10BASE-T Ethernet (twist-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet
Easy to Use
- Plug-and-play installation
- IEEE 802.3x Flow Control
- Auto MDI I MDIX crossover for all ports
- Fanless device
Technical Specifications:
General:
Network Interface
- 8 Gigabit PoE RJ45 port (port 1 ~port 8)
- 2 Gigabit uplink RJ45 port (port 9~port 10)
Transmission Rate
- 10/100/1000Mbps Each port supports MDI / MDIX auto-flip and auto-negotiation
- • Network interface:lOBASE-T,lO0BASE-TX, 1000BASE-T Ethernet RJ-45 port
Protocols and Standards
- IEEE802.3 10BASE-T
- IEEE 802.3u lO0BASE-TX
- IEEE 802.3ab 1000BASE-T
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE802.3x Flow Control
- IEEE 802.3af/at standard
Functionality;
Switching Capacity
• 20 Gbps
Forwarding Rate
- 1OM: 14,800pps
- 1QOM: 148,800pps
- 1000M: 1,488,000pps
LED’s Indicator
- Power
- LINK/ACT, PoE
PoE Budget
- 96W
Power
- External Power adapter: 100-240 ~ 50/60Hz, 52V/1.85A
Lightning protection
- 6KV
Physical:
Physical Characteristics
- Dimensions (LxWxH): 184 x 94 x 27mm
- Weight: 0.95kg
Environmental Parameter
- Operating Temperature: O to 40 °C (32 to 104 °F)
- Operating Humidity: 10% to 90% non-condensing
Advanced Features
Long-Distance Transmission with Surge Protection
- With high distance connectivity, ideal for surveillance solution. Can be used with cat5e or cat6 cable. The DGS-F1010P-E features four 10/100BASE-TX ports that support the IEEE 802.3af/at PoE protocol. With total power budget of 120W.
Easy Deployment and PoE Convenience
- The DGS-F1010P-E is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.
Different Switch working mode
The DGS-F1010P-E switch works in 4 operating modes using DIP switch
- VLAN: Isolating ports each other, restrain network storms effectively and improve network performance
- EXTEND: Supports 250meters long distance power supply (recommended cat 5 or above)
- PoE: Automatic detection power of port, power off and restart the device if find PD device crash
- QoS: Customize application prioritization and increase network sensitivity. For example, video priority, monitoring transmission more smoothly
