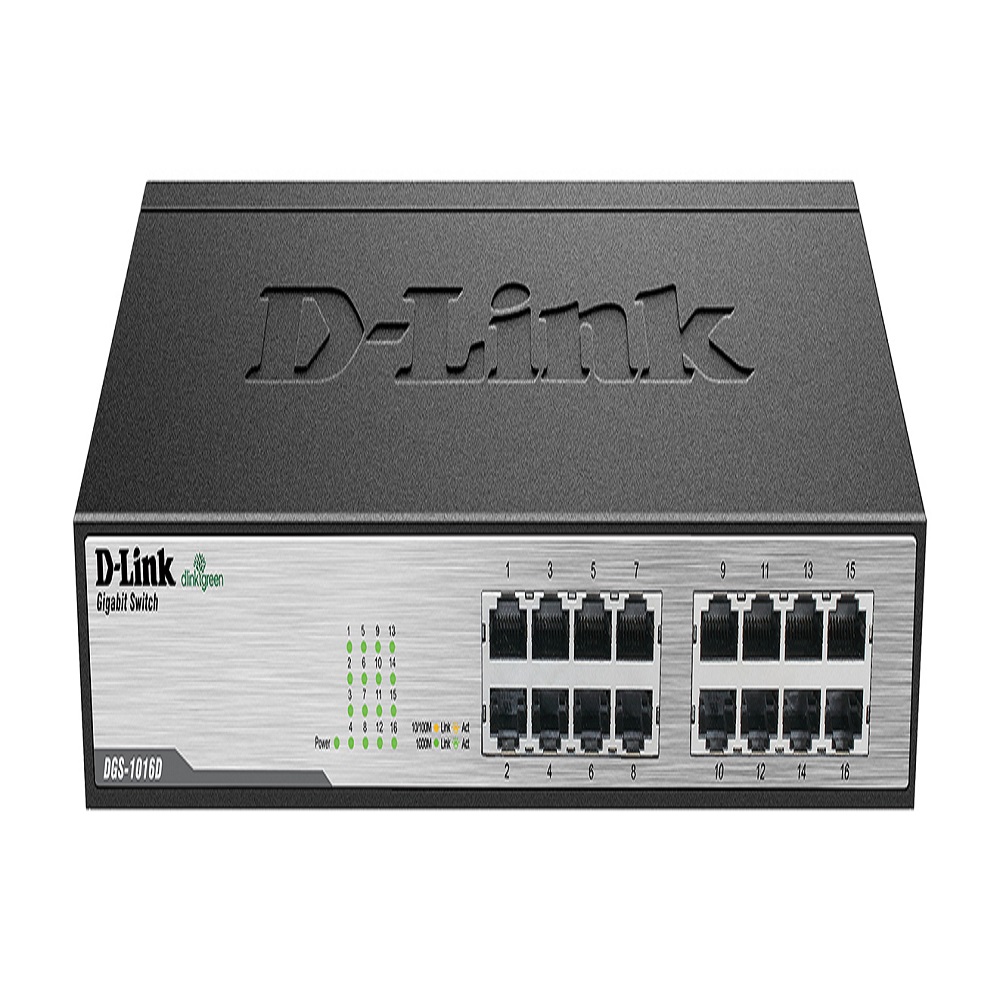

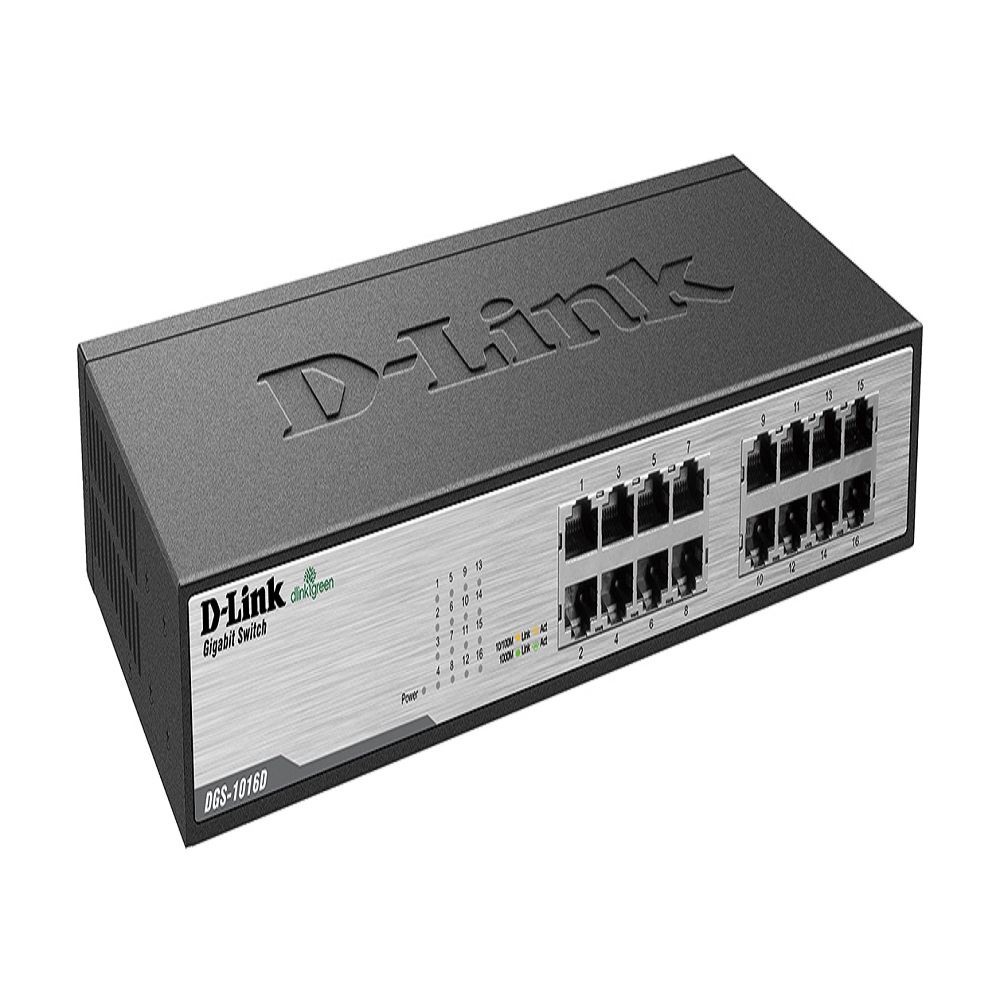

:The D-Link 16-Port Gigabit Switch (DGS-1016D) delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Users in the office, work group, or creative production environment can now transfer large bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network without hesitation. The versatile and compact 1RU height design of the DGS-1016D enables the device to be rack mounted in a standard 19-inch rack while conserving valuable rack space.
Power Packed
Featuring non-blocking switching architecture, the DGS-1016D filters and forwards packets at wire speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x flow control for full-duplex mode, and back pressure flow control for half-duplex mode alleviate traffic congestion and ensure reliable data transmission. Designed using industry standards, the DGS-1016D is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices. The DGS-1016D protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.
Easy to Install and Maintain
This switch was designed for Plug-and-Play and hassle-free installation. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000Mbps) and intelligently adjusts for compatibility and optimal performance. It also features diagnostic LEDs that display status and activity, allowing you to quickly detect and correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable-related problems.
802.1p Quality of Service
The DGS-1016D supports 802.1p Quality of Service (QoS). When the switch receives a frame tagged with 802.1p priority, it automatically places it into one of four priority queues. Priority queuing is especially beneficial when streaming voice and video on your network.
Think Green
D-Link Greenā¢ technology implements power-saving features to help make your network environmentally friendly without compromising performance.
The DGS-1016D automatically powers down ports that have no link and budgets power output for different Ethernet cable lengths. It also complies with the EUās RoHS directive, restricting the use of certain hazardous materials.
Features
Architecture
- 32Gbps Switching Capacity
- Non-blocking Architecture
- 8K MAC Address Table
- 802.1p Priority Queuing
- Jumbo Frame Support (Up to 9600Bytes)
Operational Simplicity
- True Plug-and-Play
- Auto-negotiation
- Auto Cable Detection (MDI/MDI-X)
- Cable Diagnostic Function
- At-A-Glance Port LED Indicators
- Desktop/Rack-mountable
Investment Protection
- Support for Industry Standards
- Limited Lifetime Warranty3
D-Link Greenā¢
- Automatically Powers Down Ports That Have No Link
- Budgets Power Output for Different Ethernet Cable Lengths
Technical Specifications:
Product Specifications:
MAC Address Table Size
- 8K
Switch Fabric
- 32Gbps Forwarding Capacity
Transmission Method
- Store-and-Forward
Diagnostic LEDs
- Per Unit: Power
- Per Port: Activity/Link, Speed
Packet Buffer Memory
- 512KBytes Buffer Memory per Device
QoS
- 802.1p (4 Queues)
Acoustics
- 0db
Maximum Power Consumption
- 13.4W
MTBF
- 859,898 Hours
Interface Options:
RJ-45
- 10BASE-T, 100BASE-TX, AND 1000BASE-T
Network Protocols and Standards:
IEEE
802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control, 802.3ab Gigabit Ethernet, 802.1p QoS
Electrical & Emissions:
Emissions
- FCC Class A, CE Class A

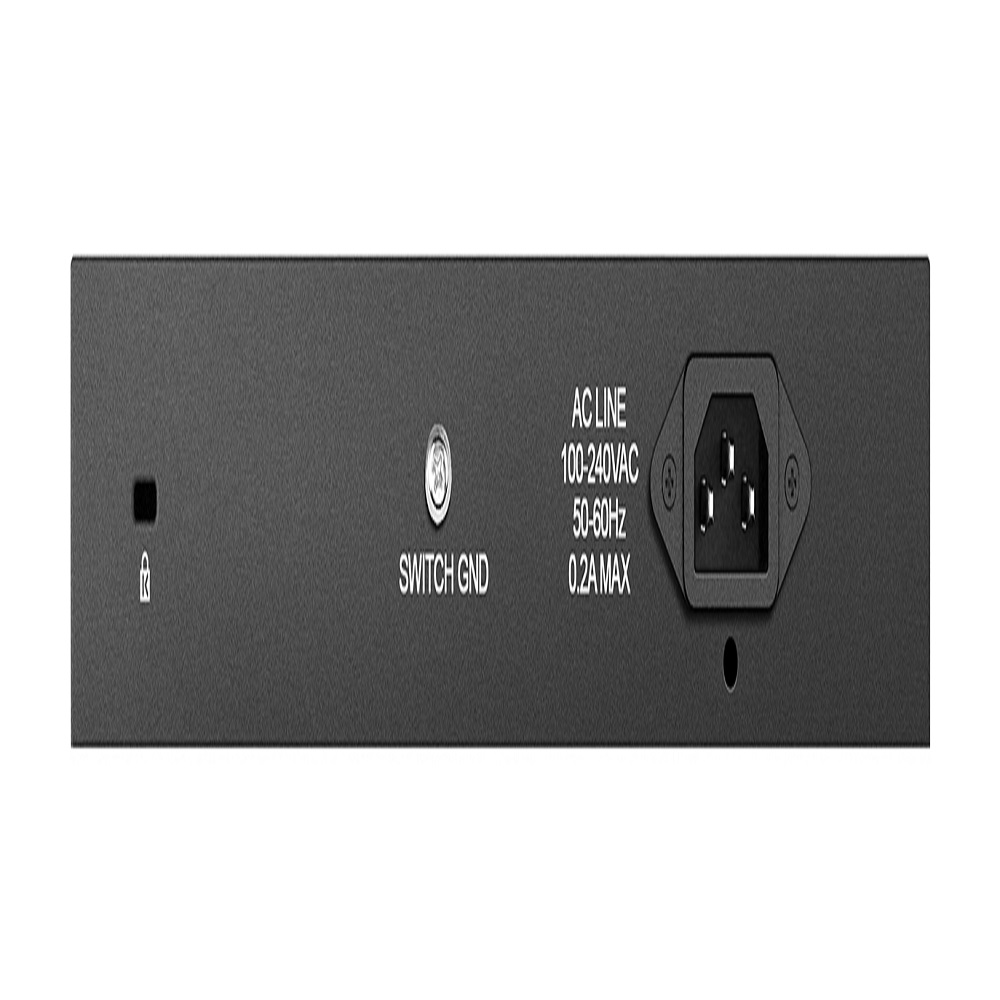

Power Supply
- 100-240VAC, 50/60Hz Internal Universal Power
Environmental
- RoHS Compliant
Safety and Environmental:
Safety
- CSA, NRTL/C
Temperature
- Operating: 32Ā° to 104Ā°F (0Ā° to 40Ā°C)
- Storage: 14Ā° to 131Ā°F (-10Ā° to 55Ā°C)
Humidity
- Operating: 5% ~ 95% RH (Non-condensing)
Physical Specifications:
Dimensions
- (W x D x H) 11in x 7.1in x 1.75in (279.4mm x 180.3mm x 44.45mm)
Weight
- 3.64 lbs (1.65 kg)
