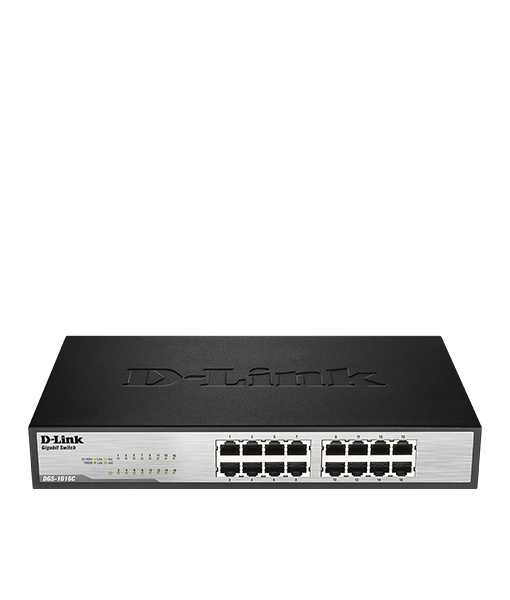

The DGS-1016C and DGS-1024C 10/100/1000 Mbps unmanaged switches are economical, plug-and-play networking switch solutions for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. They provide 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Features:

Fast Connectivity

• Sixteen or twenty-four (DGS-1016C/DGS-1024C)
  Gigabit LAN ports for high-speed wired
  connections
• Plug-and-play installation for convenience

Energy-Efficient and Eco-Friendly

• Reduces power to a port when there is no traffic
• Optimizes power usage for a port for the length
  of cable connected to it
• Energy-efficient design reduces heat generated
  and allows switch to run silently

Upgrade to Gigabit Networking

• With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you’re ready to go.

Conserve Energy

• The DGS-1016C and DGS-1024C support IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage
  substantially. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

• The DGS-1016C and DGS-1024C are plug-and-play devices that require no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Innovative Design

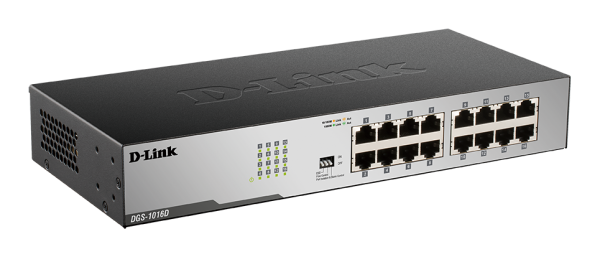

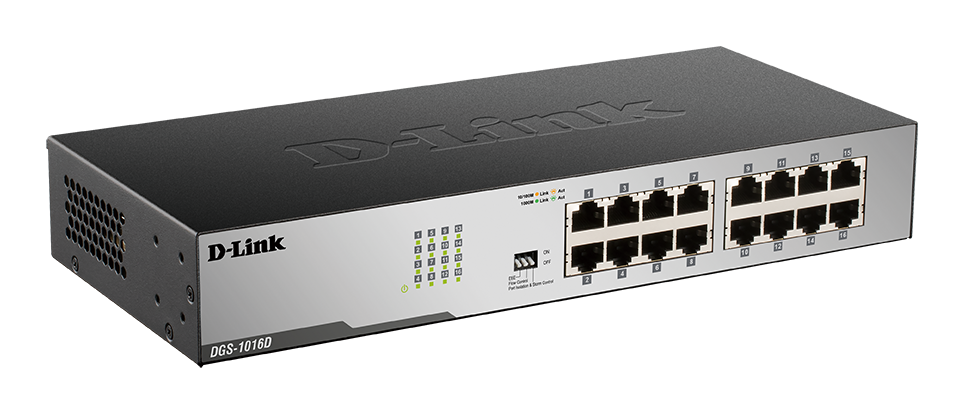

• The DGS-1016D feature a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 16-Port Gigabit Unmanaged Switch series is small, lightweight, wall-mountable, and is ideal for any business with demanding requirements and a small budget.Green Technology
• The 16-Port Gigabit Unmanaged Switch series helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimise the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.

Technical Specifications:

Device Interface

• 16 x 10/100/1000 Mbps LAN ports

Standards

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Functionality:

Switching Capacity

• 32 Gbps

Advanced Features

• Auto-MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 9,216 bytes jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Auto-negotiation for each port
• Quality of Service (8 queues, strict mode)

Data Transfer Rates

Ethernet
•10 Mbps (half-duplex)
• 20 Mbps (full-duplex)
Fast Ethernet:
• 100 Mbps (half-duplex)
• 200 Mbps (full-duplex)
Gigabit Ethernet
• 2000 Mbps (full-duplex

Transmission Method

• Store-and-forward

MAC Address Table Size

• 8,000 entries

Packet Filtering/Forwarding Rate

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer

• 512 KB per device

Physical:

LED Indicators

• Per port: Link/Activity/Speed
• Per device: Power

Media Interface Exchange

• Auto-MDI/MDIX adjustment for all ports

Dimensions (W x D x H)

• 280 x 126 x 44 mm (11.02 x 4.96 x 1.73 in)

Weight

• 0.87 kg (1.92 lbs)

Power Input

• 12 V / 1 A

Power Consumption

• Standby: 4.1 W
• Maximum: 11.7 W

Temperature

• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -40 to 70 °C (-40 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

MTBF

• 305,171 hours

Maximum Heat Dissipation

• 39.92 BTU/h

Emissions(EMI)

• CE Class A
• FCC Class A
• VCCI Class A
• BSMI
• CCC

Safety

• UL
• CB
• LVD
• BSMI
• CCC

Awards

• Bronze Award
