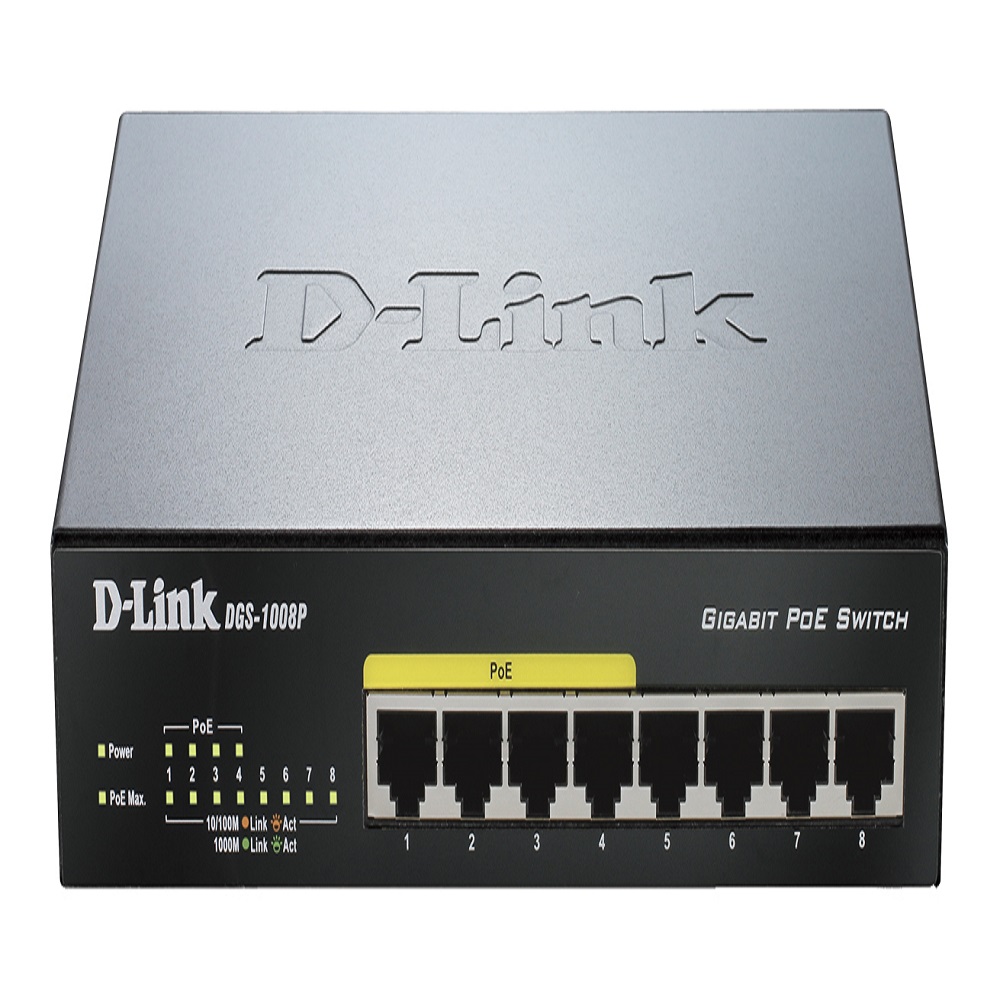

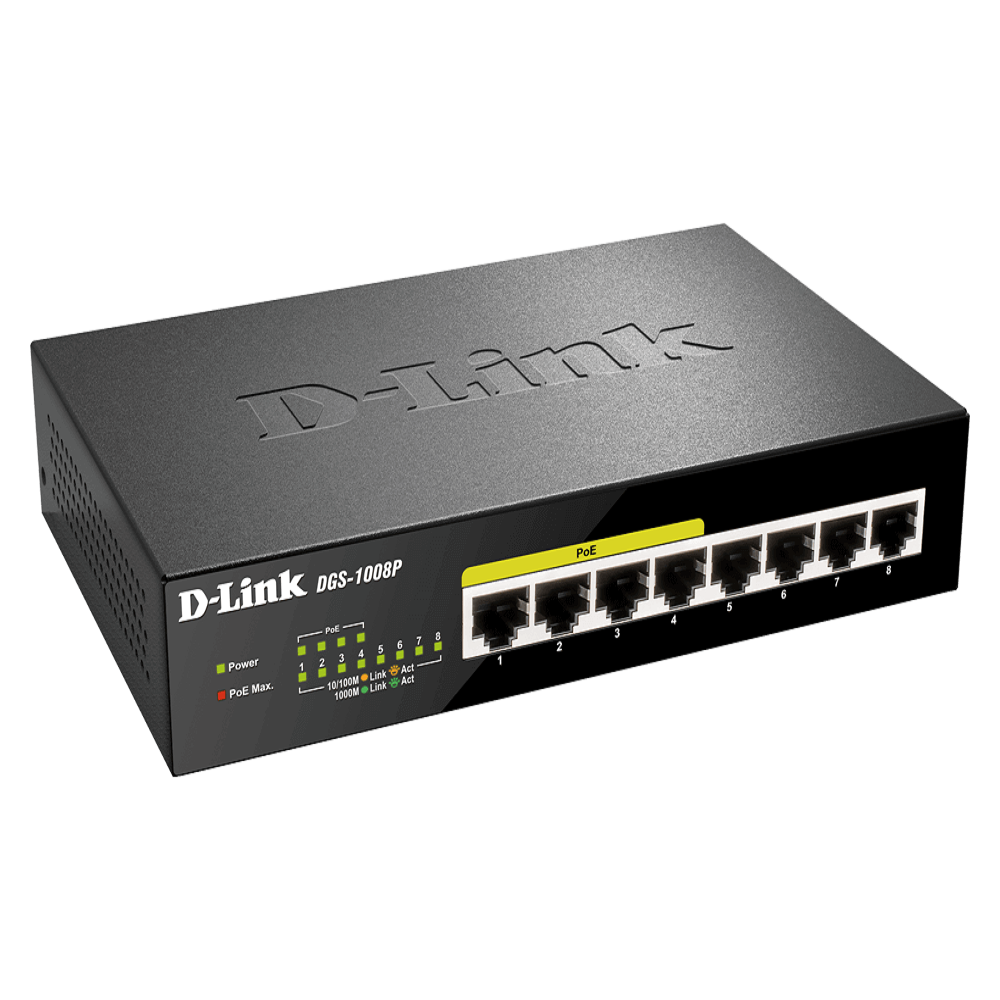

The D-Link DGS-1008P 8-Port Desktop Switch with 4 PoE Ports enables both home and office users to connect Power over Ethernet (PoE) devices such as Wireless Access Points (APs), IP cameras, and IP phones to the network. Built with home and small business users in mind, the DGS-1008P is compact and operates silently, making it ideal for virtually any room or office.
Power over Ethernet
The DGS-1008P features 4 10/100/1000BASE-T ports that support the IEEE 802.3at PoE protocol, supplying up to 30 watts on each PoE port and providing a total power budget of 68 watts. This allows compatible devices to be connected without requiring an additional power supply, saving on cabling and allowing devices to be installed in locations without immediate access to power outlets. When a device is not PoE-compatible, the D-Link DWL-P50 PoE Adapter can turn any regular Ethernet port into a PoE Ethernet port.
High Performance
The DGS-1008P features plug-and-play installation and no configuration is required. Auto MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-1008P maximizes network performance while minimizing the transmission of bad network packets.
Green Technology
The DGS-1008P features green technology, such as IEEE 802.3az Energy Efficient Ethernet (EEE), link status detection, and cable length detection. Energy Efficient Ethernet reduces power consumption of the switch when network utilization is low, reducing the cost of ownership during periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected, and cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.
Compact and Silent
The DGS-1008P has a compact design, meaning that it can be placed in almost any convenient location. This includes small offices and work spaces where space is at a premium. The desktop form factor provides everything you need to set up a new network, or expand an existing network by connecting it to other switches. The fanless design ensures silent operation, making the switch suitable for office spaces, work floors, and areas which are sensitive to noise, such as meeting rooms.
Features:
High-Speed Networking
- 8 10/100/1000 Mbps Gigabit Ethernet ports
- Full/half-duplex for Ethernet/Fast Ethernet and full-duplex Gigabit Ethernet speeds
Reliability
- IEEE 802.3x flow control
- Store-and-forward switching scheme
- RoHS compliant
Easy Setup
- Plug-and-play installation
Auto MDI/MDI-X crossover on all ports
Stylish Design
- Compact lightweight chassis
- Noise-free operation
PoE Functionality
- IEEE 802.3at/af compliant
- 68 watts total power budget
- Up to 30 watts power output per PoE port
Technical Specifications:
General:
Size
- Desktop
Interface
- 8 10/100/1000BASE-T
- 4 PoE
Standards
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x flow control
Media Interface Exchange
- Auto MDI/MDI-X adjustment on all ports
Performance:
Switching Fabric
- 16 Gbps switching fabric
Transmission Method
- Store-and-forward
Data Transfer Rates
- Gigabit Ethernet
- 2000 Mbps (full-duplex)
- Fast Ethernet
- 100 Mbps (half-duplex)
- 200 Mbps (full-duplex)
- Ethernet
- 10 Mbps (half-duplex)
- 20 Mbps (full-duplex)
Packet Filtering / Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
MAC Address Table
- 8K entries per device
RAM Buffer
- 256 KB per device
PoE:
PoE Standard
- IEEE 802.3at/af
PoE Capable Ports
- Ports 1 to 4
Power Budget
- 68 watts (30 watts max. per PoE port)
LEDs
- Power / PoE Max (per unit)
- Power / Status (per port)
- Activity / Link and Speed (per port)
Physical:
Weight
- 0.76 kg
Dimensions
- 190 x 120 x 38 mm (5.5 x 3.0 x 1.06 inch)

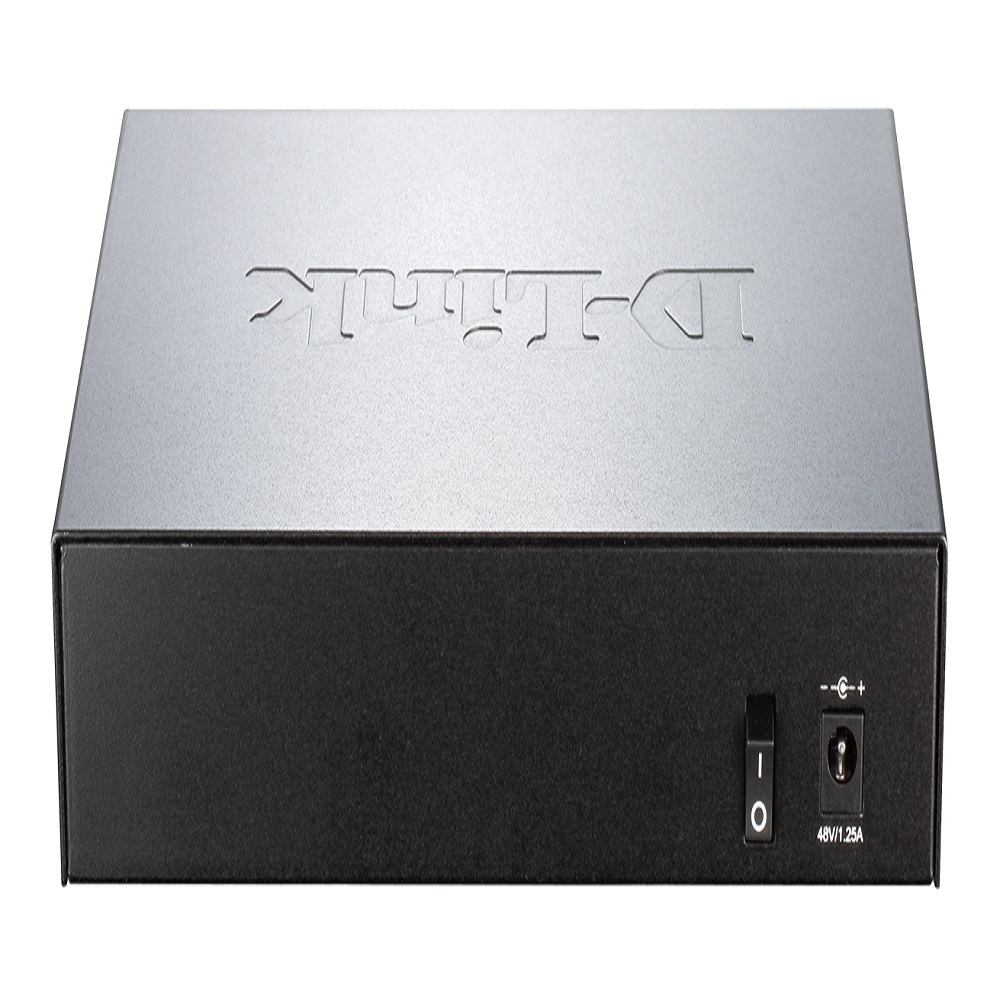

DC Input
- External 53.5 V / 1.5 A power adapter
Power Consumption
- 79.87 watts maximum (PoE on) • 9.3 watts maximum (PoE off)
Temperature
- Operating: 0 to 40 °C (32 to 104 °F) • Storage: -40 to 70 °C (-40 to 158 °F)
Humidity
- Operating: 0% to 95% RH non-condensing
Certifications:
Safety
- cUL
- CB
- LVD
- BSMI
EMI/EMC
- CE
- BSMI
- FCC
- VCCI
- RCM
