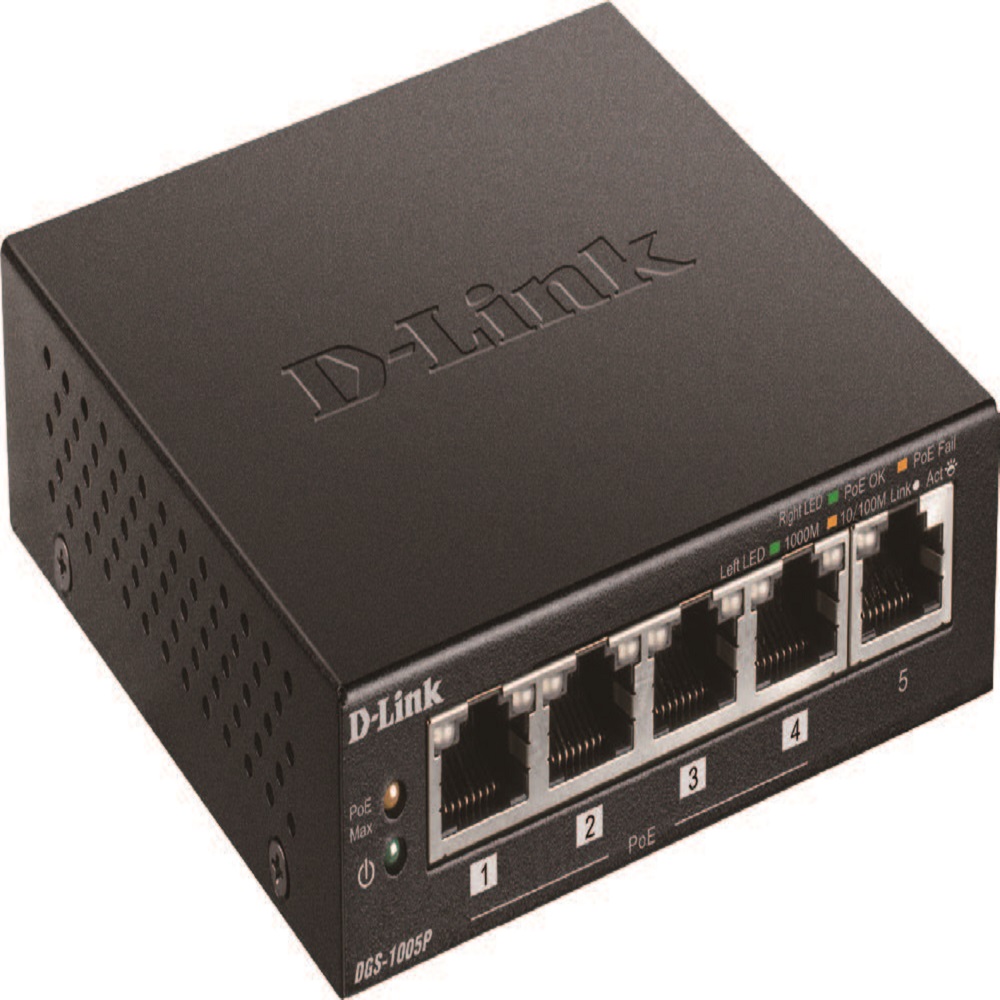

DGS-1005P D-Link 5-Port 10/100/1000Base-T with 4 PoE Ports Unmanaged Switch

Green Technology
The DGS-1005P features green technology such as IEEE 802.3az Energy Efficient Ethernet (EEE), link status detection, and cable length detection. EEE adjusts the power consumption of the switch based on network utilization, reducing the cost of ownership during periods of inactivity. Link status detection powers down ports when no links are detected, saving power when connected devices are shut down or disconnected. Cable length detection adjusts the power output of the port based on the cable length, reducing the power requirements of the switch.

Compact and Silent
The compact design of the DGS-1005P allows placement in most locations, including those where space is at a premium. The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noisesensitive areas such as workstations and meeting rooms.

Features:
High-Speed Networking

• Five 10/100/1000 Mbps Gigabit Ethernet ports
• Full/half-duplex for Ethernet/Fast Ethernet and full-duplex for Gigabit Ethernet speeds

Reliability

• IEEE 802.3x flow control
• Store-and-forward switching scheme
• RoHS-compliant

Easy Setup

• Plug-and-play installation
• Auto MDI/MDI-X crossover on all ports

Stylish Design

• Compact lightweight chassis
• Noise-free operation

PoE Functionality

• Four PoE ports
• IEEE 802.3af/at compliant
• 60 W total power budget
• Up to 30 W power output per PoE port

Technical Specifications
General
Size

• Desktop

Interfaces

• 5 10/100/1000BASE-T ports

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3x flow control
• IEEE 802.1p QoS
• ANSI/IEEE 802.3 NWay auto-negotiation

Media Interface Exchange

• Auto MDI/MDI-X adjustment on all ports

Performance
Switching Fabric:

• 10 Gbps

Transmission Method

• Store-and-forward

Data Transfer Rates

• Gigabit Ethernet
  • 2000 Mbps (full-duplex)
• Fast Ethernet
  • 100 Mbps (half-duplex)
  •  200 Mbps (full-duplex)
• Ethernet
  • 10 Mbps (half-duplex)
  • 20 Mbps (full-duplex)

Packet Filtering / Forwarding Rates

• 7.44 Mpps

MAC Address Table

• 2K entries per device

RAM Buffer

• 64 KB per device

PoE:
PoE Standards

• IEEE 802.3af
• IEEE 802.3at

PoE-Capable Ports

• Ports 1 to 4

Power Budget

• 60 W (30 W max. per PoE port)

LEDs

• Power / PoE Max (per unit)
• Power / Status (per port)
• Activity / Link and Speed (per port)

Physical:
Weight

• 0.26 kg (9.17 oz)

Dimensions

• 100 x 98 x 28 mm (3.94 x 3.86 x 1.10 in)

DC Input

• External 53.5 V / 1.2 A power adapter

Power Consumption

• 64.5 W maximum (PoE on)
• 3.08 W maximum (PoE off)
• 0.54 W (standby)

Temperature

• Operating: 0 to 40 ˚C (32 to 104 ˚F)
• Storage: -10 to 70 ˚C (-40 to 158 ˚F)

Humidity

• Operating: 0% to 95% RH non-condensing
• Storage: 0% to 95% RH non-condensing

Certifications:
Safety

• cUL
• CB
• LVD
• BSMI

EMI/EMC

• CE
• BSMI
• FCC
• VCCI
• RCM
