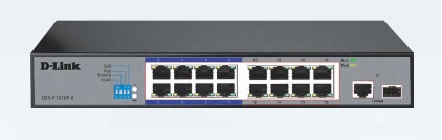

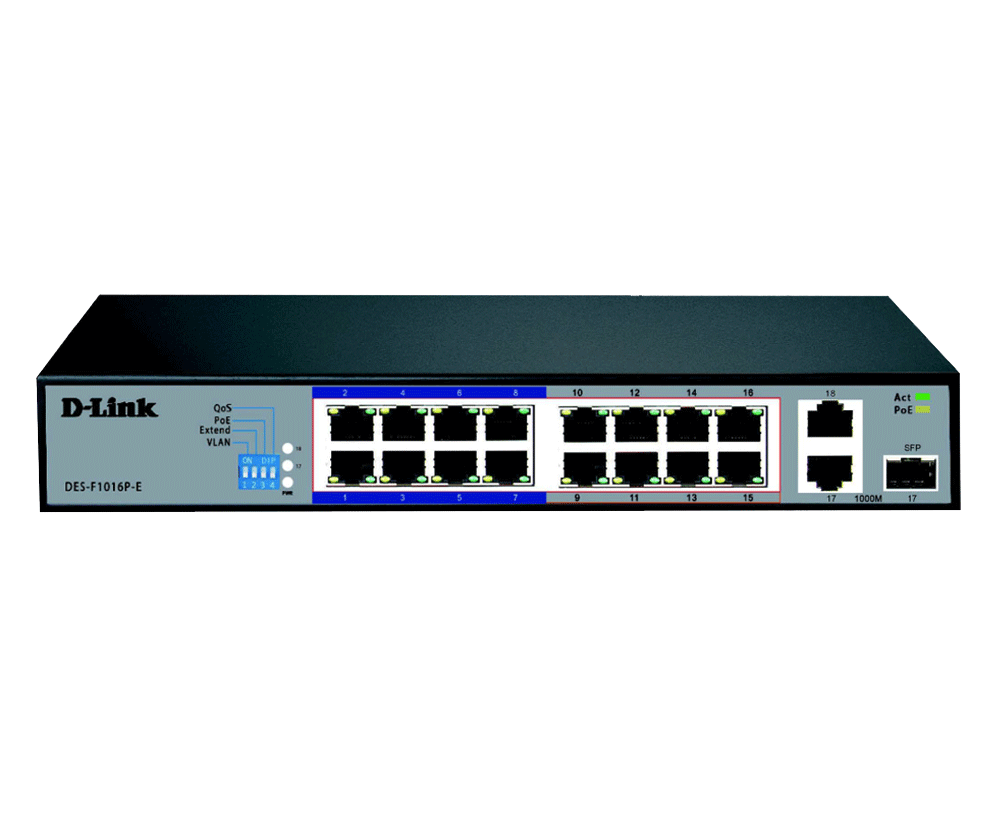

The D-Link DES-F1016P-E is a 16 port 100Mbps with 16 10/100 Mbps PoE ports, 2 Gigabit Ports with 1 Combo (RJ45/SFP) uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.
Power Over Ethernet
- The DES-Fl016P-E supports both IEEE 802.3at and IEEE 802.3af PoE protocol. With a total PoE budget of 150 watts ,allowing users to attach an IEEE 802.3af-compliant device to the DES-Fl016P-E without requiring additional power. PoE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves.
Features:
Superior connectivity
- 16 10/1 0OMbps Fast Ethernet ports
- 2 Gigabit Ports with 1 Combo (RJ45/SFP) uplink ports
- 150 watts available for PoE
- Flow control for protection against data loss
- Maximum distance of 250m
Standards
- IEEE 802.3 1 0BASE-T Ethernet (twist-pair copper)
- IEEE 802.3u 1 00BASE-TX Fast Ethernet (twisted pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
- IEEE 802.3z 1000 BASE-X (fiber-optic)
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet
Easy of Use
- Plug-and-play installation
- IEEE 802.3x Flow Control
- Auto MDI I MDIX crossover for all ports
Technical Specifications:
General
Network Interface
- 16 10/100Mbps PoE RJ45 port (port 1 ~port 16)
- 2 Gigabit Ports with 1 Combo RJ45/SFP Port (port 17)
Transmission Rate
- 10/100Mbps Each port supports MDI / MDIX auto-flip and auto-negotiation
- Network interface: lOBASE-T or lO0BASE-TX, 1000 BASE-T Ethernet RJ-45 port
Protocols and Standards
- IEEE802.3 1 0BASE-T
- IEEE 802.3u lO0BASE-TX
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE802.3ab 1000 BASE-T
- IEEE802.3z 1000 BASE-X
- IEEE802.3x Flow Control
- IEEE 802.3af/at standard
Functionality:
Switching Capacity
- 7.2 Gbps
Packet Forwarding
- 3.868Mpps
LED’s Indicator PoE
- Power
- LINK/ACT, PoE
Budget
- 150W
Power
- 100-240VAC, 50-60Hz
Lightning Protection
- 6KV
Physical:
Physical Characteristics
- Dimensions (LxWxH): 285 x 180 x 44mm
- Weight: 2.1kg
Environmental Parameter
- Operating Temperature: O to 40 °C (32 to 104 °F)
- Operating Humidity: 10% to 90% non-condensing
