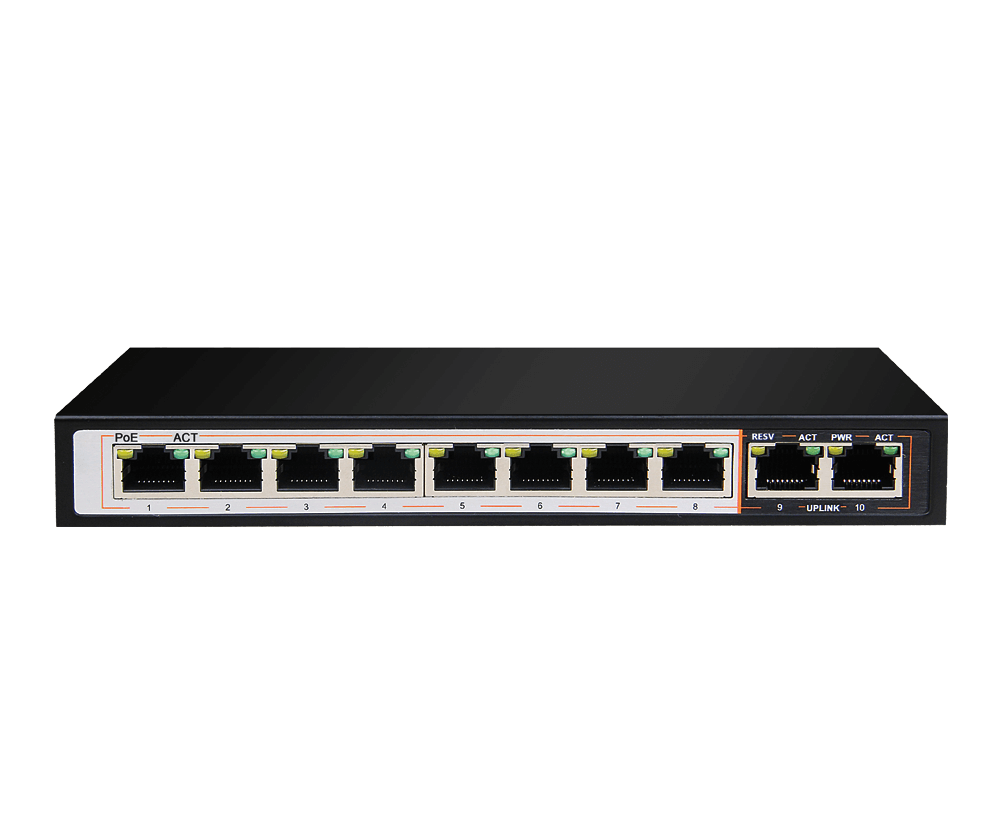

The D-Link DES-F1010P-E is a 10 port 100Mbps with 8 10/100 Mbps PoE ports, 2 10/l00Mbps uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras. D-Link DES-F1010P-E switch is enhanced with 6KV surge protection. This effectively protects the switch against sudden electrical surges caused by events such as lightning strikes or unstable electrical current.

Features

Superior connectivity

• 8 10/1 0OMbps Fast Ethernet ports
• 2 10/1 0OMbps uplink port
• 96 watts available for PoE
• Flow control for protection against data loss
• Maximum distance of 250m

Standards

• IEEE 802.3 1 0BASE-T Ethernet (twist-pair copper)
• IEEE 802.3u 1 00BASE-TX Fast Ethernet (twisted pair copper)
• IEEE 802.3af Power over Ethernet
• IEEE 802.3at Power over Ethernet

Easy to Use

• Plug-and-play installation
• IEEE 802.3x Flow Control
• Auto MDI I MDIX crossover for all ports
• Fanless device

Technical Specifications:

General

Network Interface

• 8 10/1 00Mbps PoE RJ45 port (port 1 ~port 8)
• 2 10/1 00Mbps uplink RJ45 port (port 9~port 10)

Transmission Rate

• 10/1 00Mbps Each port supports MDI / MDIX auto-flip and auto-negotiation
• Network interface:lOBASE-T or lO0BASE-TX Ethernet RJ-45 port

Protocol and Standards

• IEEE802.3 1 0BASE-T
• IEEE 802.3u lO0BASE-TX
• IEEE802.3x Flow Control
• IEEE 802.3af/at standard
• ANSI/IEEE 802.3 NWay auto-negotiation

Functionality:

Switching Capacity

• 2 Gbps

Forwarding Rate

• 1 OM: 14,800pps
• 1 QOM: 148,800pps

LED’s Indicator

• Power
• LINK/ACT, PoE

PoE Budget

• 96W

Power

• External Power adapter: 100-240 ~ 50/60Hz, 52V/1.85A

Lightning Protection

• 6KV

Physical:

Physical Characteristics

• Dimensions (LxWxH): 184 x 94 x 27mm
• Weight: 0.95kg

Environmental Parameter

• Operating Temperature: O to 40 °C (32 to 104 °F)
• Operating Humidity: 10% to 90% non-condensing

Advanced Features:

• 6KV Surge Protection: D-Link DES-F1010P-E switch is enhanced with 6KV surge protection. This effectively protects the switch against sudden electrical surges caused by events such as lightning strikes or unstable electrical current. Built-in 6 kV surge protection significantly reduces the chances of equipment being damaged from electrical surges, and effectively lowers maintenance costs by minimizing the need for expensive equipment repairs or replacement.
• Enhanced with VLAN Function: With a flick of button you can isolate switch ports from each other, but still allowing the devices to communicate via the uplink ports. This feature not only adds security but can also effectively suppress network storms and improve network performance
• Enhanced with Qos: The DES-1010P-E switch performance is enhanced with QoS (Quality of Service) feature to ensure that critical network services such as IP surveillance, VoIP, IPTV are always given high priority. This feature makes the switch a perfect solution for IP Camera/CCTV applications.
• Intelligent Detection: With AI PoE feature enabled the switch can automatically detect an unresponsive PoE device and reboot the devices in order to recover it.
