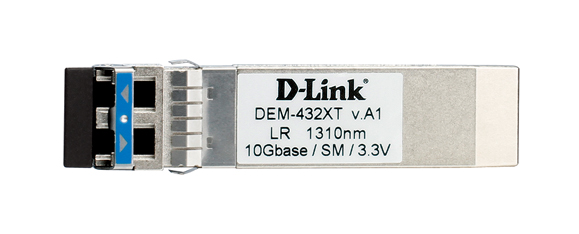

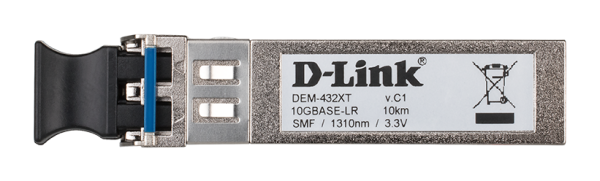

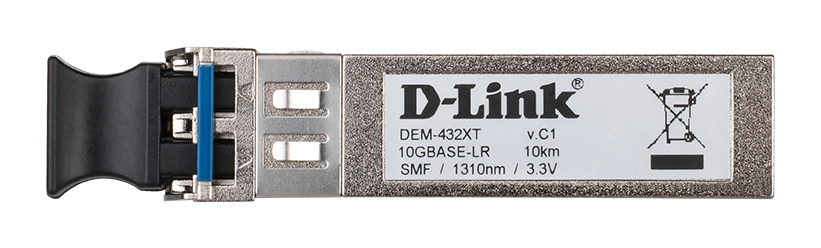

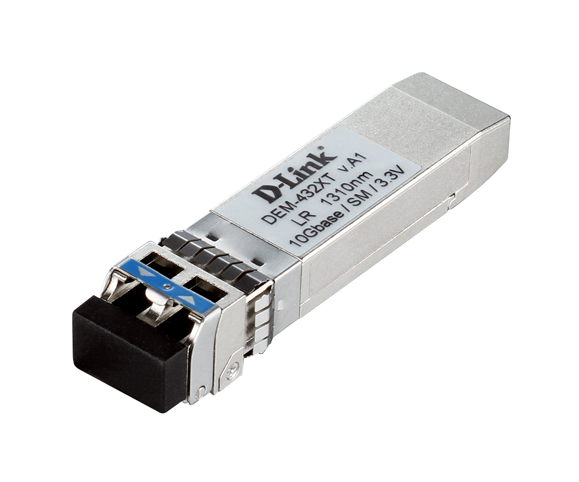

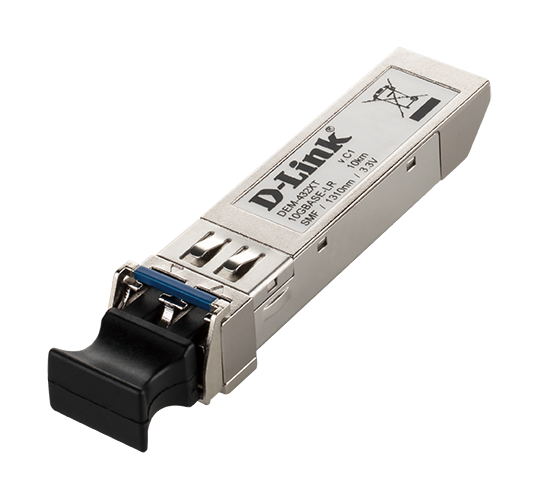

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. They are hot pluggable and
Enhanced Small Form Factor Pluggable (SFP+) compliant with the Multi Source Agreement (MSA) specification.
Technical Specifications
Speed
- 10 Gbps
Standard:
- Standard Compliance: IEEE-802.3ae
10GBASE-SR - Form Factor Type: SFP+
- Fiber Channel FC-PI Standard: 1200-SM-LL-L
- Fiber Media Support: Single-Mode
- Distance Capacity:10 km
Interface:
- Connector: Duplex LC Connector
- Wavelength: 1310 nm
- Output Optical Power (TX Optical Power): Max.: 0.5 dBm
Min.: -8.5 dBm - Input Optical Power(RX Optical Power): Max.: 0.5 dBm
Min.: -8.5 dBm - Sensitivity: -12.6 dBm
- Cable Type: Single-mode 9/125 um fiber
Operating
- Power: 3.3 V
- Maximum Input Current: 3.3 V: 300 mA
- Minimum Power Budget: 4.1 dB
- Maximum Power Budget: 10.1 dB
- Heat Generated: 3.6 kJ/h
Function
- MTBF (Hours): 4,650,000
Physical and Environment
- Operating Temperature: 0 to 70 °C
- Storage Temperature: 40 to 85 °C
- Operating Humidity: 5 to 85%
- Storage Humidity: 5 to 95%
- Dimensions (W x D x H): (0.58 x 2.22 x 0.47 inches)
Compliant with SFF8432,14.8 x 56.5 x 11.85 mm - Weight: 19.5 g (0.04 lbs)
Emission(EMI) and Safety
- EMI: CE, FCC, VCCI
- Safety: UL, TUV, CDRH
