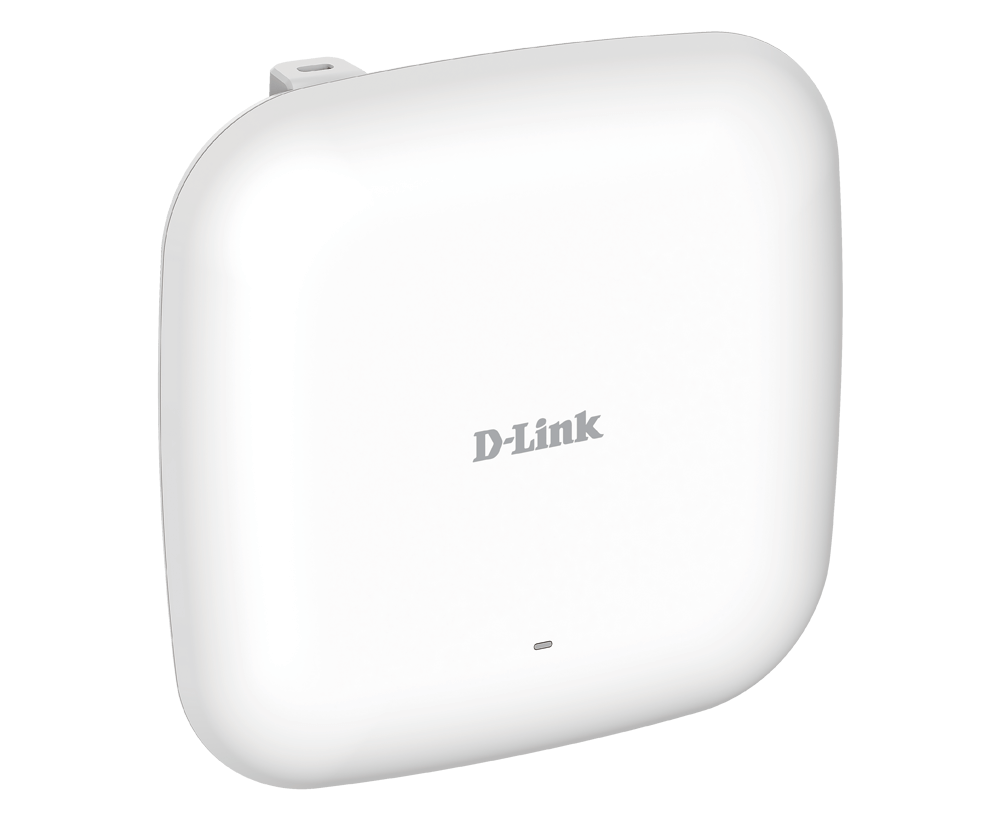

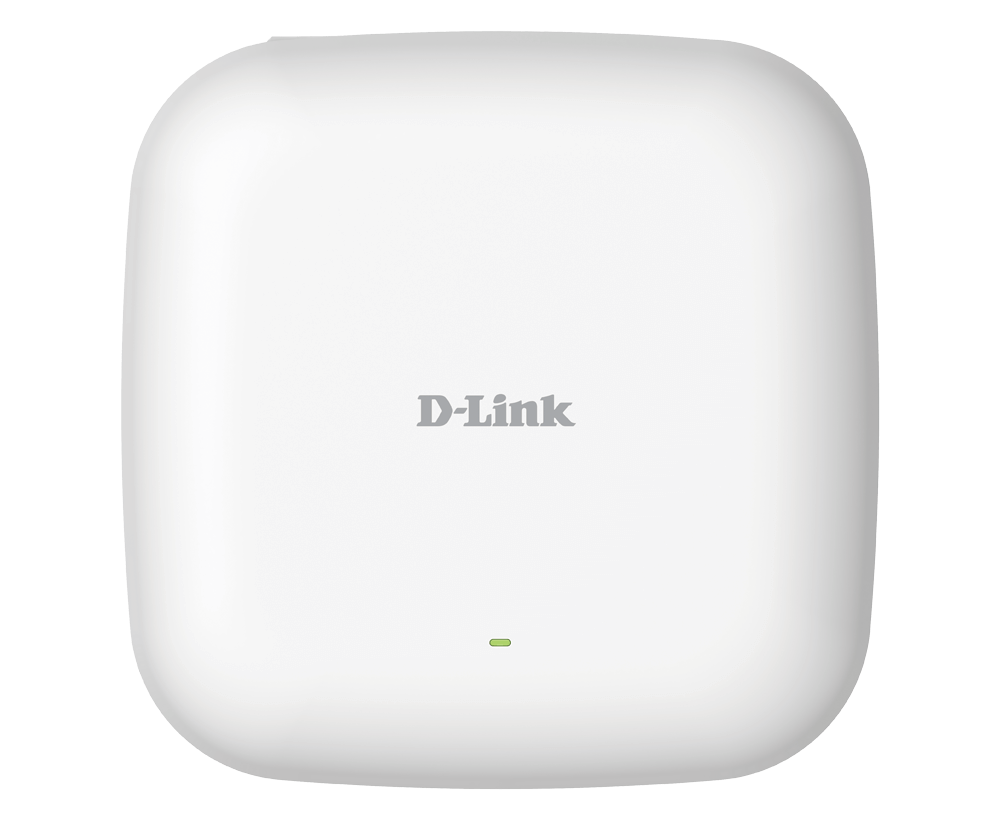

The Wi-Fi 6-ready DAP-X2850 is on hand to provide unbeatable speeds, greatly increased capacity and interference-free coverage, paired with easy management by Nuclias Connect.
Take a Load Off and Let Your AP do the Hard Work
The DAP-X2850’s Load Balancing feature spreads the work load between two or more Access Points to get optimal resource utilization, throughput and response time, while Airtime Fairness helps distribute equal amounts of air time to each connected client. Band Steering auto-connects devices such as smart phones and tablets to the higher-capacity 5 GHz band while allowing devices 2.4 GHz-ready to remain. The result is a steady, consistent connection for each user – the perfect balancing act.
No-Wait Wi-Fi Even at Peak Time with MU-MIMO
Equipped with the latest 802.11ax MU-MIMO technology and 3600 Mbps throughput, delivering exceptional connectivity to more users and devices just got a lot easier. Your network will not balk, even at the busiest of times.
Your Network, Future Proofed
Equipped with a 2.5 Gigabit Ethernet Port, the DAP-X2850 delivers exceptional multi-gigabit performance to support demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment. No need to run extra power lines, no added hassle when configuring your hardwiring and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.
Multi-Mode Makes the Most of your Network Capabilities
In order to achieve optimal network performance, the DAP-X2850 has several operational modes tailored to best fit the individual needs of your network. Access Point, Wireless Client, WDS (Wireless Distribution System), and WDS with Access Point modes allow for flexible, customizable deployment whatever your requirements.
Nuclias Connect
- Free-to-Download Management Software
- Inexpensive Hardware Controller
- Searchable Event Log and Change Log
- License-Free Access Points
- Traffic Reporting & Analytics
- Authentication via Customizable Captive Portal, 802.1x and RADIUS Server, POP3, LDAP, AD
- Backwards- Compatibility
- Multilingual Support
- Remote Config. & Batch Config.
- Multi-Tenant & Role-Based Administration
- Payment Gateway (Paypal) Integration and Front-Desk Ticket Management
- Intuitive Interface
Technical Specifications
General
Device Interfaces
1 x RJ45 console port, 1 x 2.5 Gbps Ethernet LAN (PoE), 1 x 10/100/1000 Mbps Ethernet LAN, factory reset, power input
LED
Power/Status
Antennas
4 x internal
Antenna Gain
3.5 dBi (2.4 GHz), 5.5 dBi (5 GHz)
Maximum Output Power
20 dBm (2.4 GHz), 22 dBm (5 GHz)
Data Signal Rate
Up to 3600 Mbps
Functionality
Standards
IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3u/ab, IEEE 802.3az Energy-Efficient Ethernet (EEE), IEEE 802.3at PoE
Operating Frequency
2.4 – 2.483 GHz, 5.15 – 5.35 GHz
Security Protocol
WPA/WPA2/WPA3™ Personal/Enterprise, WEP 64/128-bit, SSID broadcast disable, MAC address access control, internal RADIUS server
Software
Network Management
Telnet, SSH, Web (HTTP), Secure Socket Layer (SSL), Traffic control, D-Link Nuclias Connect
Physical
Power Supply
12 V / 2.5 A (optional power adapter), IEEE 802.3at PoE
Max. Power Consumption
19.44 W
MTBF
> 30,000 hours
