The DAP-3666 Nuclias Connect AC1200 Wave 2 Outdoor Access Point is designed to support small-to-medium businesses or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilizing the cutting-edge speed of Wireless AC. it delivers maximum combined wireless signal rates of up to 1200Mbps and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time.
Features:
Wireless Performance
- New-generation IEEE 802.11ac Wave 2 wireless
- High-speed 1200 Mbps throughput
- Dedicated Gigabit LAN port for a wired connection
- Powerful Wi-Fi MultimediaTM Quality of Service (QoS)
- Load balancing to optimize performance between Access Points
Trusted Security
- WPA/WPA2 Personal/Enterprise encryption
- 64/128 bit WEP
- MAC-based access filtering and WLAN partitioning
- Captive Portal with industry-standard authentication
- VLAN support for network segmentation
Extensive Management
- Powerful management, monitoring, and troubleshooting functionality with Nuclias Connect
- Flexible access through web (HTTP), SSL, SSH, and Telnet
- Multiple operation modes including Access Point, Wireless
- Distribution System (WDS), WDS with Access Point, and Wireless Client
- Wireless scheduling to manage access point activity
Versatile Installation
- Powered by IEEE 802.3af Power over Ethernet for remote installation
- Small form-factor for easy placement
- IP68 Water and Dust-Proof housing
- Weather Resistant to temperatures between -30 and 60°C
- Gore-Tex® Technology repels liquid water while allowing for heat and humidity dissipation
Technical Specifications:
General:
Device Interfaces
- 1 x IEEE 802.11a/b/g/n/ac Wave 2 wireless2

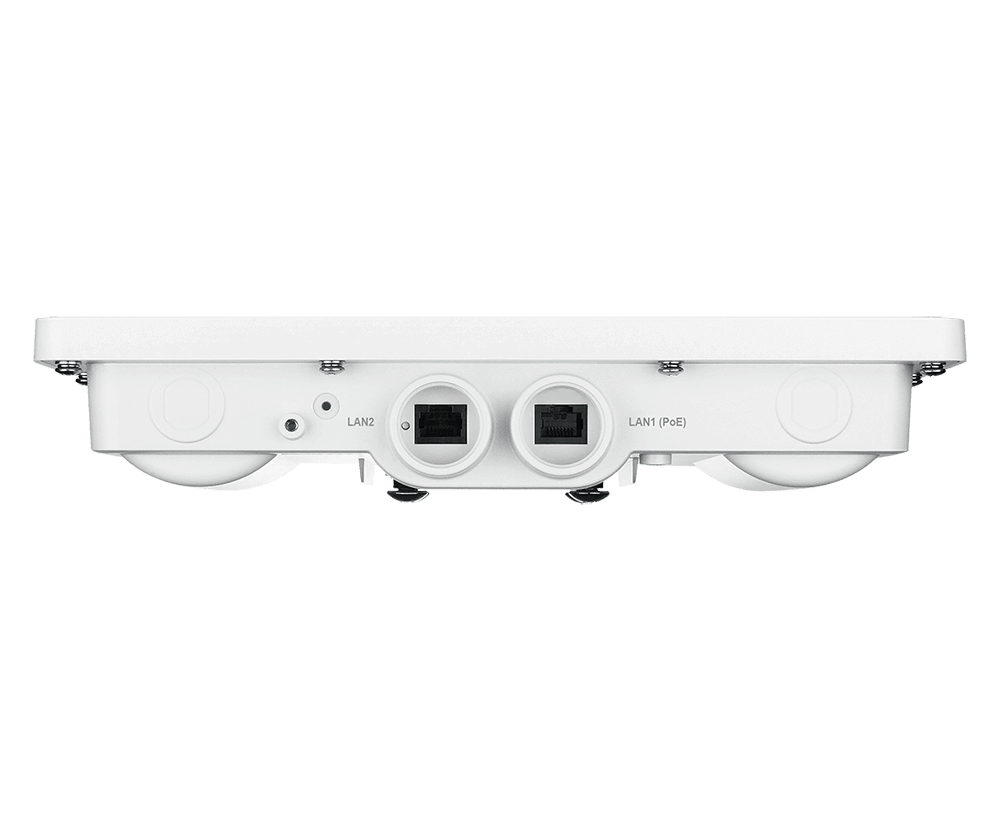

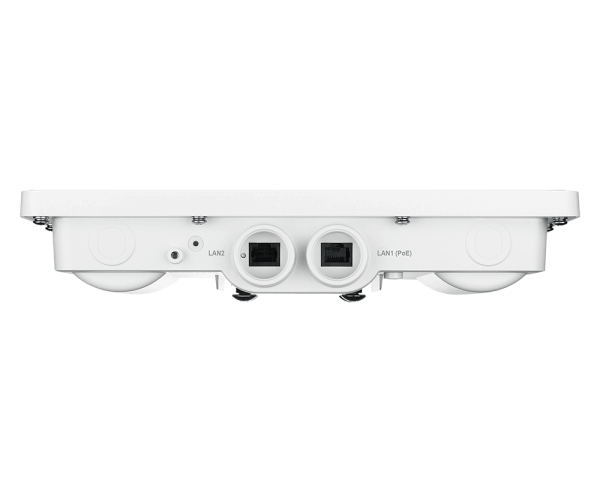

- 2 x Gigabit LAN (One supports PoE)
Standards
- IEEE 802.11a/b/g/n/ac2
- IEEE 802.3i/u/ab
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
- IEEE 802.3af Power over Ethernet
Antennas
- 4 x internal dual-band
- 7 dBi at 2.4 GHz
- 6 dBi at 5 GHz
Operating Frequency3
- 2.4 GHz band: 2.4 to 2.4835 GHz
- 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz
Maximum Output Power
- 2.4 GHz band: 26 dBm
- 5 GHz band: 26 dBm
Data Signal Rate
- 2.4 GHz band: Up to 300 Mbps2
- 5 GHz band: Up to 866 Mbps2
Functionality:
Security
- WPA-Personal
- WPA-Enterprise
- WPA2-Personal
- WPA2-Enterprise
- WEP 64/128-bit encryption
- SSID broadcast disable
- MAC address access control
- Network Access Protection (NAP)
- Internal RADIUS server
Network Management
- D-Link Nuclias Connect
- Telnet
- Secure Telnet (SSH)
- Web (HTTP)
- Secure Socket Layer (SSL)
- Traffic control
- SNMP v1/v2c/v3
LEDs
- Power/status
Others
- Fast Roaming Support with 802.11k,
- Passpoint Hotspot 2.0 Support
- 802.11v, and 802.11r
Physical:
Dimensions
- 277 x 240 x50 mm (10.91 x 9.45 x 1.97 in)
Weight
- 981 g (2.16 lbs) without mounting base
Power Supply
- External power adapter: 54 V DC +/10%
- IEEE 802.3af PoE
Maximum Power Consumption
- 10.5 W
Temperature Operating
- -60 to 60 °C (-22 to 140 °F)
- Storage: -30 to 65 °C (-22 to 149 °F)
Humidity Operating
- 10% to 90% non-condensing
- Storage: 5% to 95% non-condensing
Meantime Between Failure (MTBF)
- > 30,000 hours
Certifications
- FCC
- IC
- CE5
- C-Tick
- UL
- IP68
