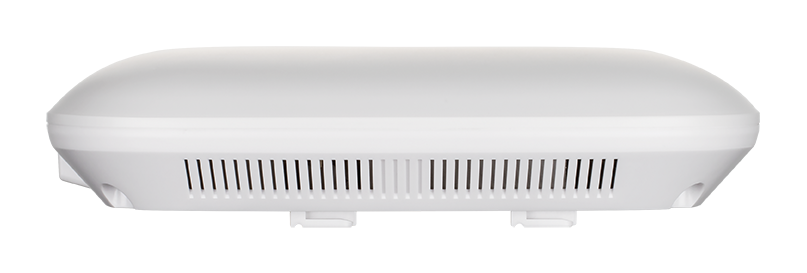

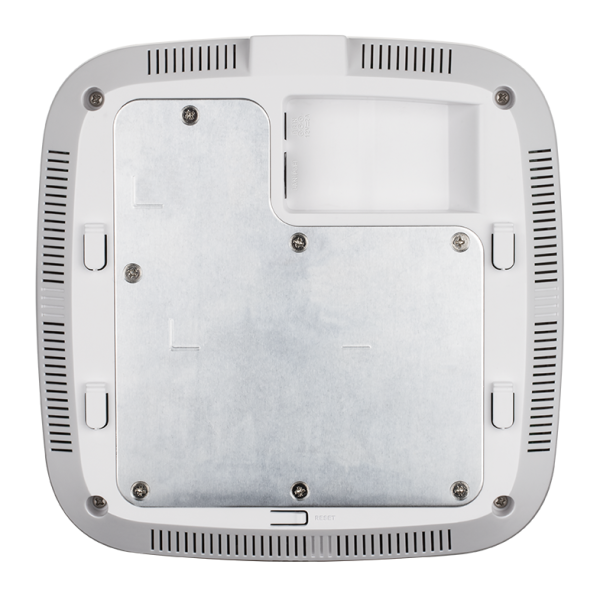

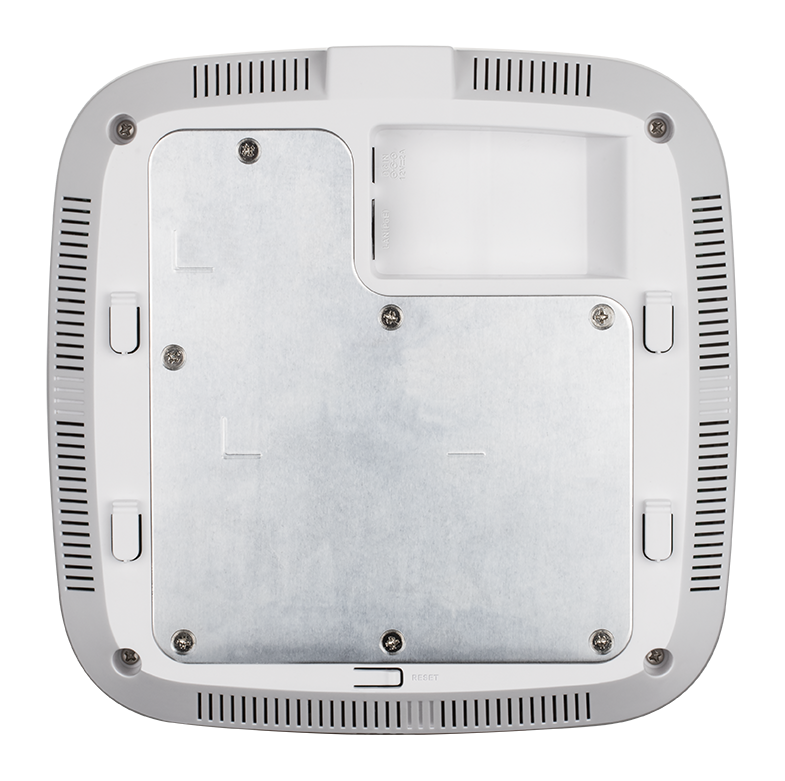

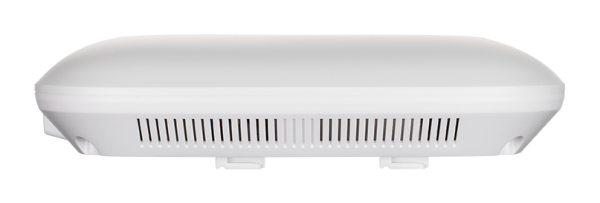

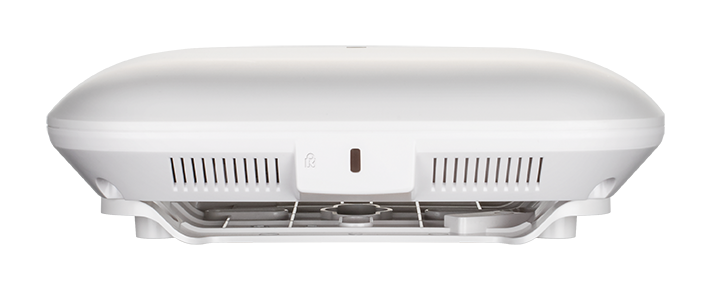

The DAP-2680 Wireless AC1750 Wave 2 Dual-Band PoE Access Point features cutting-edge Wave 2 technology that brings greater speeds, efficiency, and security to your wireless customers. Perfect for small to medium business or enterprise environments. It can be ceiling mounted, wall mounted or placed on a desk. Integrated 802.3at Power over Ethernet (PoE) enables the device to be deployed easily and in more areas, where power outlets are not readily available.
- Features
High-Performance Connectivity
- IEEE 802.11ac Wave 2 wireless1
- Up to 1750 Mbps1 speed
- MU-MIMO with beamforming
- Band steering
- Gigabit PoE-capable LAN port
Multiple Operation Modes
- Access Point, Wireless Distribution System (WDS), WDS with AP, Wireless Client
Extensive Management
- D-Link Nuclias Connect support for centralized and additional configuration options
- Web, SSL, SSH and Telnet management
- SNMP v1, v2c, v3
Trusted Security Features
- WPA/WPA2 Personal/Enterprise
- 64/128-bit WEP
- MAC filter and WLAN partitioning
- Local/POP3/RADIUS/Passcode/LDAP authentication for captive portal
Convenient Installation
- Small form factor design for easy placement
- Supports 802.3at Power over Ethernet for remote installation

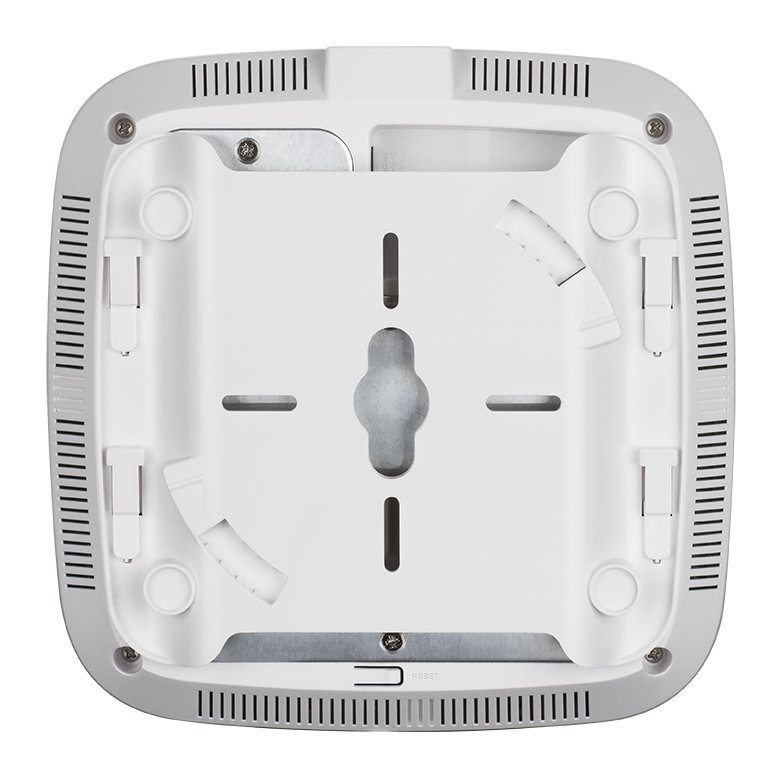

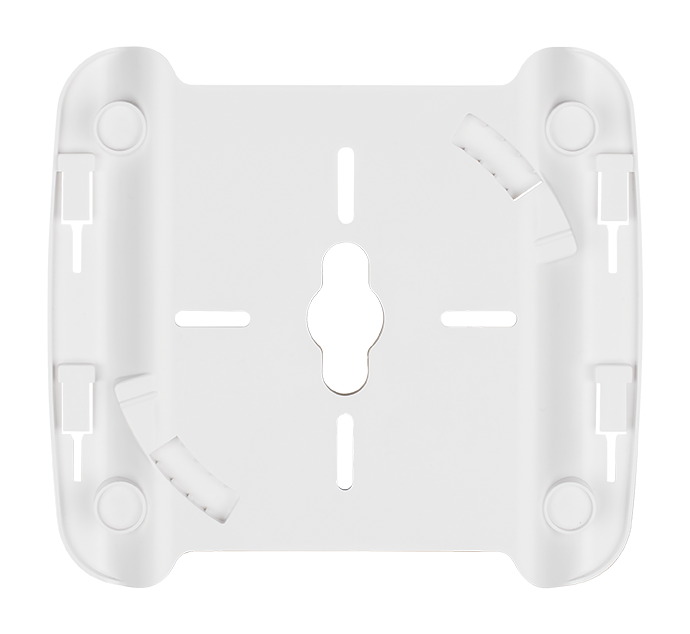

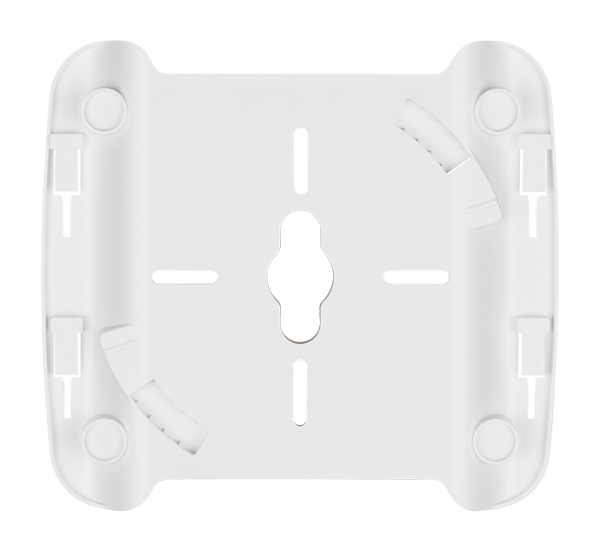

- Wall and ceiling mountable2
Key Features
- Free-to-Download Management Software
- Inexpensive Hardware Controller
- Multi-Tenant & Role-Based Administration
- Intuitive Interface
- Backwards-Compatibility
- Remote Config. & Batch Config.
- License-Free Centralised Management
- Traffic Reporting & Analytics
Technical Specifications
Device Interfaces

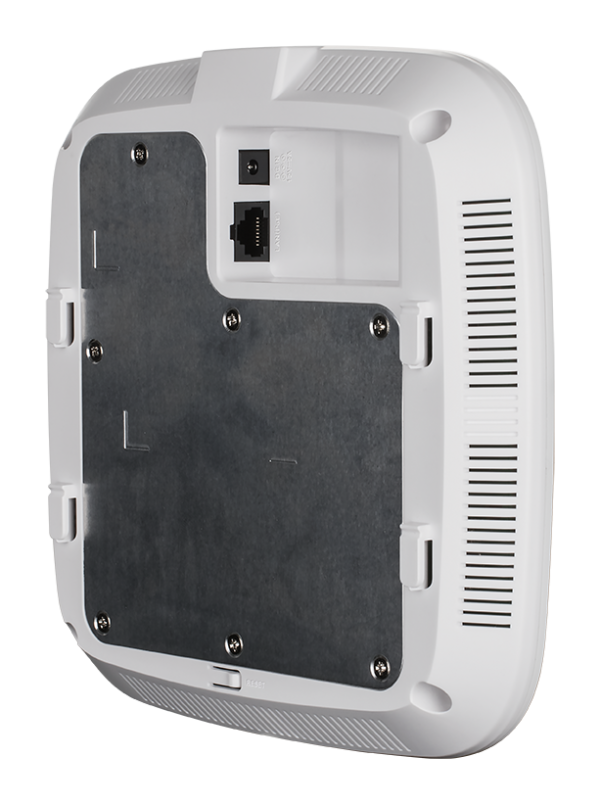

- IEEE 802.11a/b/g/n/ac Wave 2 wireless1 interface • 1 x Gigabit PoE-capable LAN port
Standards
- IEEE 802.11a/b/g/n/ac1
- IEEE 802.3i/u/ab
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
- IEEE 802.3at Power over Ethernet
Antennas
- 3 x internal dual-band antennas • 3.6 dBi at 2.4 GHz, 4.2 dBi at 5 GHz
Operating Frequency3
- 2.4 GHz band: 2.4 to 2.4835 GHz • 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz
Maximum Output Power
- 26.5 dBm for 2.4 GHz • 26.5 dBm for 5 GHz
Data Signal Rate
- 2.4 GHz: Up to 450 Mbps1 • 5 GHz: Up to 1300 Mbps1
Functionality
Security
- WPA-Personal
- WPA-Enterprise
- WPA2-Personal
- WPA2-Enterprise
- WEP 64/128-bit encryption
- SSID broadcast disable
- MAC address access control
- Network Access Protection (NAP)
- Internal RADIUS server
Operating Modes
- Access Point (AP)
- WDS with AP
- WDS/Bridge (No AP Broadcast)
- Wireless Client
Network Management
- Telnet
- Secure Telnet (SSH)
- Web (HTTP)
- Secure Socket Layer (SSL)
- Traffic control
- SNMP v1/v2c/v3
- Nuclias Connect Software
- Nuclias Connect Hub5
LEDs
- Power/status
Physical
Dimensions
- 190 x 190 x 44.8 mm (7.48 x 7.48 x 1.76 in)
Weight
- 580 g (1.28 lbs) without mounting base
- 636.5 g (1.40 lbs) with mounting base
Power Supply
External power adapter: 12 V/2 A (not included) • IEEE 802.3at PoE
Maximum Power Consumption
- 17.53 W
Temperature
Operating: 0 to 40 °C (32 to 104 °F) • Storage: -20 to 65 °C (-4 to 149 °F)
Humidity
- Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing
Meantime Between Failure (MTBF)
- > 30,000 hours
Certifications
- FCC
- CE 4
- UL
