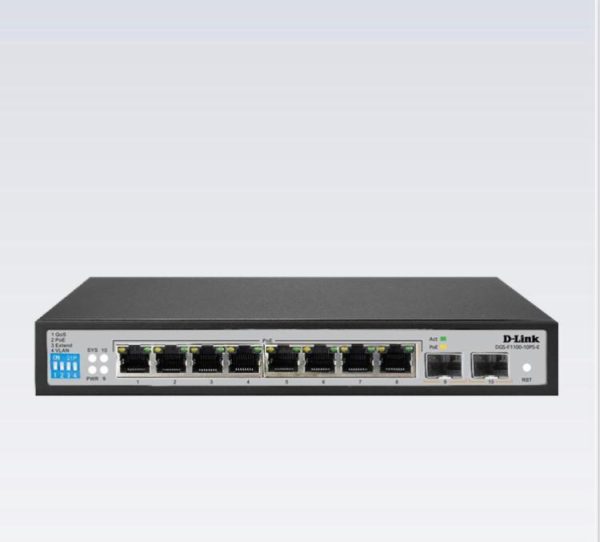

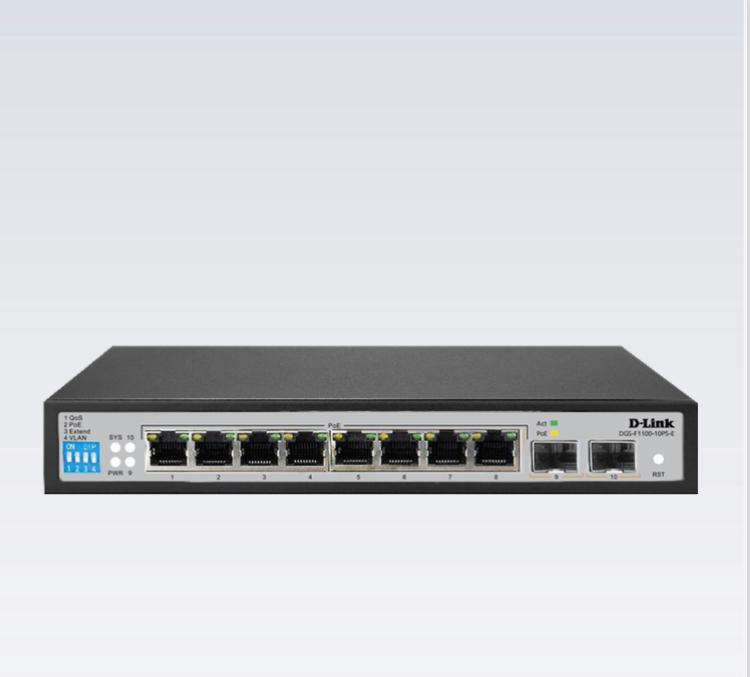

The D-Link DGS-F1100-10PS-E is a 10 port Smart Managed Gigabit Switch with 8/10/100/1000 Mbps PoE ports, 2 Gigabit SFP uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras. It supports both IEEE 802.3at and IEEE 802.3af PoE protocol. With a total PoE budget of 96 watts ,allowing users to attach an IEEE 802.3af-compliant device to the DGS-F1100-10PS-E without requiring additional power.

Features:

Superior connectivity

• 8/10/10O/1000 Mbps PoE ports
•  2 Gigabit SFP Ports
• 96 watts available for PoE
•  Flow control for protection against data loss
• Maximum distance of 250m

Standards

• IEEE 802.3 10BASE-T Ethernet (twist-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted pair copper)
•  IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
•  IEEE 802.3z 1000 BASE-X (fiber-optic)
•  IEEE 802.3af Power over Ethernet
•  IEEE 802.3at Power over Ethernet

Easy to Use

•  Plug-and-play installation
•  IEEE 802.3x Flow Control
•  Auto MDI I MDIX crossover for all ports

Technical Specifications

General:

Network Interface

• 8 10/100/1000 Mbps PoE RJ45 port (port1~port8)
• 2Gigabit SFP Ports

DIP Switches

• VLAN
• Extend
• PoE
• QoS

Transmission Rate

• 10/100/1000Mbps Each port supports MDI / MDIX auto-flip and auto- negotiation
• Network interface: 10BASE-T or 100BASE-TX, 1000 BASE-T Ethernet RJ-45 port

Protocols and Standards

• IEEE802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE802.3ab 1000 BASE-T
• IEEE802.3z 1000 BASE-X
• IEEE802.3x Flow Control
• IEEE 802.3af/at standard

Functionality:

Switching Capacity

• 20 Gbps

Packet Forwarding

• 14.88 Mpps

LED’s Indicator

• Power
• SYS
• LINK/ACT
• PoE

Budget

• 96W

MAC Address Table

• 8K Entries

Power

• External Power Adapter: 100-240~50/60Hz, 52V/1.85

Lighting Protection

• 6KV

Physical:

Physical Characteristics

• Dimensions (LxWxH): 228 x 121 x 37mm
• Weight: 1.25kg

Environmental Parameter

• Operating Temperature: O to 40°C (32 to 104°F)
• Storage Temperature: -40° to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 95% non-condensing

Software Specifications:

Protocol Standard

• IEEE 802.3: Ethernet Media Access Control (MAC) Protocol
• IEEE 802.3i: 10BASE-T Ethernet
• IEEE 802.3u: 100BASE-TX Fast Ethernet
• IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
• IEEE 802.3z: 1000BASE-X Gigabit Ethernet (fiber)
• IEEE 802.3ad: Standard method for performing link aggrega�on
• IEEE 802.3x: flow control
• IEEE 802.1p: LAN Layer 2 Qos/Cos protocol for traffic priority (multicast filtering)
• IEEE 802.1q: VLAN
• IEEE 802.1d: STP Spanning tree
• IEEE 802.1s: MSTP Spanning tree
• IEEE 802.1w: RSTP Spanning tree
• IEEE 802.3af
• IEEE 802.3at

DHCP

• DHCP Snooping

VLAN

• 4K VLAN
• 802.1Q VLAN, MAC VLAN ,IP VLAN
• Voice VLAN

MAC Address Table

• Comply the IEEE 802.1d standard
• MAC address learning and aging automatically
• Static, dynamic

Security

• Password protection
• Based on the port number, IP address, MAC address restrictions on user access
• HTTPS, SSL V3, TLS V1, SSH V1/V2
• IP-MAC-PORT ternary binding
• IP source protection, DoS protection
• DHCP Snooping, DHCP attack protection
• 802.1X, AAA
• Port isolation
• CPU protection

POE Management

• POE power limit
• POE chip status view
• PoE port priority
• PoE power supply time period

Access Control (ACL)

• L2 (Layer 2) ~ L4 (Layer 4) packet filtering
• Port mirroring
• Port redirection
• Flow rate limiting
• QoS re-marking

Quality of Service (QoS)

• 8 port queue
• Port priority
• 802.1p priority
• DSCP priority
• SP
• WRR
• WFQ Priority scheduling algorithm

Spanning Tree

• STP(IEEE 802.1d)
• RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol root bridge protection
• TC protection
• BPDU protection

Multicast

• IGMP v1/v2 Snooping
• Fast leave mechanism
• Packet statistics, and unknown multicast discards

Storm Suppression

• Multicast suppression
• Broadcast suppression
• Unknown unicast suppression

Link Aggregation

• Static aggregation
• Dynamic aggregation
• IP, MAC, and hybrid load balancing modes
• Up to 32 aggregation groups

IPv6

• IPv6 Ping, IPv6 Tracert, IPv6 Telnet
• IPv6 SSH, IPv6 SS

Management and Maintenance

• WEB network management (HTTP, HTTPS, SSL V3)
• CLI (Telnet, SSH V1/V2)
• SNMP V1/V2/V3
• LLDP, RMON
• IP source protection, DoS protection CPU monitoring, memory monitoring
• System log, grading warning
• Ping, Tracert detection, cable detection
