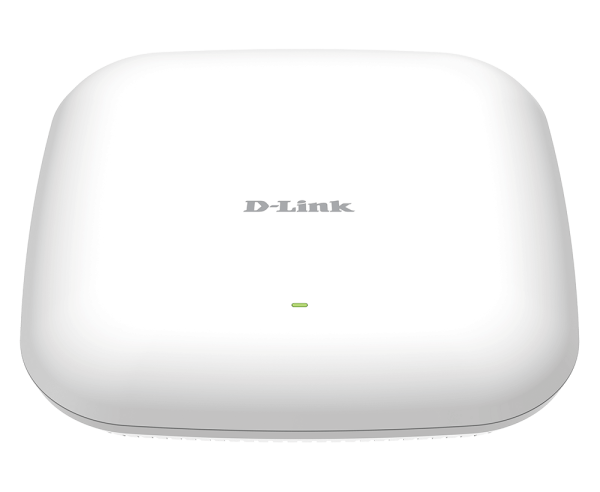

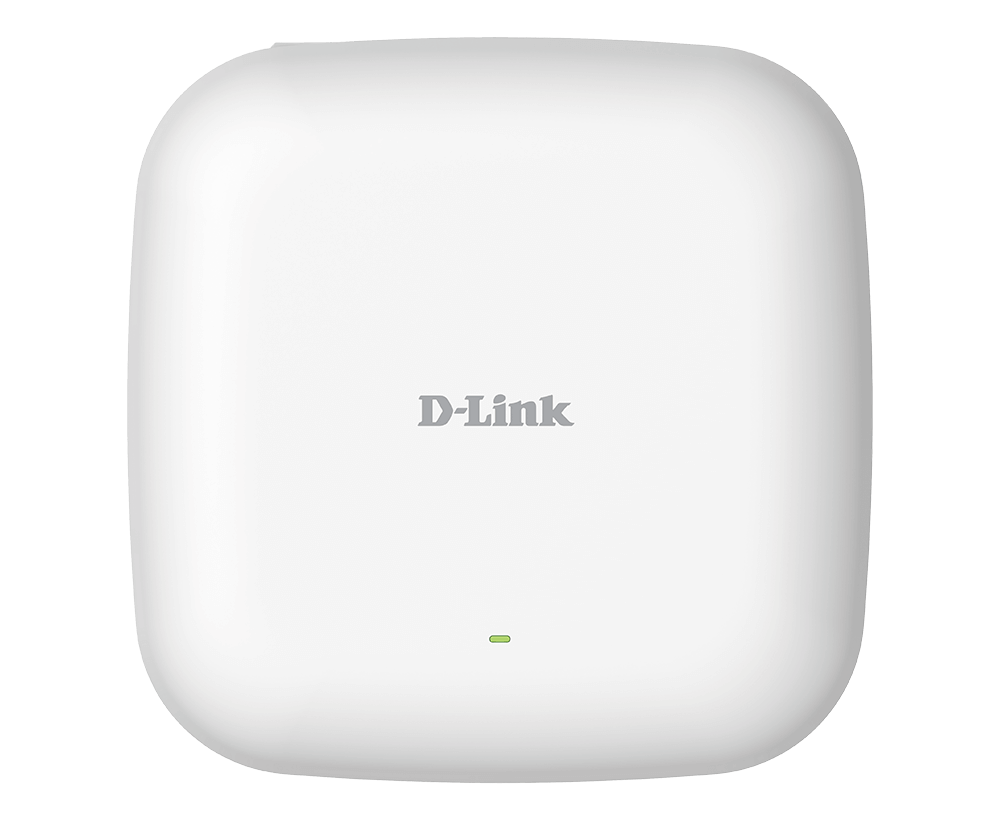

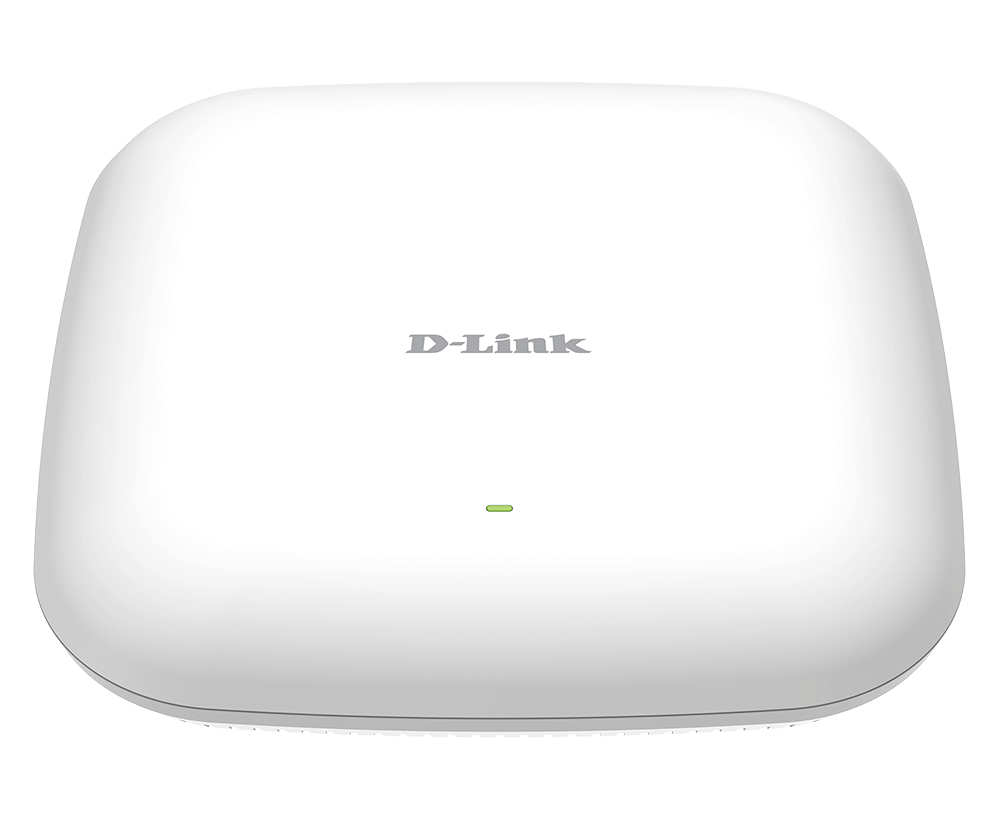

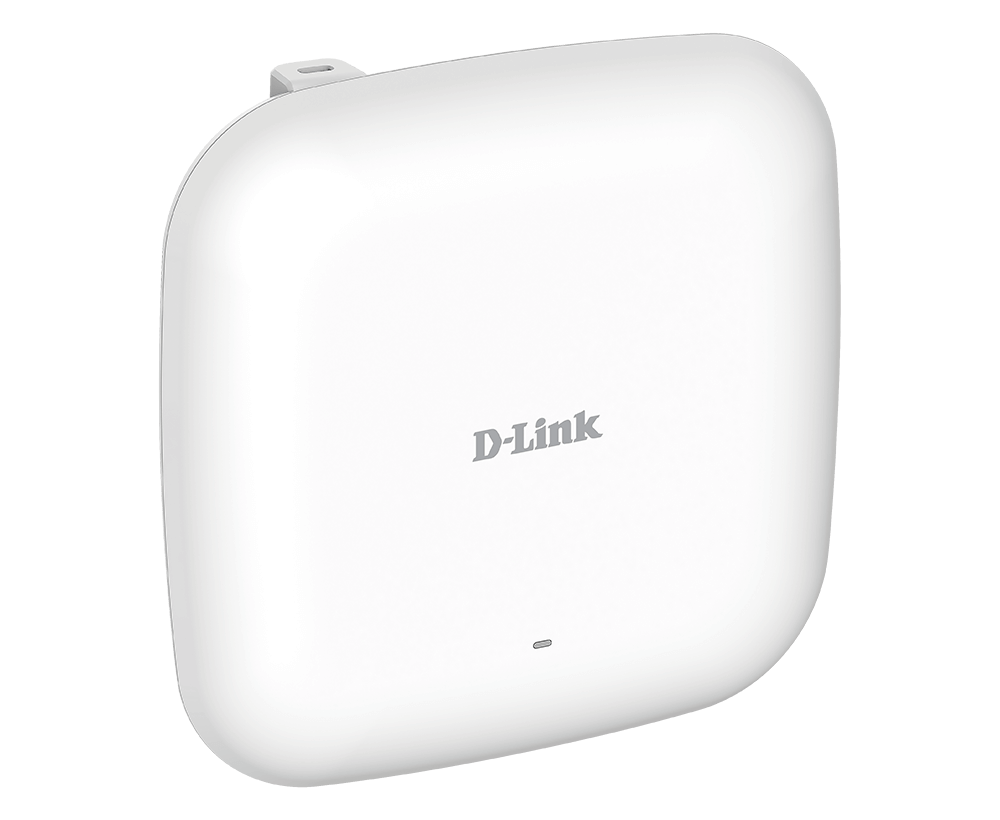

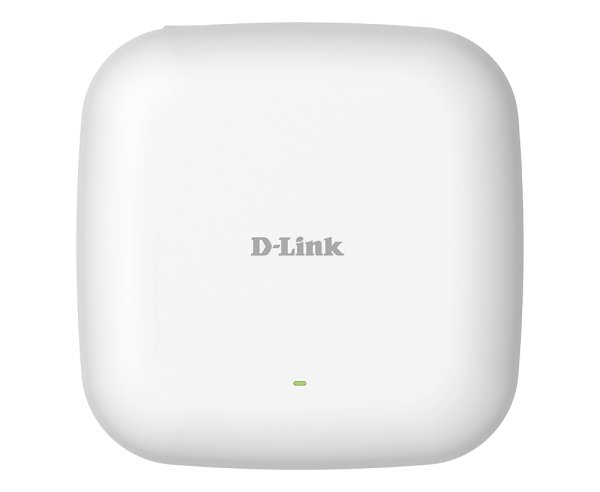

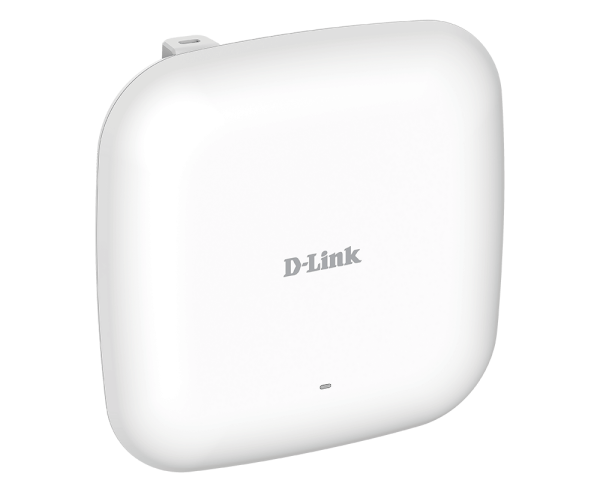

DAP-X2810 is on hand to provide unbeatable speeds, greatly increased capacity and interference-free coverage, paired with easy management by Nuclias Connect

Features

• Easy to manage with D-Link’s free centralized management software based
  solution, Nuclias Connect
• Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards
•  MU-MIMO slices through congestion, reducing wait time for all users
• Superior throughput with dual-band Wi-Fi offers high transfer speeds
• Coverage is shared more efficiently over more users with Airtime Fairness
• Band Steering intelligently manages users, pushing them onto the higher radio frequency when possible
• One PoE Gigabit LAN port offers expansive backhaul to your wired network, eliminating bottlenecks at the AP
• Support for Power of Ethernet 802.3at means less wires, for cleaner and easier deployment
• MAC Address Filtering and WLAN Partitioning ensure ultimate control of your network’s access
• Captive Portal with industry-standard authentication for enhanced access management
• Works as a standalone AP or as part of a centralized, scalable multi-device deployment

Technical Specifications:

General:

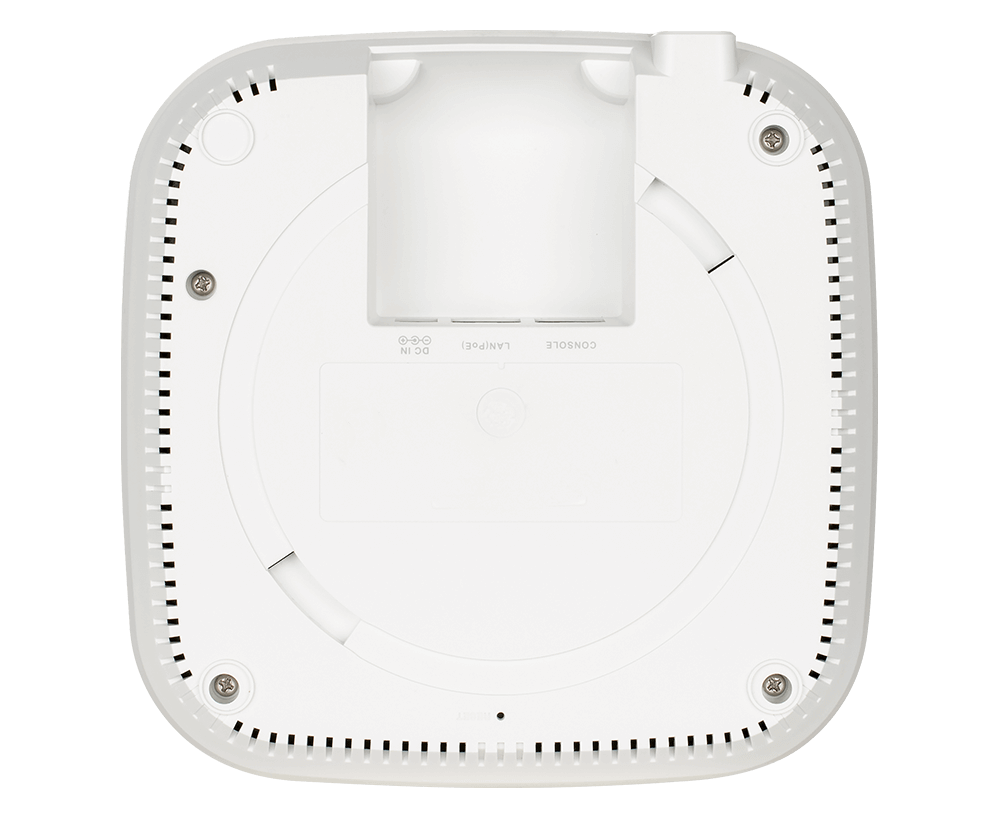

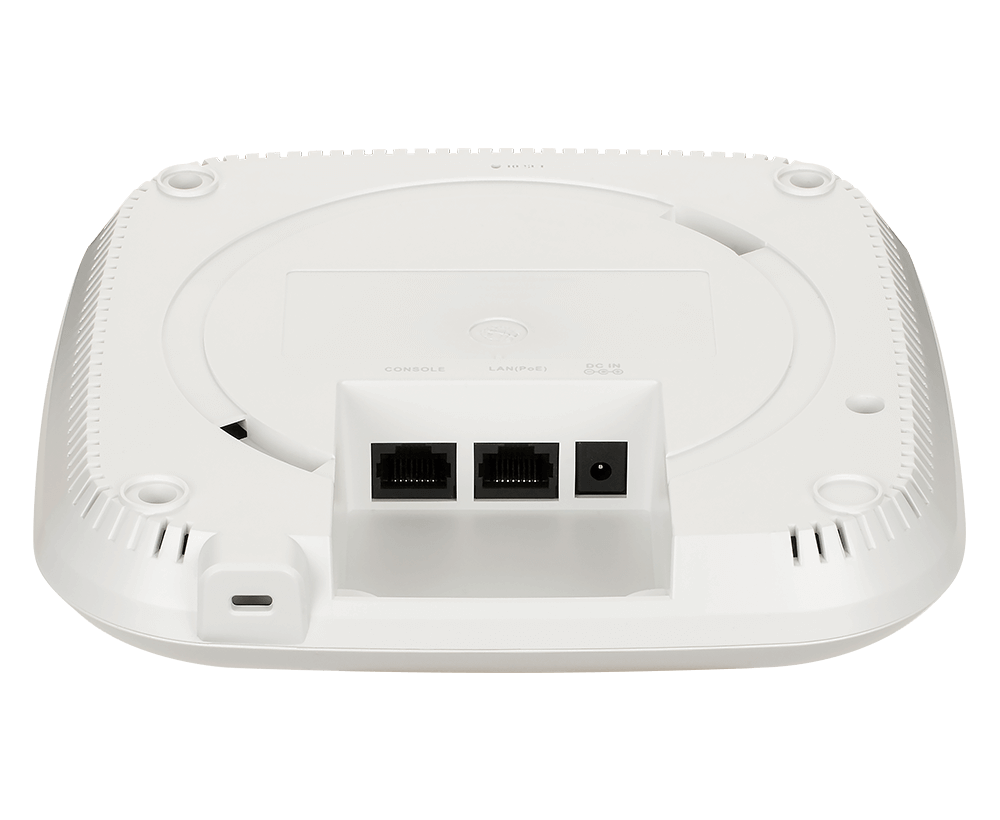

Device Interfaces

• 1 x RJ45 console port, 1 x 10/100/1000 Ethernet
• (PoE) LAN, factory reset, power input

LEDs

• Power/Status

Antennas

• 2 x dual-band internal antennas

Antenna Gain

• 3.2 dBi (2.4 GHz), 4.3 dBi (5 GHz)

Maximum Output Power(EIRP)

• 20 dBm (2.4 GHz), 22 dBm (5 GHz)

Data Signal Rate

• Up to 1800 Mbps

Functionality:

Standards

• IEEE 802.11a/b/g/n/ac/ax
• IEEE 802.3u/ab
• IEEE 802.3az
• Energy-Efficient Ethernet (EEE) EEE 802.3at PoE

Operating Frequency

• 2.4 – 2.4835 GHz, 5.15 – 5.30 GHz

Security Protocol

• WPA/WPA2/WPA3™ Personal/Enterprise, WEP
• 64/128-bit, SSID broadcast disable
• MAC address access control
• internal RADIUS server

Power/Status

• Software

Network Management

• Web (HTTP)
• Secure Socket Layer (SSL)
• Traffic control
• D-Link Nuclias ConnectPhysical:

Power Supply

• 12 V / 2.5 A (optional power adapter), IEEE 802.3at PoE

Max. Power Consumption

• 19.44 W

MTBF

• > 30,000 hours

Operating Temperature

• 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)

Storage Temperature

• -20˚C to 65 ˚C (-4 ˚F to 149˚F)

Operating Humidity

• 10% to 90%

Storage Humidity

• 5% to 95%

Weight

• 477.4 g (1.05 lb)

Dimensions

• 170 x 170 x 28 mm (6.69 x 6.69 x 1.1 in)

Certifications

• CE
• FCC
