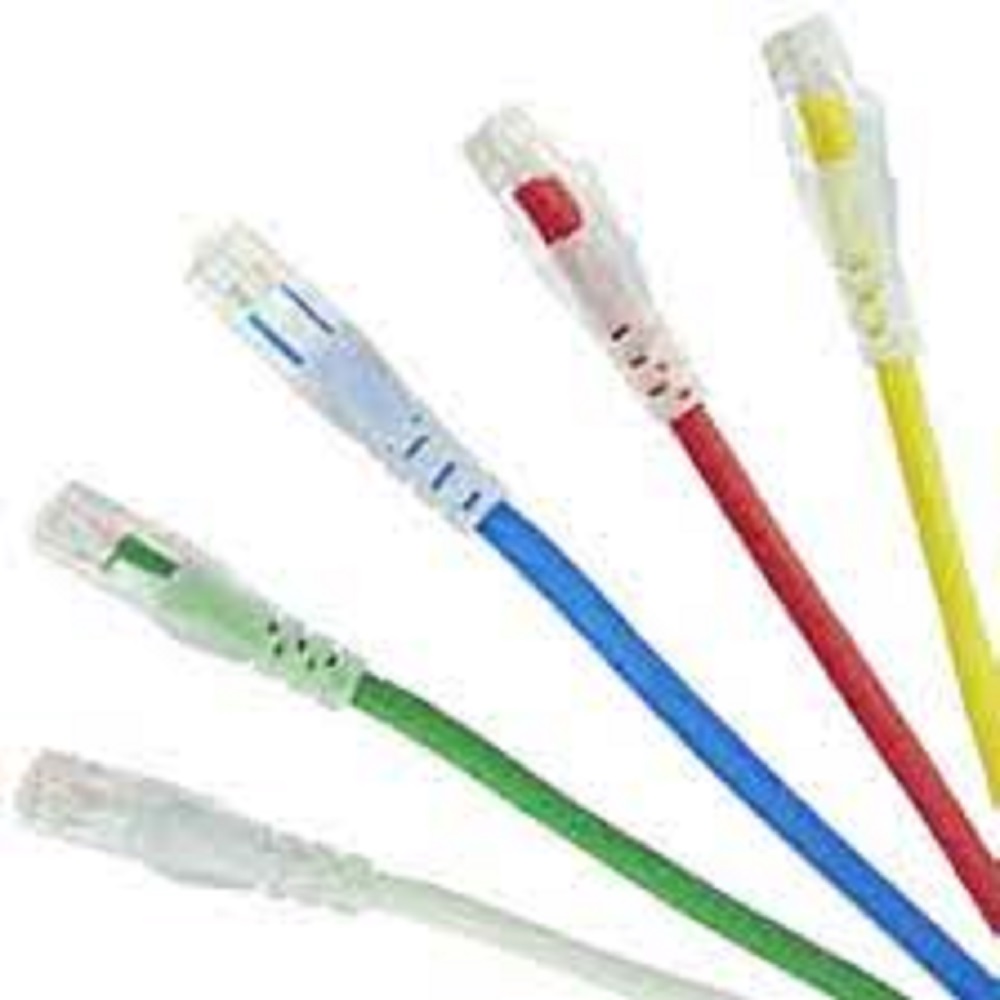

Adopt LINKBASIC Cat6A stranded cable and Cat6A RJ45 modular plugs, the performance of LINKBASIC patch cable can meet or exceeds all requirements for Cat6A standard . Compatible with LINKASIC Cat6A keystone jacks and Cat6A 24 port patch panel, guarantees 550MHZ broadband transmission.
FEATURES
- Unique design of Cat6A RJ45 modular plugs and line pair decrease cross talk and increase allowance.
- Excellent attenuation and crosstalk continuity.
- Meet or exceed the requirement for UTP system.
- 100% tension test.
- Allow RJ45 plugs to provide high-density solution.
APPLICATION
- Communication outlet.
- Concentration point.
- Patch panel.
- Equipment termination.
MECHANICAL CHARACTERISTIC
- Durability: 1000 plugging.
- Contact: phosphor bronze with 50µ’’ gold plating.
- Nominal outer diameter: 5.6mm.
- Minimum bending radius: 22.4mm.
PHYSICAL CHARACTERISTICS
- Conductor: 23 AWG bare copper.
- Insulation material: PE.
- Outer shield: AL Foil.
- Structure: 4 twisted pair, Cross Filter.
- Jacket for RJ45 plug: PVC or LSZH.
- Material for RJ45 plus: PC polycarbonate.
- Flame test: CM or CMR.
ELECTRICAL CHARACTERISTICS
- Dielectric strength:
- 1,000V RMS 60Hz/1min.
- Voltage Class(maximum):
- 150VAC.
- Rated current(maximum):
- 1.5A.
- Insulation resistance(minimum):
- 500megohm.
- Contact resistance(maximum):
- 10milliohm.
