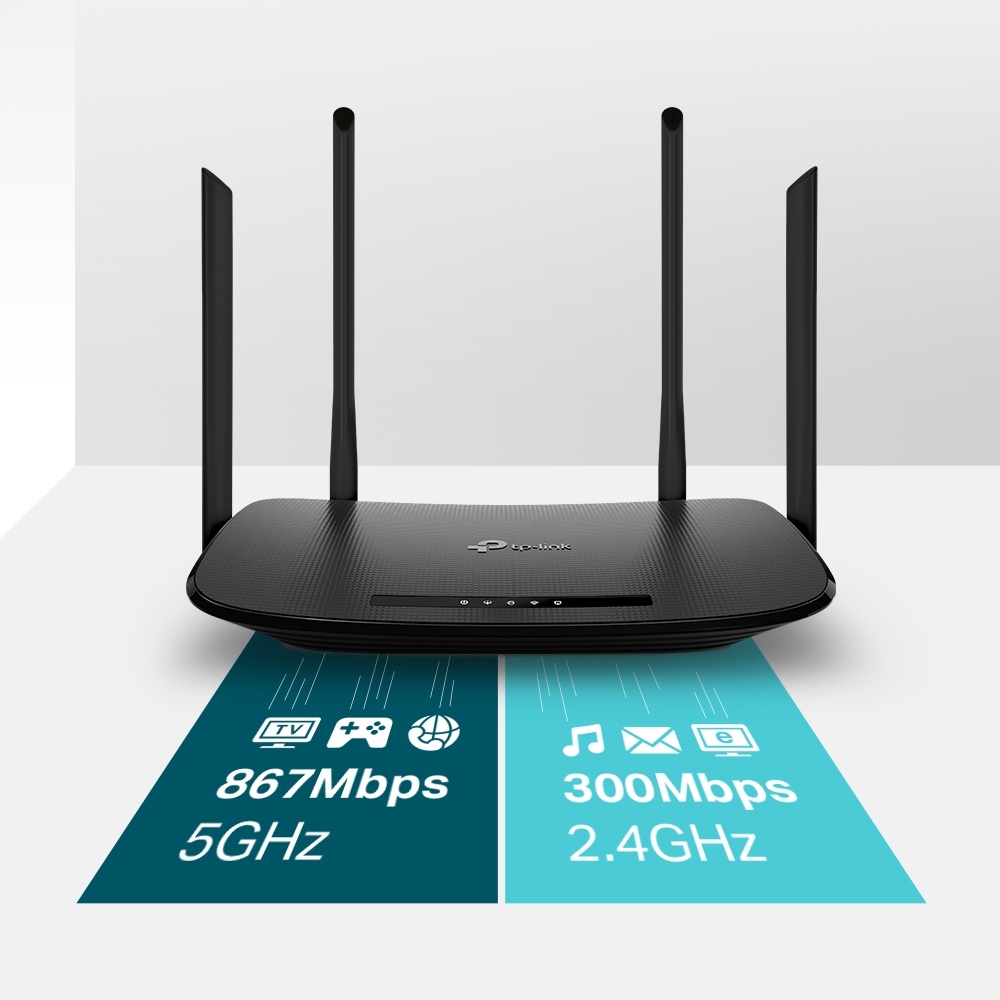

As a powerful DSL modem router, the Archer VR300 makes full use of its Wi-Fi abilities by providing combined dual band Wi-Fi speeds of up to 1200Mbps. 300Mbps on 2.4GHz is perfect for everyday surfing and emailing, while 867Mbps on 5GHz provides lag-free HD streaming and gaming.
Hardware Features:

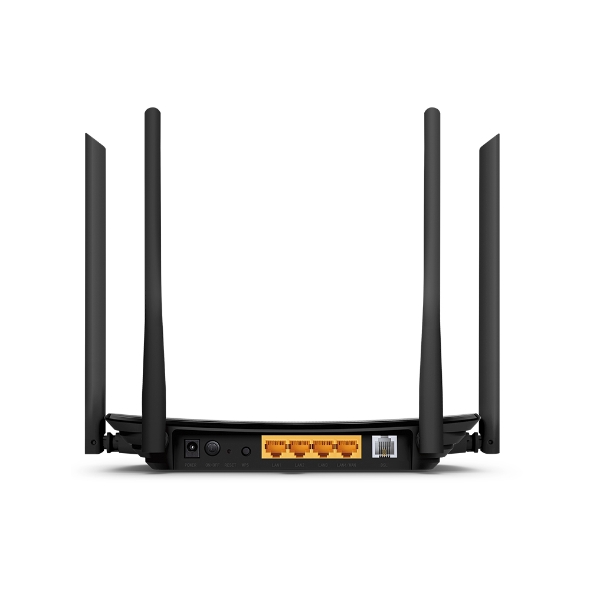

Interface
- 3 10/100 RJ45 LAN Ports
- 1 10/100 RJ45 LAN/WAN Port
- 1 RJ11 Port
Button
- WPS Button
- Power On/Off Button
- Reset Button
Power Supply
- 12V/1A
VDSL2 Standards
- ITU G.993.2, Up to 17a pro¬le (POTS)
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP)
ADSL Standards
- Full-rate ANSI T1.413 Issue 2,
- ITU-T G.992.1(G.DMT),
- ITU-T G.992.2(G.Lite),
- ITU-T G.994.1 (G.hs),
- ITU-T G.995.1
ADSL2 Standards
- ITU-T G.992.3 (G.DMT.bis)
- ITU-T G.992.4 (G.lite.bis)
ADSL2+Standards
- ITU-T G.992.5
Dimensions (W x D x H)
- 230*144*37 mm
Antenna Type
- 4 fixed external antennas
Wireless Features:
Wireless Standards
- IEEE 802.11a/n/ac 5GHz,
- IEEE 802.11b/g/n 2.4GHz
Wireless Speeds
- 867Mbps at 5GHz
- 300Mbps at 2.4GHz
Transmit Power
- 2.4GHz <20dBm(EIRP)
- 5GHz <23dBm(EIRP)
Wireless Functions
- Access Point / Wireless Bridge
- Wireless Enable\Disable
- SSID Broadcast Enable\Disable
Wireless Security
- WEP
- WPA/WPA2
- WPA-PSK/WPA-PSK2 encryptions
- QSS(WPS)
Software Features:
Security
- NAT Firewall
- Access Control
- IP and MAC Address Binding

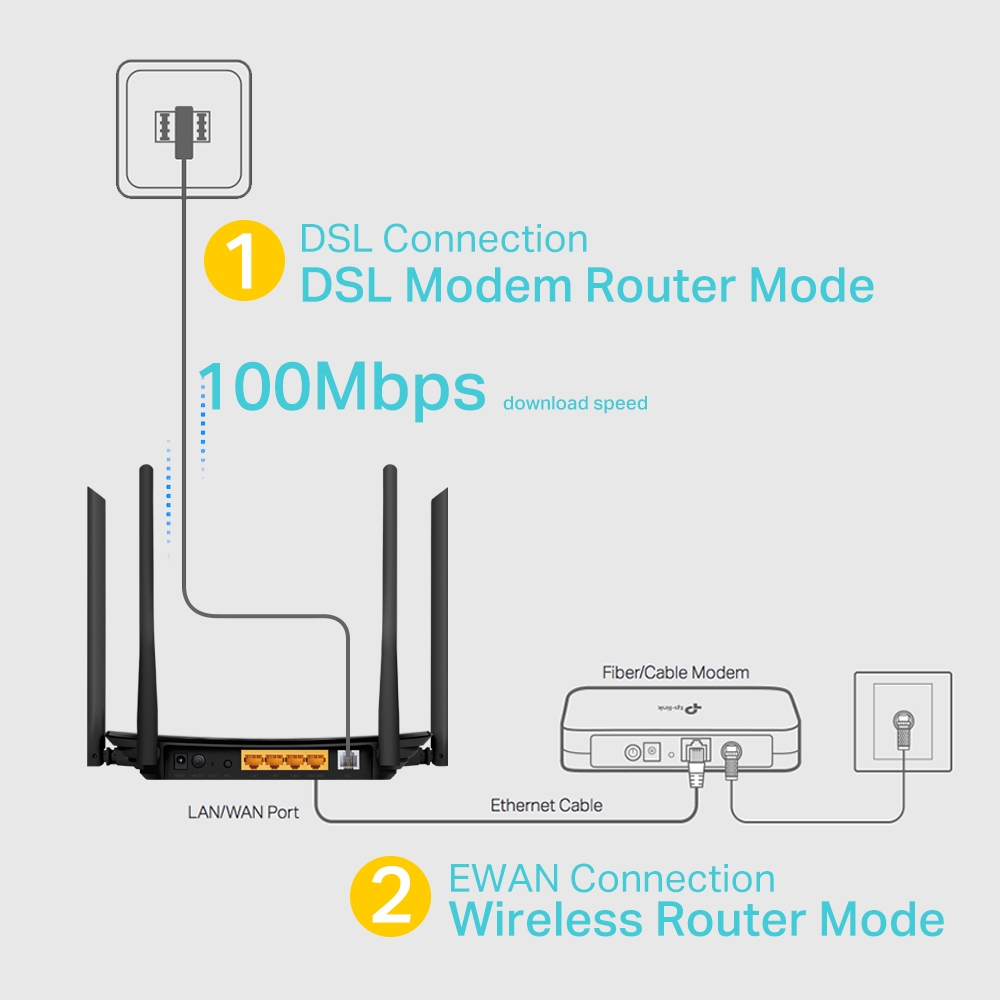

Operating Modes
- VDSL/ADSL Modem Router
- Wireless Router
Management
- Web Based Configuration(HTTP)
- Remote management,
- Command Line Interface
- SSL for TR-069
- SNMP v1/2c
- Web Based Firmware
- Upgrade
- Diagnostic Tools
DHCP
- Server
- Client
- DHCP Client List
- Address Reservation
- DHCP Relay
Port Forwarding
- Virtual Server
- Port Triggering
- DMZ
- ALG
- UPnP
Dynamic DNS
- DynDns
- NO-IP
VPN-Pass Through
- PPTP
- L2TP
- IPSec Passthrough
Protocols
- Supports IPv4 and IPv6
ATM/PPP Protocols
- ATM Forum UNI3.1/4.0
- PPP over ATM (RFC 2364)
- PPP over Ethernet (RFC2516)
- IPoA (RFC1577/2225)
- MER\IPoE (RFC 1483Routed)
- Bridge (RFC1483 Bridge)
- PVC – Up to 8 PVCs
Advanced Features
- Parental Control
- Network Address Translation(NAT)
- Port Mapping(Grouping)
- Static Routing
- DNS Relay
- DDNS
- IGMP V1/V2/V3
Guest Network
- 2.4GHz guest network
- 5GHz guest network
Others
Certification
- CE
- RoHS
- RCM
Package Contents
- AC1200 Wireless VDSL/ADSL Modem Router Archer VR300
- External Splitter
- RJ11 DSL Cable
- RJ45 Ethernet Cable
- Power Adapter
- Quick Installation Guide
System Requirements
- Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
- Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
- Subscription with an Internet Service Provider (for Internet access)
Environment
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
