- Upgrade Your Desktop with Advanced AC Wi-Fi
Specifications
WLAN Features
Wireless Standards: IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Signal Rate:
5 GHz:
- 11ac: Up to 433 Mbps(dynamic)
- 11n: Up to 200 Mbps(dynamic)
- 11a: Up to 54 Mbps(dynamic)
2.4 GHz:
- 11n: Up to 200 Mbps(dynamic)
- 11g: Up to 54 Mbps(dynamic)
- 11b: Up to 11 Mbps(dynamic
Reception Sensitivity:
5GHz:
- 11ac HT80:-59.0dBm
- 11n HT40:-68.0dBm
- 11a 54Mbps:-73.0dBm
- 11a 6Mbps:-90.0dBm
2.4GHz:
- 11n HT40:-70dBm
- 11g 54Mbps:-75dBm
- 11b 11Mbps:-87dBm
Transmit Power:
- 5GHz:18dBm(FCC)/23dBm(CE)(EIRP)
- 2.4GHz:18dBm(FCC)/20dBm(CE)(EIRP)
- Wireless Modes: Infrastructure mode
- Wireless Security: WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE
- Modulation Technology: DBPSK, DQPSK, CCK, OFDM
Hardware
- Interface: PCI Express

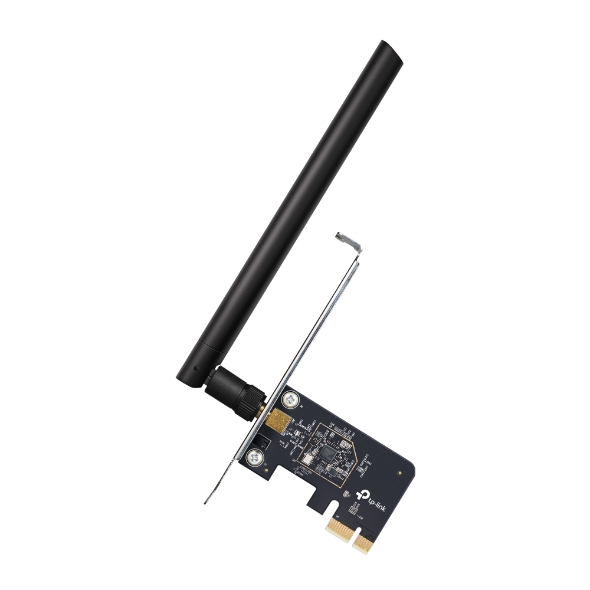

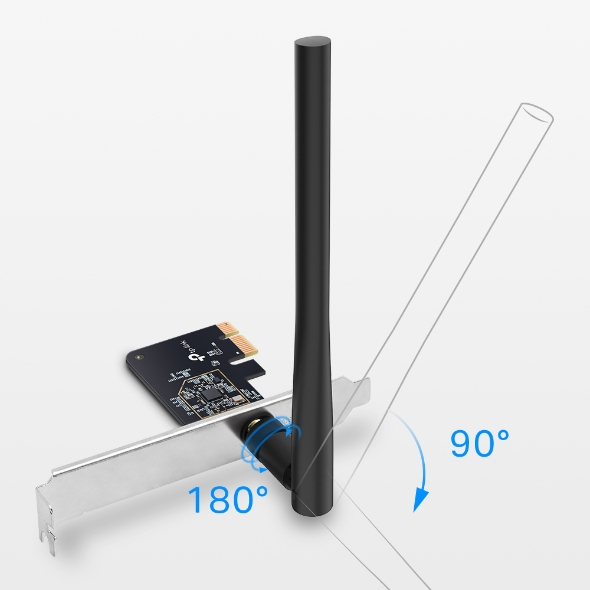

- Antennas: 1 Detachable External Antenna
- LED: Status
- Dimensions: 4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm
Package Contents

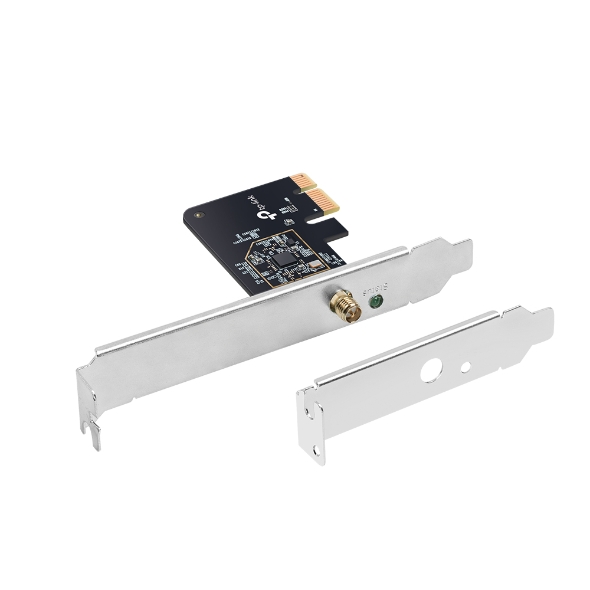

- AC600 Wireless Dual Band PCI Express Adapter Archer T2E
- Low-Profile Bracket
- Quick Installation Guide
- Resource CD
Certification
- FCC, CE, RoHS
System Requirements
- Windows 10§
Environment
- Operating Temperature: 0℃~40℃ (32℉ ~104℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
